LH Side

  1. Disconnect battery ground cable.

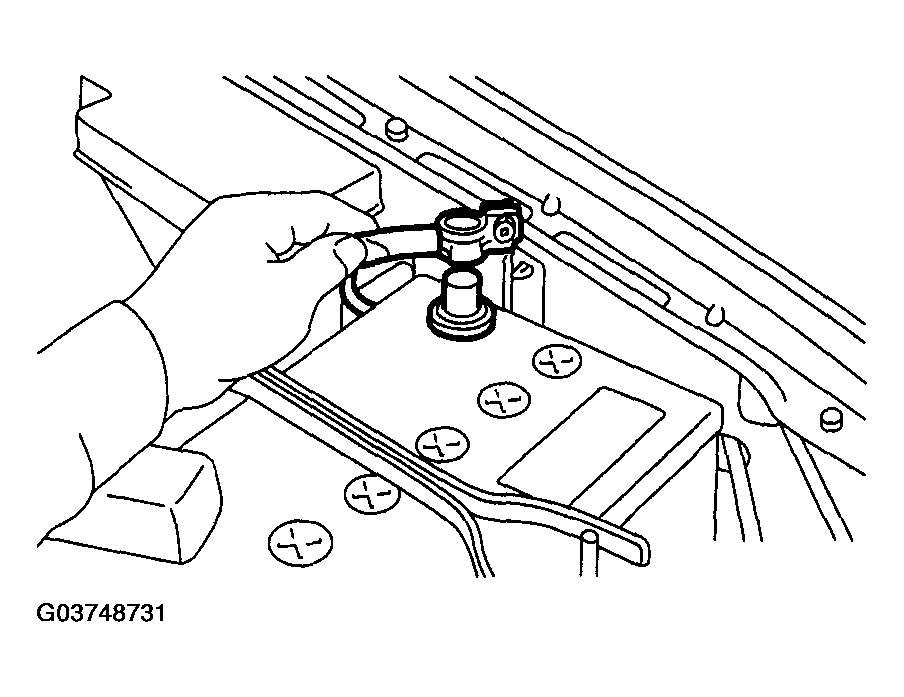

    Fig 1: Disconnecting Battery Ground Cable
    G03748731Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect washer motor connector.

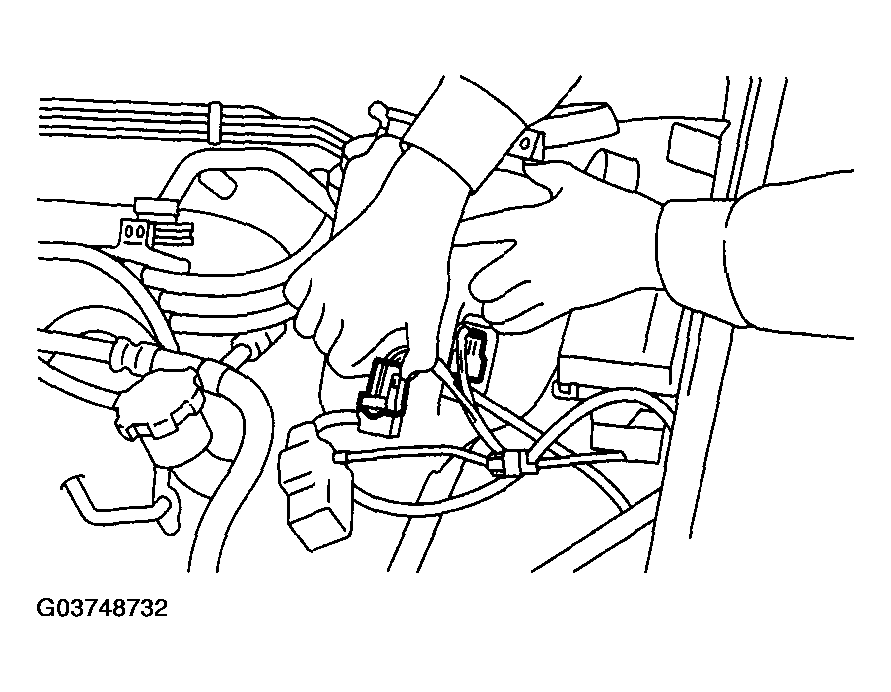

    Fig 2: Disconnecting Washer Motor Connector
    G03748732Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
  4. Remove the two bolts which hold the washer tank, then take the tank away from the working area.

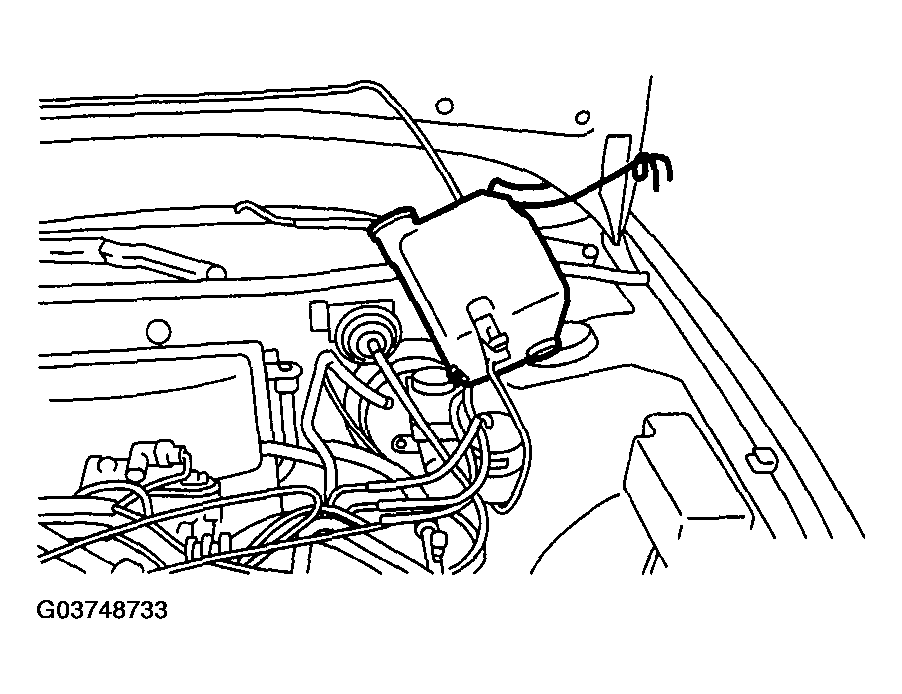

    Fig 3: Identifying Rear Window Glass Washer Hose From Washer Motor
    G03748733Courtesy of SUBARU OF AMERICA, INC.
  5. Remove spark plugs cord by pulling boot, not cord itself.

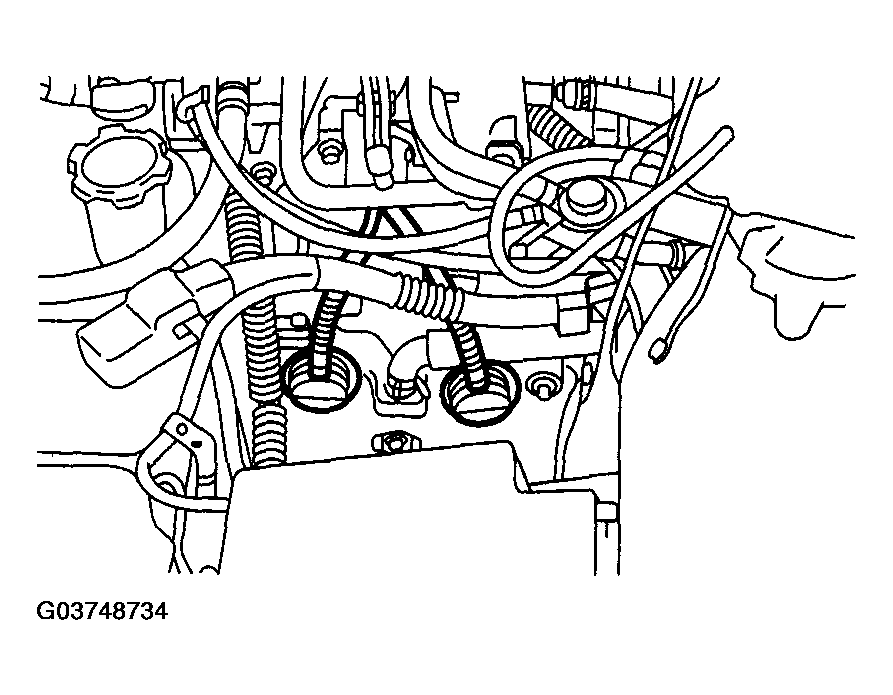

    Fig 4: Removing Spark Plugs Cord By Pulling Boot
    G03748734Courtesy of SUBARU OF AMERICA, INC.
  6. Remove spark plug with the spark plugs socket.

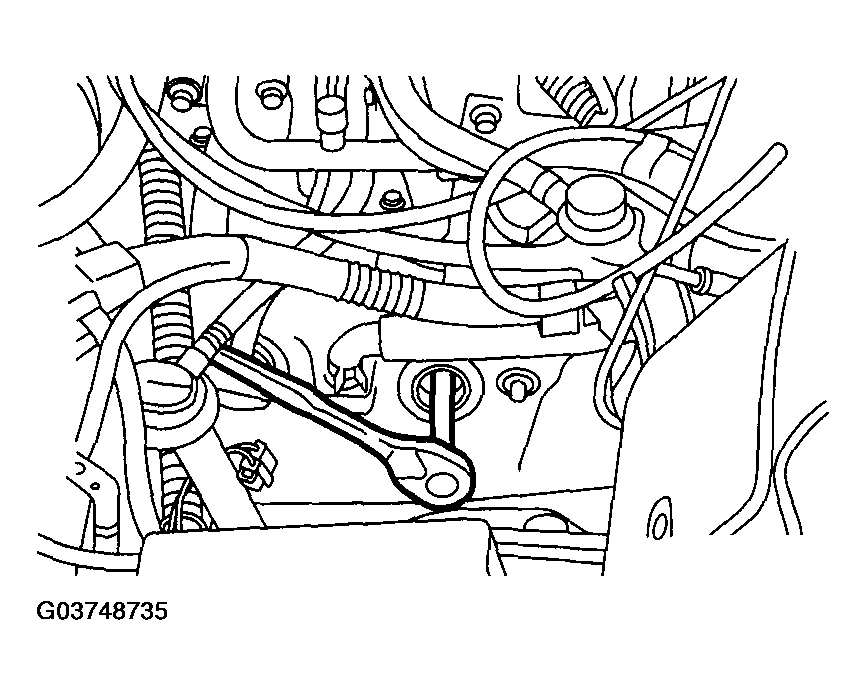

    Fig 5: Removing Spark Plug With Spark Plugs Socket
    G03748735Courtesy of SUBARU OF AMERICA, INC.
