Brake Line: Inspection
- Check scratches, swelling, corrosion and/or traces of fluid leakage on brake hoses or pipe joints.
- Check the possibility of adjacent parts interfering with brake pipes/hoses during driving, and loose connections/clamps.
- Check any trace of fluid leakage, scratches, etc. on master cylinder, wheel cylinder and pressure control valve.
NOTE:
- When the brake fluid level in the reservoir tank is lower than the specified limit, the brake fluid warning light on the combination meter will come on.

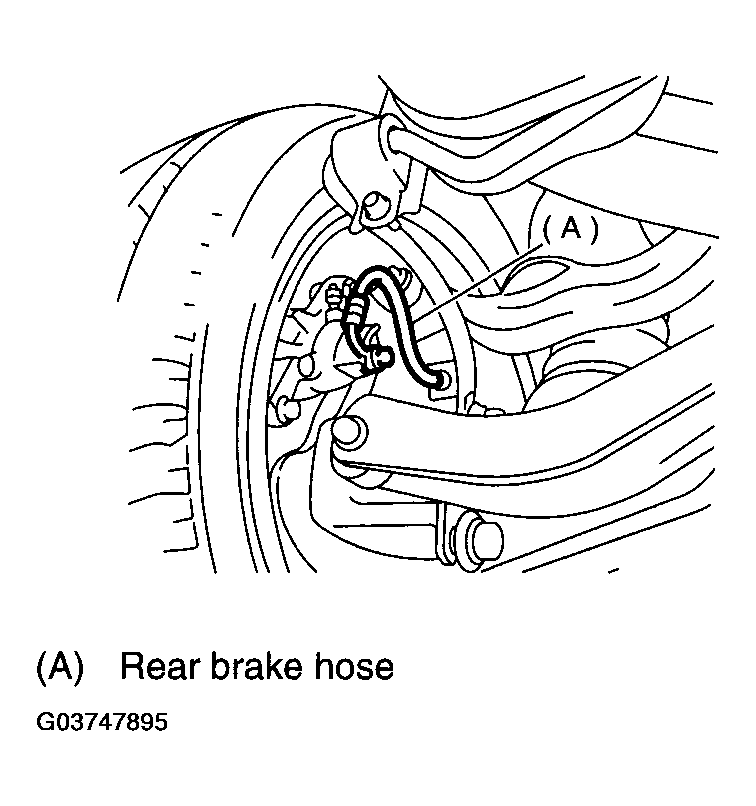

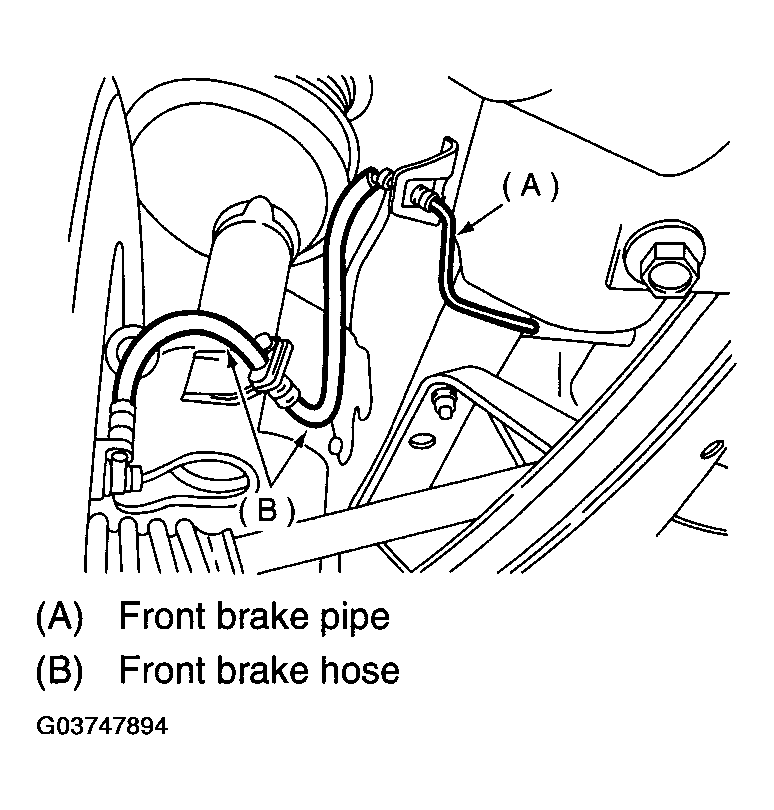

- Visually check brake hose (using a mirror where it is difficult to see) for any damage.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
