Front Stabilizer: Installation

CAUTION: When self-locking nut is removed, replace with a new one.

Install in the reverse order of removal.
NOTE:
- Install bushing (on front crossmember side) while aligning it with paint mark on stabilizer.
- Ensure that bushing and stabilizer have the same identification colors when installing.

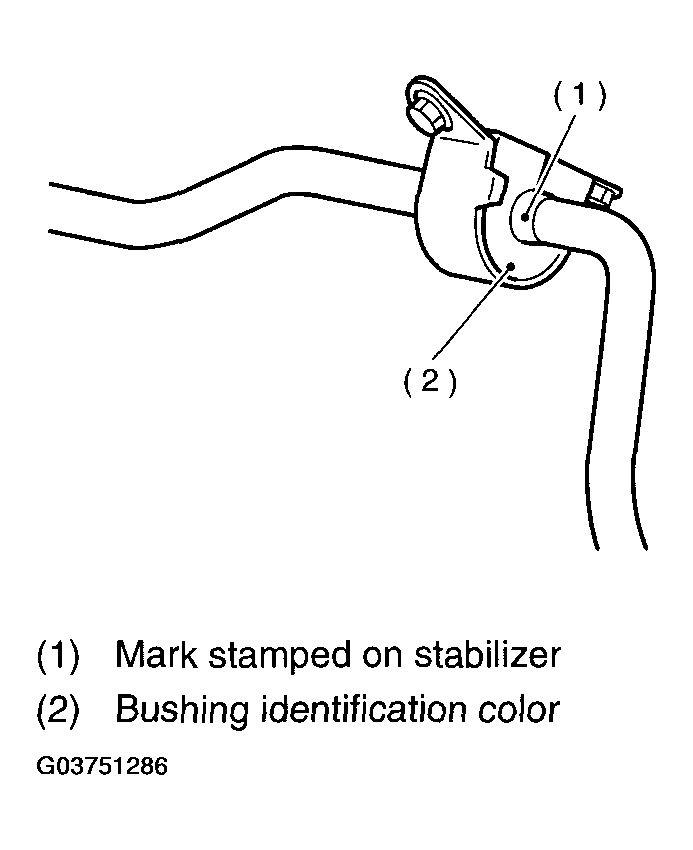

  Fig 1: Installing Bushing
  Courtesy of SUBARU OF AMERICA, INC.
Always tighten rubber bushing location when wheels are in full contact with the ground and vehicle is at curb weight.
Tightening torque:

Jack-up plate to crossmember:

70 N.m (7.1 kgf-m, 52 ft-lb)

Stabilizer link to front transverse link:

30 N.m (3.1 kgf-m, 22 ft-lb)

Stabilizer to crossmember:

25 N.m (2.5 kgf-m, 18.1 ft-lb)
