Front Stabilizer: Removal

  1. Jack-up the front part of the vehicle and support it with safety stand (rigid racks).
  2. Remove jack-up plate from lower part of cross-member.
  3. Remove bolts which secure stabilizer to cross-member.
    Fig 1: Removing Stabilizer To Cross-Member Bolts
    G03751284Courtesy of SUBARU OF AMERICA, INC.
  4. Remove bolts which secure stabilizer link to front transverse link.

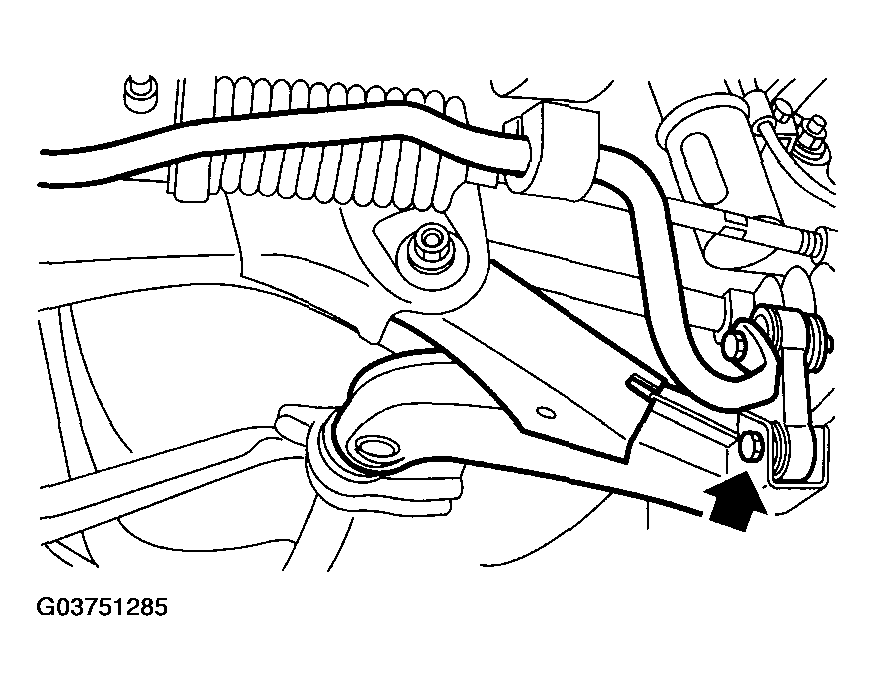

    Fig 2: Removing Stabilizer Link To Front Transverse Link Bolts
    G03751285Courtesy of SUBARU OF AMERICA, INC.
