Front Strut: Disassembly

  1. Using a coil spring compressor, compress coil spring.

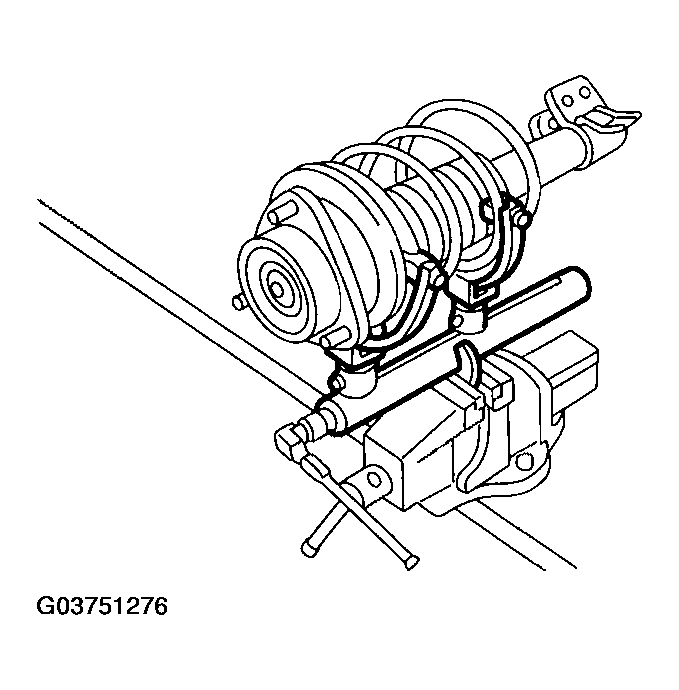

    Fig 1: Disassembling Compress Coil Spring Using Coil Spring Compressor
    G03751276Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST, remove self-locking nut.

    ST 927760000 STRUT MOUNT SOCKET

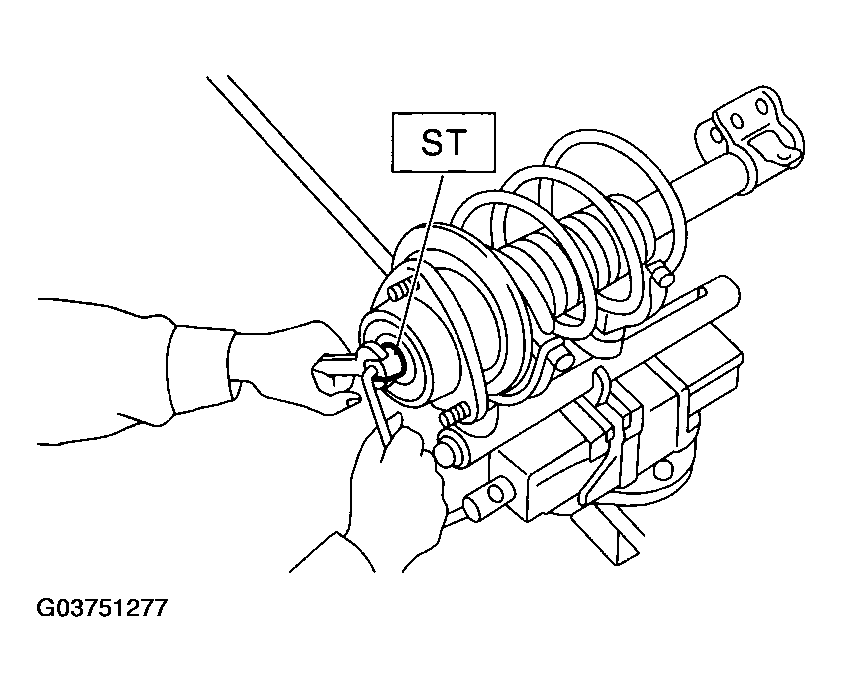

    Fig 2: Removing Self-Locking Nut Using Strut Mount Socket ST927760000
    G03751277Courtesy of SUBARU OF AMERICA, INC.
  3. Remove strut mount, upper spring seat and rubber seat from strut.
  4. Gradually decreasing compression force, and remove coil spring.
  5. Remove dust cover and helper spring.
