Front Suspension: General Description: Specifications
PICKUP SPECIFICATION
| Model | PICKUP | |
|---|---|---|
| Front | Camber (Tolerance: +/-0°45' Adjustment standard: +/-0°30') | 0°40' |
| Caster | 2°45' | |

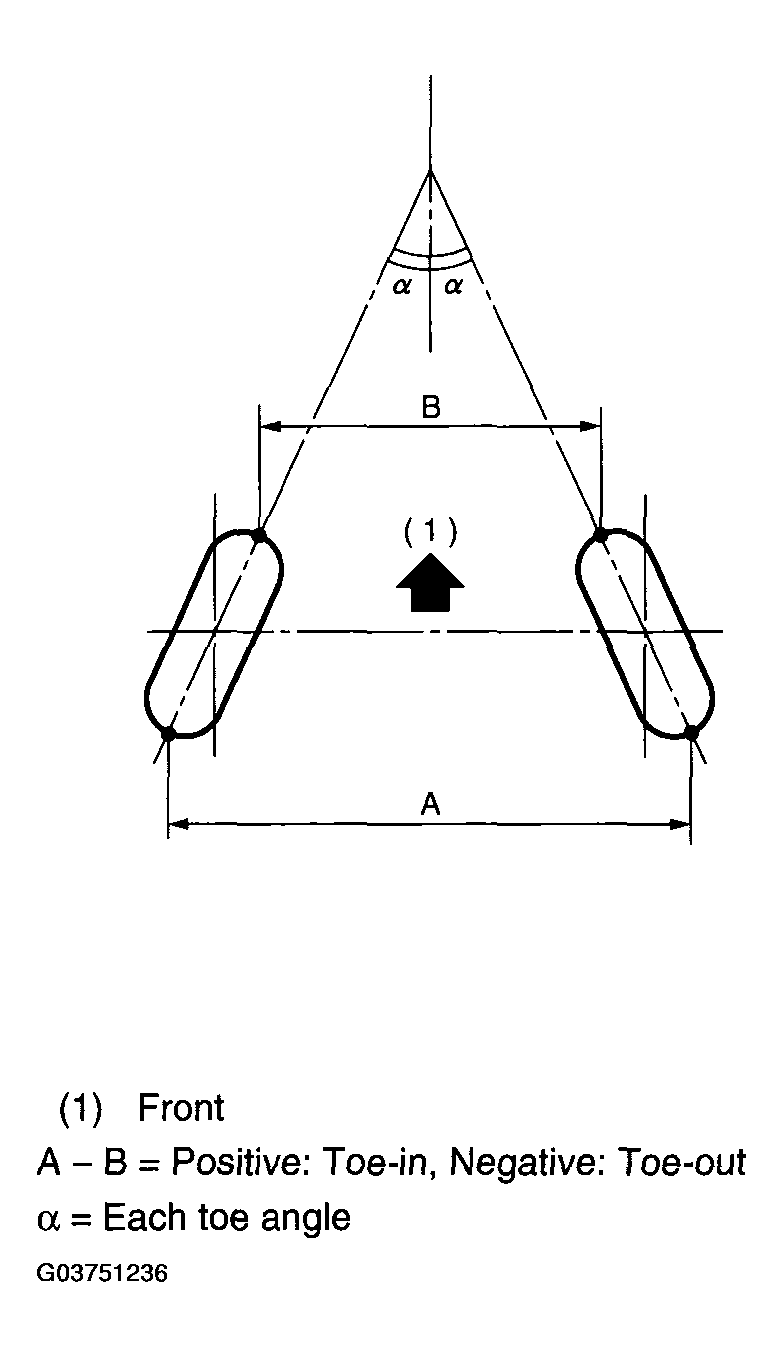

| Toe-in | Tolerance: 0+/-3 mm (0+/-0.12 in), Toe angle (The sum of both wheels): +/-0°15' Tolerance: 0+/-2 mm (0+/-0.08 in), Toe angle (The sum of both wheels): +/-0°10' |
|
| Kingpin angle | 13°00' | |
| Wheel arch height [Tolerance: +12/-24 mm (+0.47/-0.94 in)] |
436 mm (17.17 in) | |
| Diameter of stabilizer | 21 mm (0.83 in) | |
| Rear | Camber (Tolerance: +/-0°45' Adjustment standard: +/-0°30') |
0°05' |
| Toe-in | Tolerance: 0°3 mm (0°0.12 in), Toe angle (The sum of both wheels): +/-0°15' Tolerance: 0°2 mm (0°0.08 in), Toe angle (The sum of both wheels): +/-0°10' |
|
| Wheel arch height [Tolerance: +12/-24 mm (+0.47/-0.94 in)] |
441 mm (17.36 in) | |
| Thrust angle | Tolerance: +/-0°30', Adjustment standard: +/-0°20' | |
| Diameter of stabilizer | Non-TURBO model: 16 mm (0.63 in) TURBO model: 17 mm (0.67 in) |
NOTE:
- Front and rear toe-in and front camber can be adjusted. If toe-in or camber exceeds tolerance, adjust toe-in and camber to the adjustment standard.
- The other items indicated in the specification table cannot be adjusted. If the other items exceed specifications, check suspension parts and connections for deformities; replace with new ones as required.
