Front Wheel Toe-In: Adjustment

When exceeding the tolerance, adjust it as follows.

1. Loosen the left and right side steering tie-rods lock nuts.
2. Turn the left and right tie rods equal amounts until the toe-in is at the adjustment standard.

   Toe-in:

   0°2 mm (0°0.08 in) (adjustment standard)

   Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise equal amounts (as viewed from the inside of the vehicle).

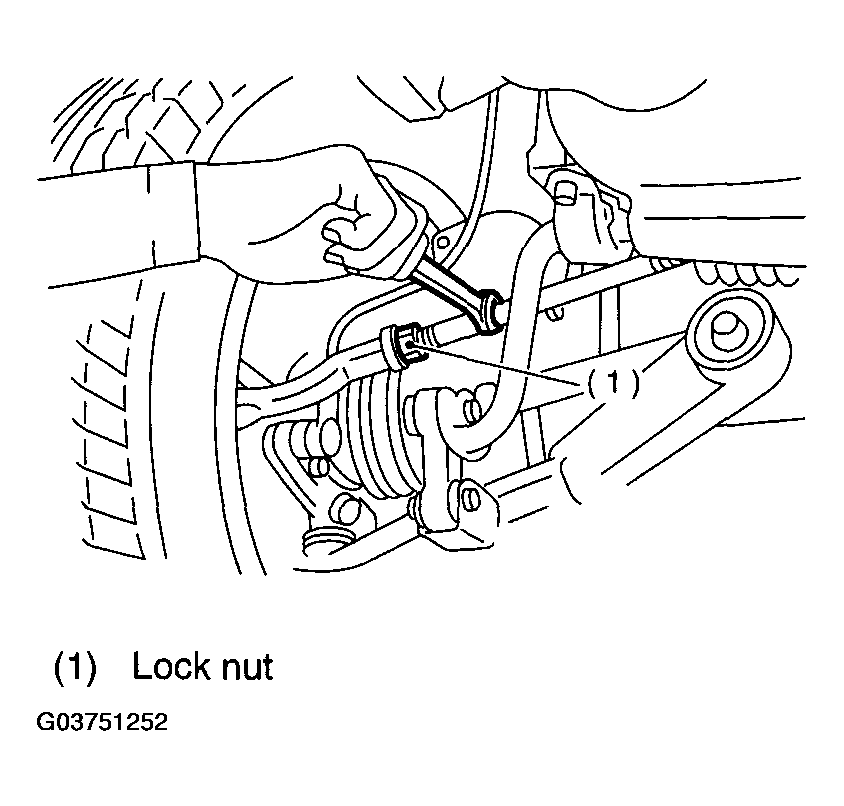

   Fig 1: Loosening Left And Right Side Steering Tie-Rods Lock Nuts

   Courtesy of SUBARU OF AMERICA, INC.
3. Tighten tie-rod lock nut.

   Tightening torque:

   83 N.m (8.5 kgf-m, 61.5 ft-lb)

   CAUTION: Correct tie-rod boot, if it is twisted.
   NOTE: Check the left and right wheel steering angle is within specifications.
