Dropping Resistor: Removal

NOTE: Dropping resistor is installed only for NON-TURBO model.
  1. Disconnect the ground cable from battery.

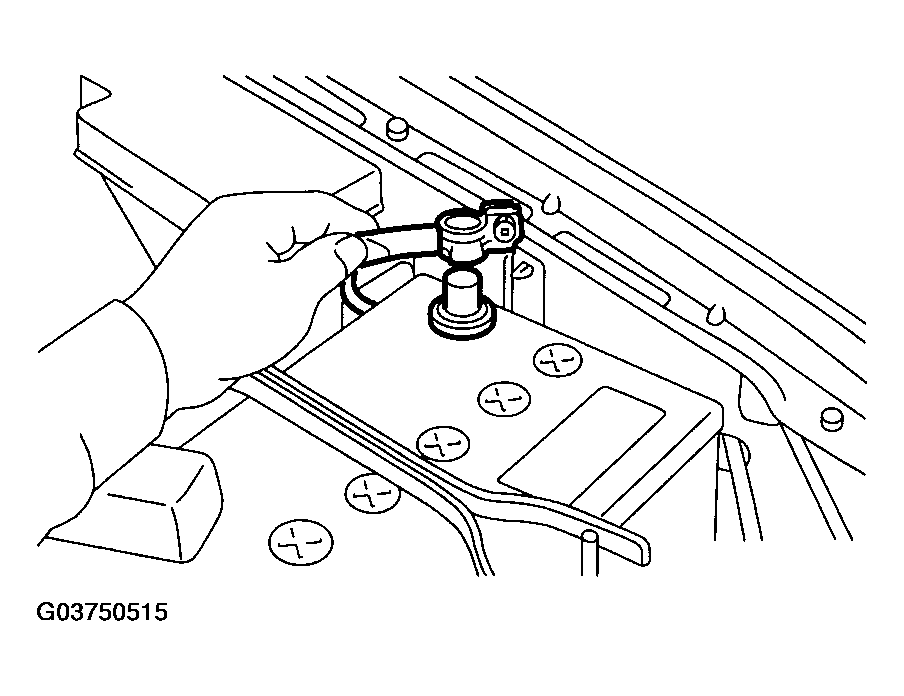

    Fig 1: Disconnecting Ground Cable From Battery
    G03750515Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake duct.

    < Ref. to REMOVAL , Air Cleaner Case. >

  3. Disconnect the connector from dropping resistor.
  4. Remove the dropping resistor.

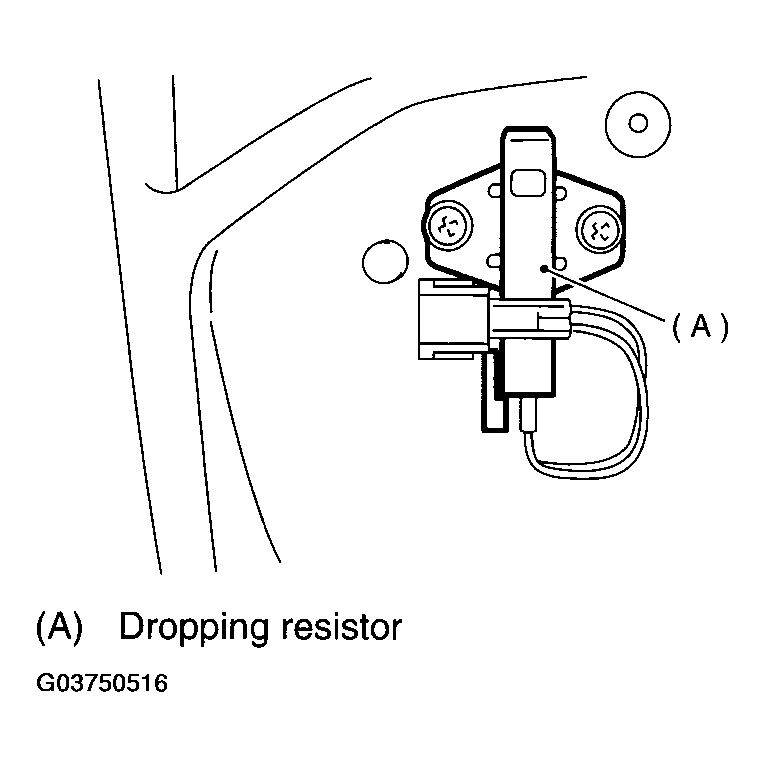

    Fig 2: Removing Dropping Resistor
    G03750516Courtesy of SUBARU OF AMERICA, INC.
