Inhibitor Switch: Adjustment

  1. Shift the select lever to "N" range.
  2. Loosen the three inhibitor switch securing bolts.
  3. Insert the ST as vertical as possible into the holes in inhibitor switch lever and switch body.

    ST 499267300 STOPPER PIN

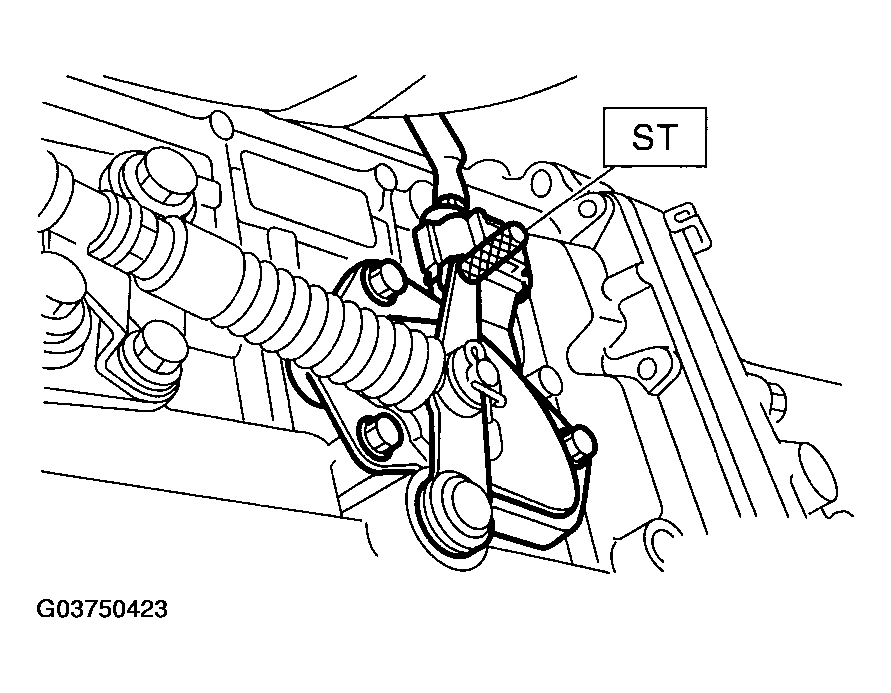

    Fig 1: Inserting Stopper Pin ST499267300 Into Holes In Inhibitor Switch Lever And Switch Body
    G03750423Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten the three inhibitor switch bolts.

    Tightening torque:

    3.5 N.m (0.36 kgf-m, 2.6 ft-lb)

  5. Repeat the above checks. If the inhibitor switch is determined to be "faulty", replace it.
