Home >> Subaru >> 2005 >> Baja Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Rear Vehicle Speed Sensor >> Removal >> Turbo Model

Turbo Model

  1. Set vehicle on a lift.
  2. Disconnect ground cable from battery.
  3. Lift up the vehicle.
  4. Disconnect rear vehicle speed sensor connector.

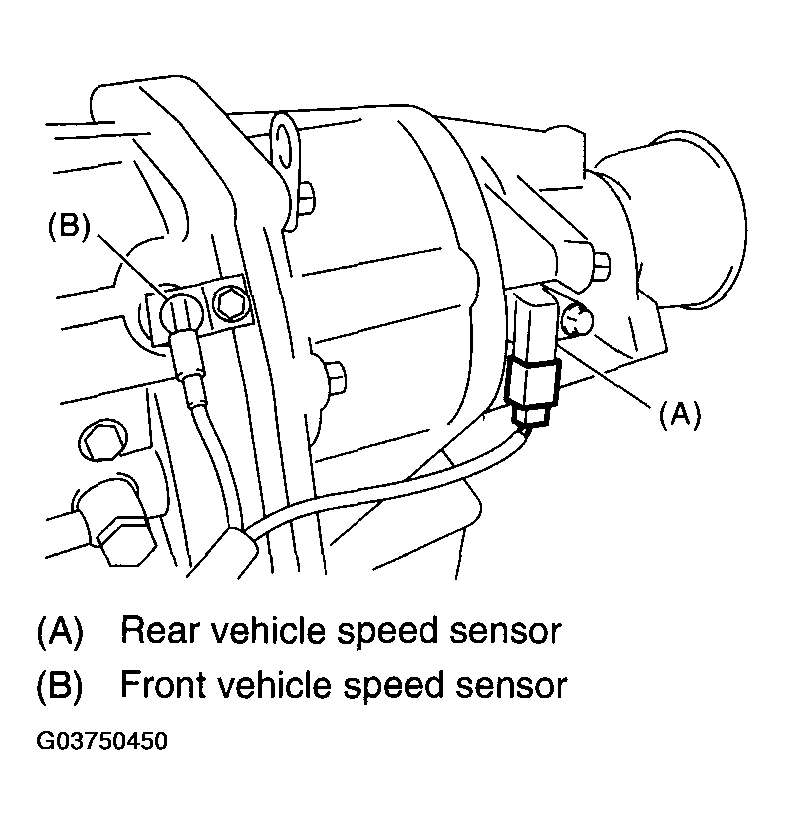

    Fig 1: Disconnecting Rear Vehicle Speed Sensor Connector
    G03750450Courtesy of SUBARU OF AMERICA, INC.
  5. Remove rear vehicle speed sensor.

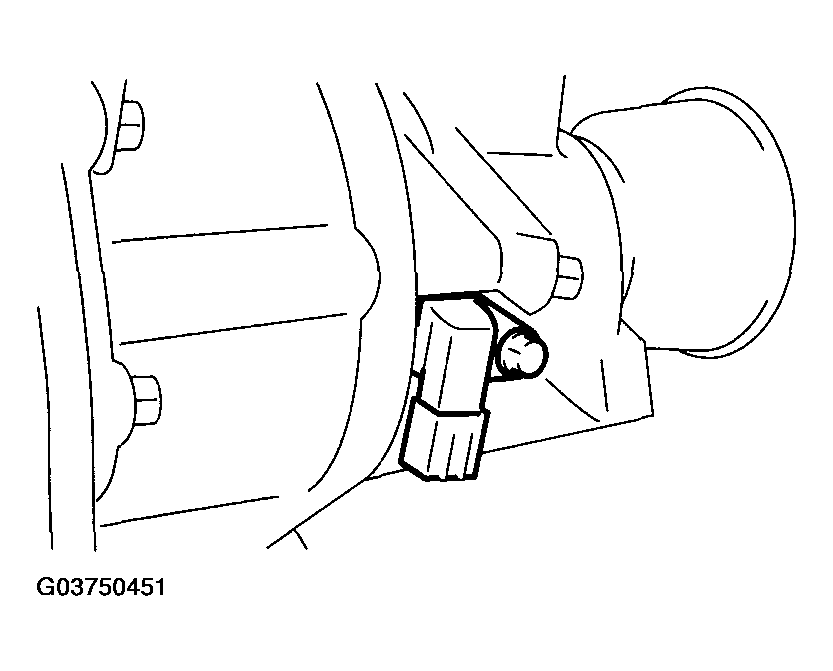

    Fig 2: Removing Rear Vehicle Speed Sensor
    G03750451Courtesy of SUBARU OF AMERICA, INC.
