Transfer Clutch: Installation

Select the thrust needle bearing. < Ref. to , ADJUSTMENT . >
Install the transfer clutch assembly to the case.

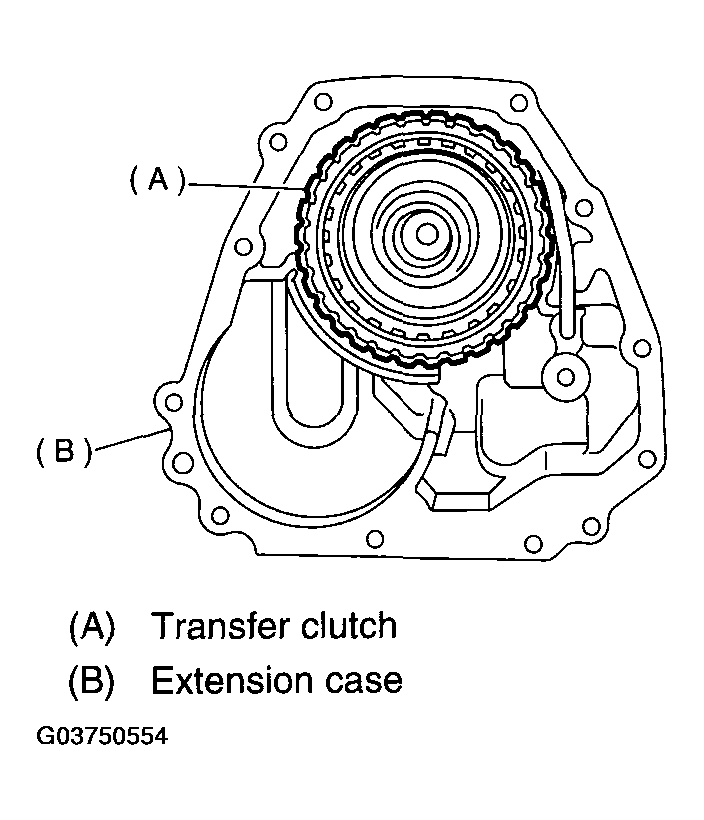

Fig 1: Installing Transfer Clutch Assembly To Case
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts to secure the case.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

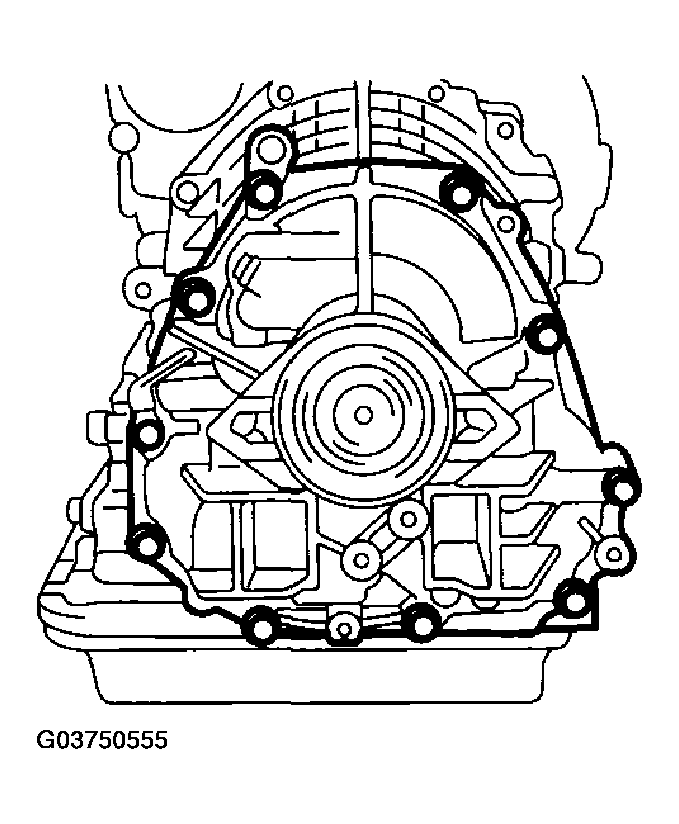

Fig 2: Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to vehicle. < Ref. to , INSTALLATION . >
