Home >> Subaru >> 2005 >> Baja Turbo, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Speed Control Systems (H4DOTC) >> Accelerator Pedal >> Removal

Accelerator Pedal: Removal

  1. Disconnect ground cable from battery.
  2. Disconnect the connector.
  3. Remove the nuts which securing accelerator pedal assembly.

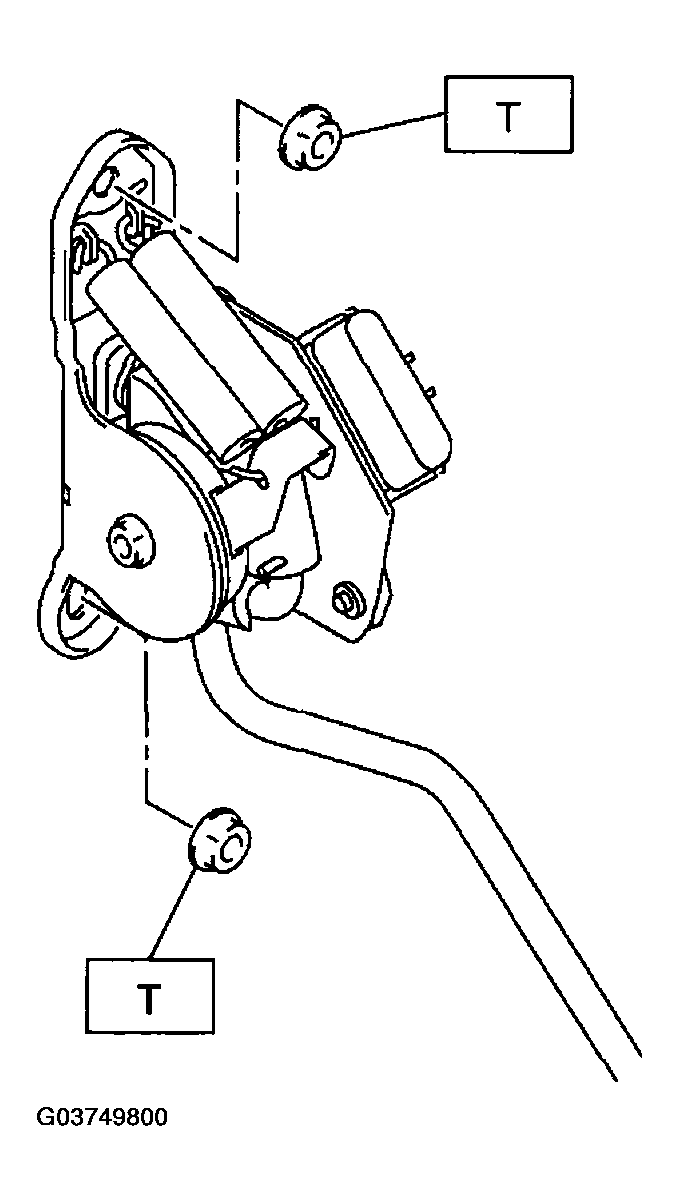

    Fig 1: Removing Nuts Which Securing Accelerator Pedal Assembly
    G03749800Courtesy of SUBARU OF AMERICA, INC.
