Reverse Check Cable: Installation

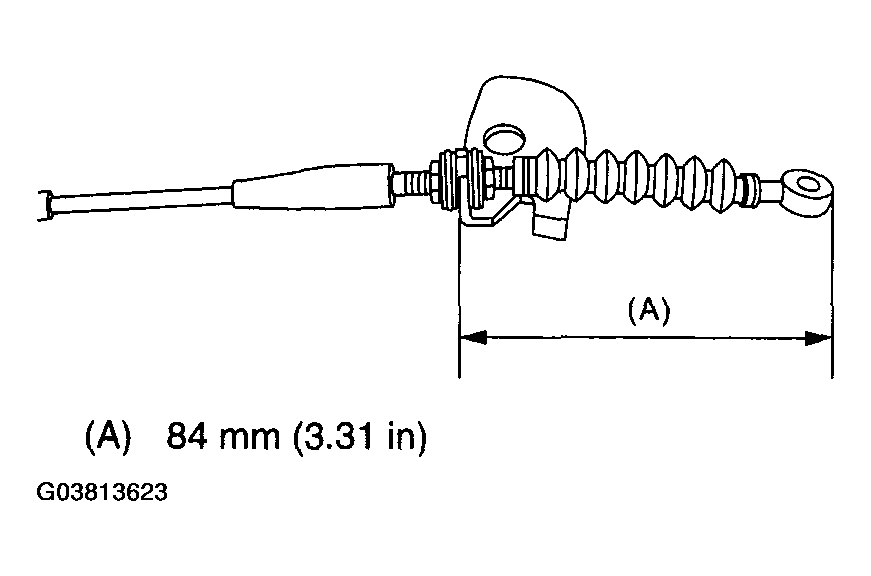

Adjust the length between end of cable plate and reverse check cable to 84 mm (3.31 in), and then tighten the lock nut.
Tightening torque: 6 N.m (0.6 kgf-m, 4.4 ft-lb)

Fig 1: Adjusting Length Between End Of Cable Plate And Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Insert the reverse check cable to the hole of inner boots from underneath the vehicle.

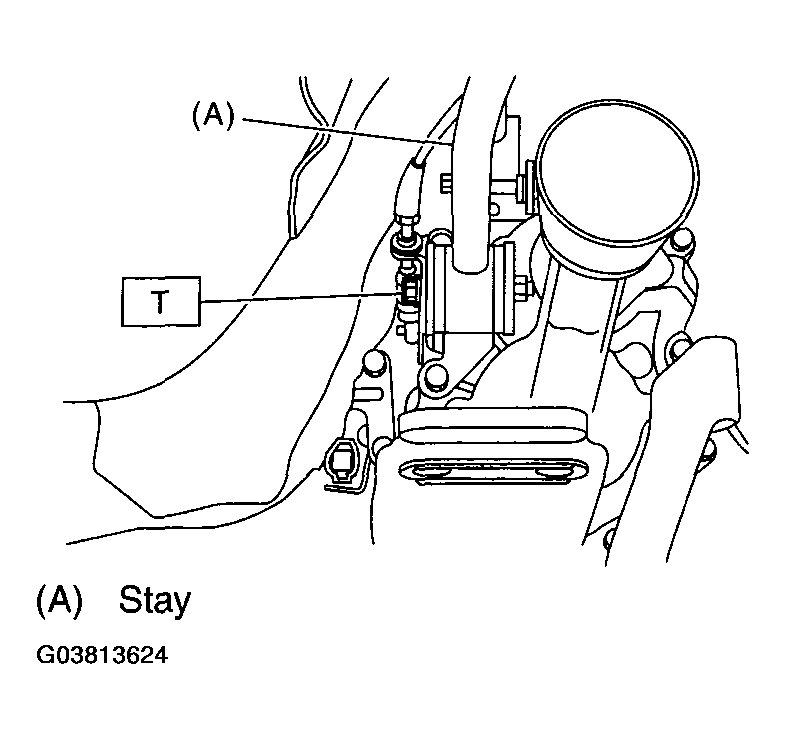

Move the transmission to right side, and then install the stay.
Tightening torque: T: 32 N.m (3.3 kgf-m, 23.6 ft-lb)

Fig 2: Inserting Reverse Check Cable To Hole Of Inner Boots
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

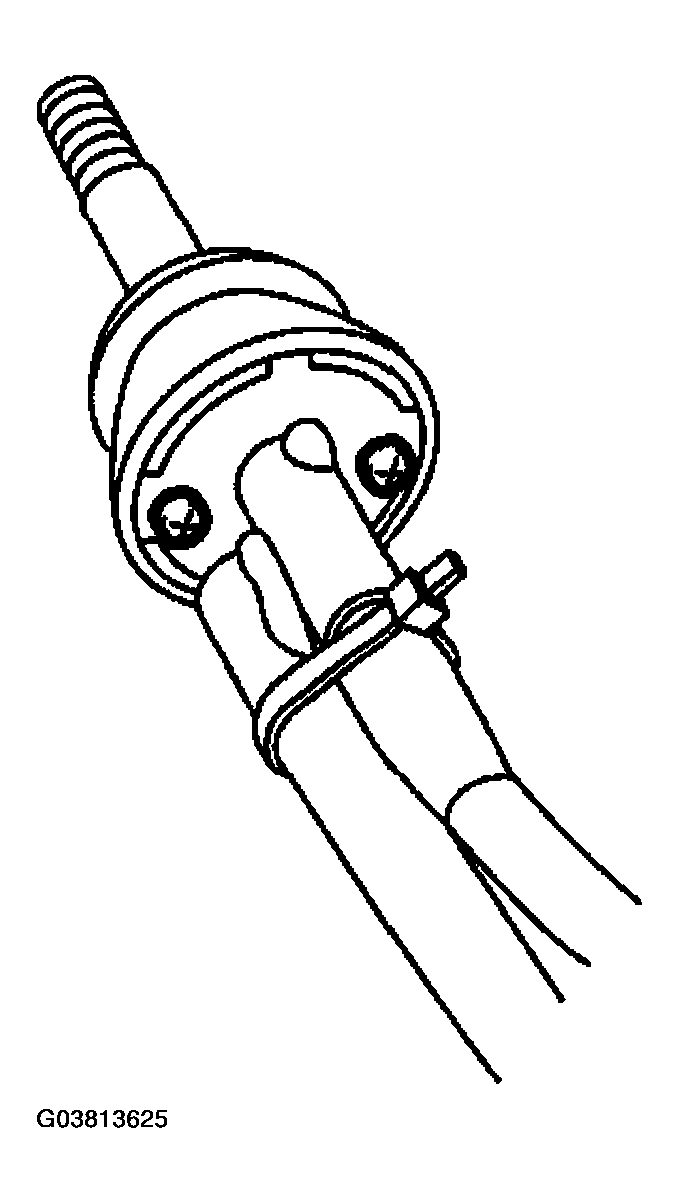

Insert the reverse check cable to the gear shift lever assembly, then fix with the band clip.
NOTE:
- Cut off the extra band clip.
- Make sure that the reverse check cable is inserted into gear shift lever assembly without any clearance.
Fig 3: Inserting Reverse Check Cable To Gear Shift Lever Assembly
Courtesy of SUBARU OF AMERICA, INC.

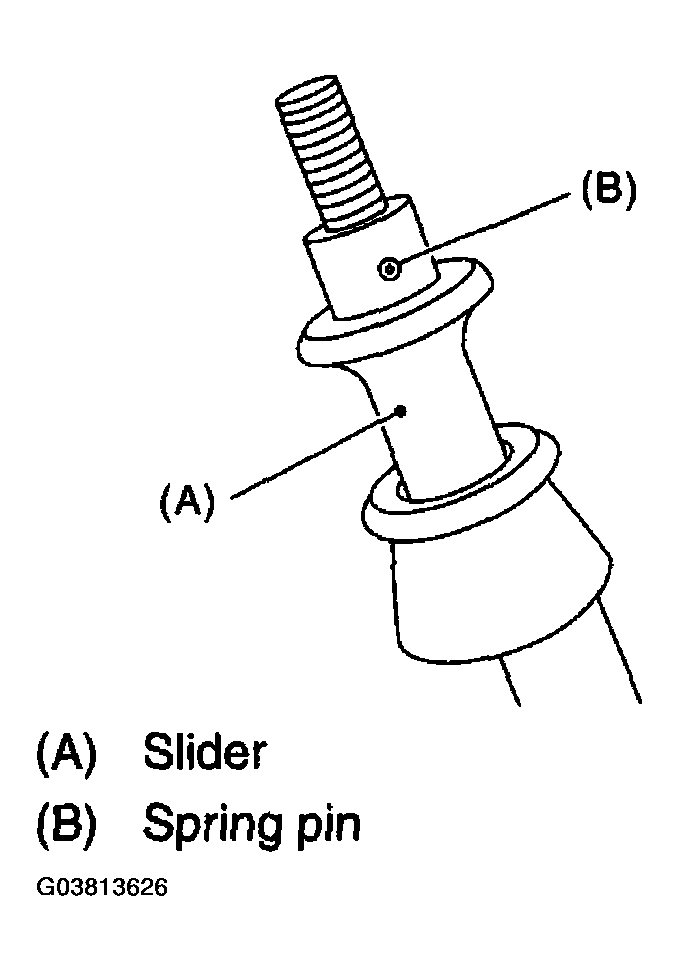

Fix the slider and reverse check cable end with spring pin.
NOTE: Apply grease to the sliding part of slider.

Fig 4: Installing Slider And Reverse Check Cable End With Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.

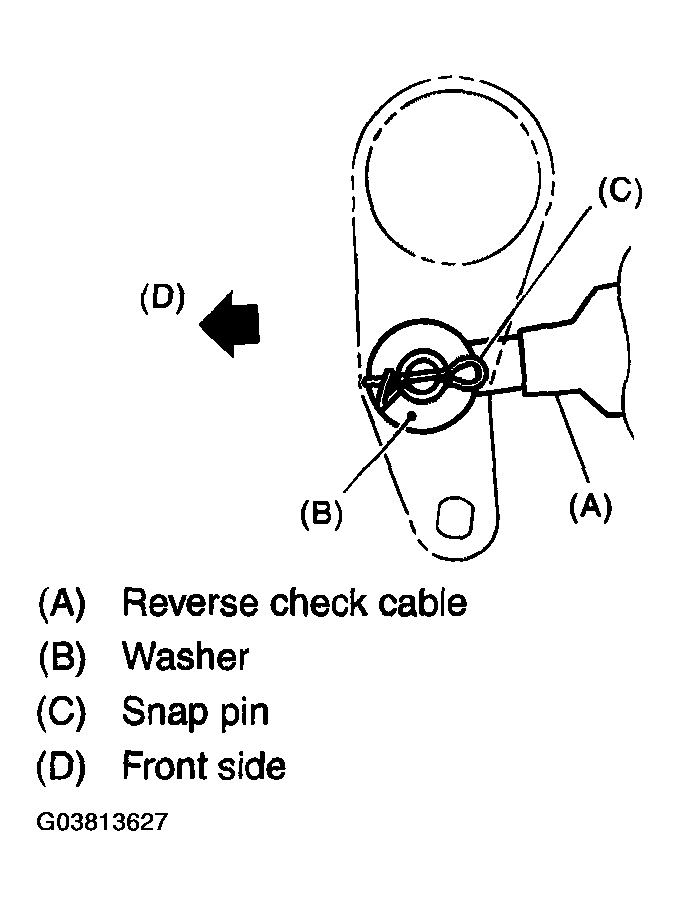

Install the reverse check cable end, washer and snap pin to reverse check lever.
NOTE: Take care to install the snap pin in proper direction.

Fig 5: Installing Snap Pin
Courtesy of SUBARU OF AMERICA, INC.

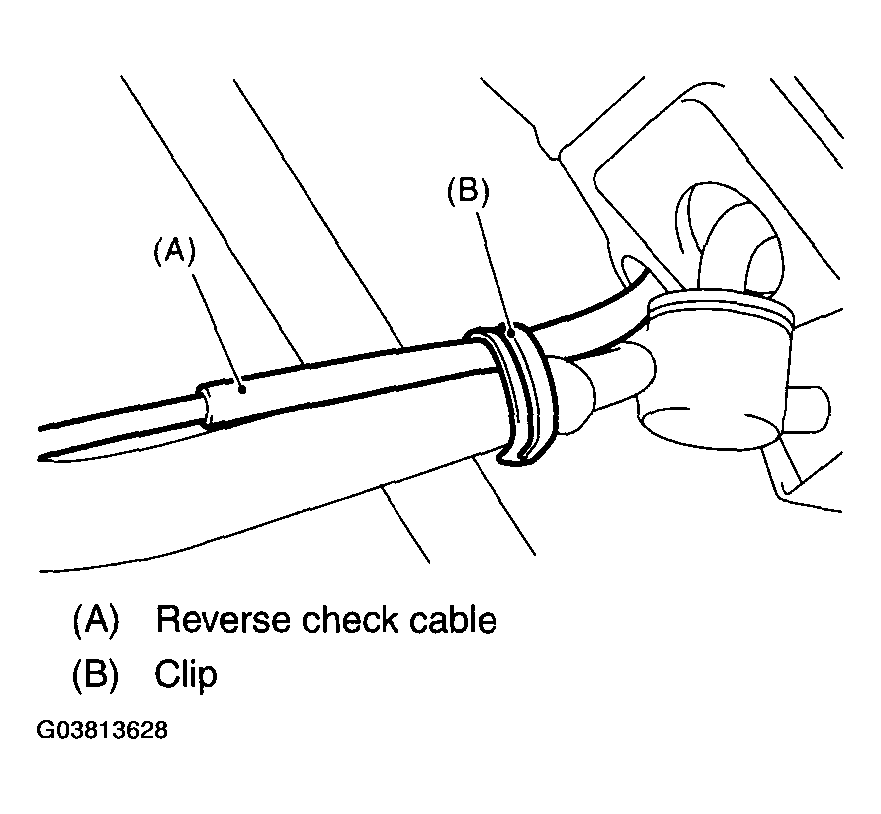

Fix the reverse check cable to clip of stay.
NOTE: Install the reverse check cable to upper side of stay.

Fig 6: Installing Reverse Check Cable To Upper Side Of Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the rear exhaust pipe and muffler. < Ref. to INSTALLATION , Rear Exhaust Pipe. > < Ref. to INSTALLATION , Muffler. >
Install the console box. < Ref. to INSTALLATION , Console Box. >
