Select Cable: Removal

  1. Set the vehicle on a lift.
  2. Set the select lever to "N" range.
  3. Disconnect negative cable from battery.
  4. Lift-up the vehicle.
  5. Remove front, center, rear exhaust pipe and muffler. (SOHC model)

    < Ref. to REMOVAL , Front Exhaust Pipe. > < Ref. to REMOVAL , Center Exhaust Pipe. > < Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. >

  6. Remove the center and rear exhaust pipes and muffler. (DOHC turbo model)

    < Ref. to REMOVAL , Center Exhaust Pipe. > < Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. >

  7. Remove the heat shield cover. (If equipped)

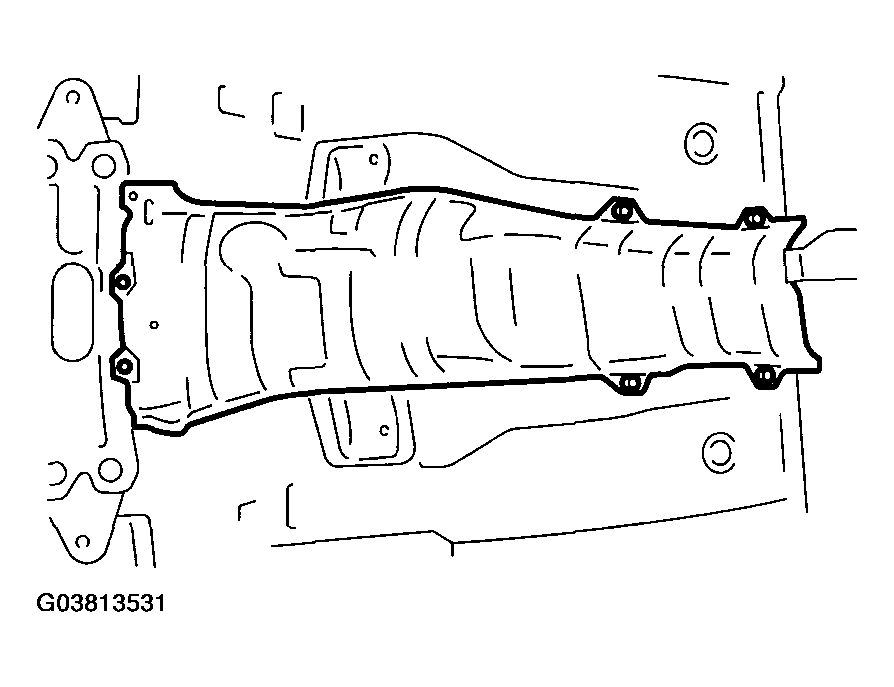

    Fig 1: Removing Heat Shield Cover
    G03813531Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the snap pin and washer from range select lever.

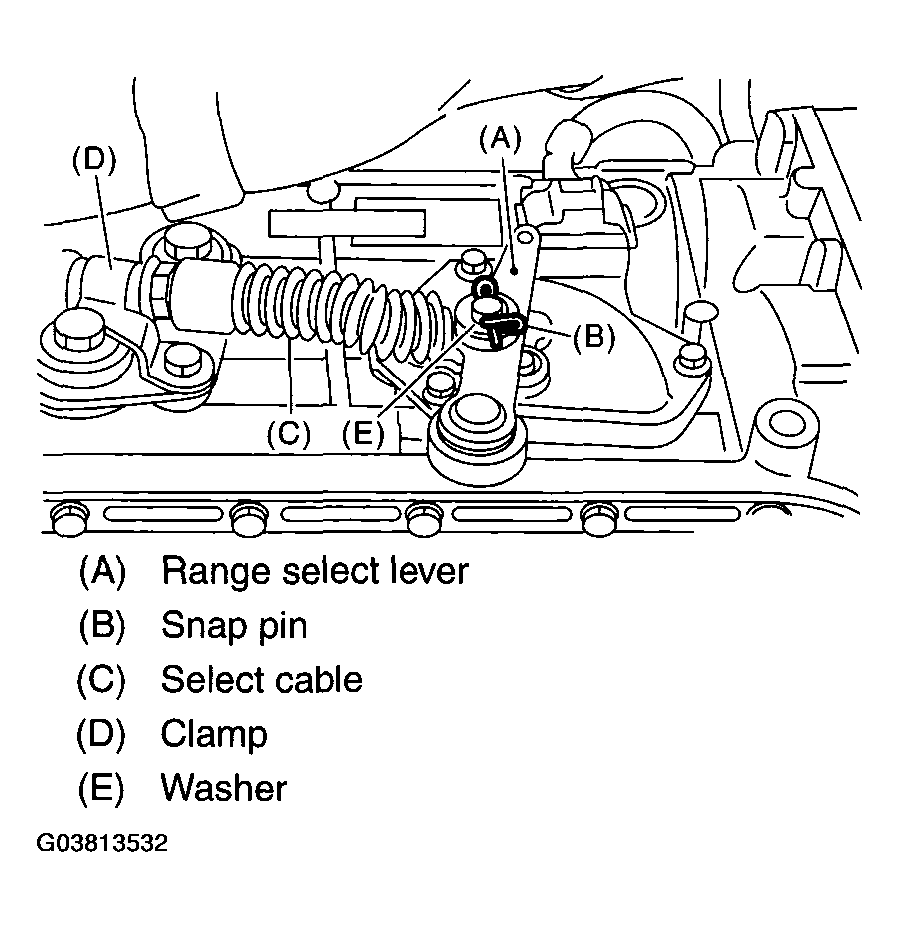

    Fig 2: Removing Snap Pin And Washer From Range Select Lever
    G03813532Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the plate assembly from transmission case.

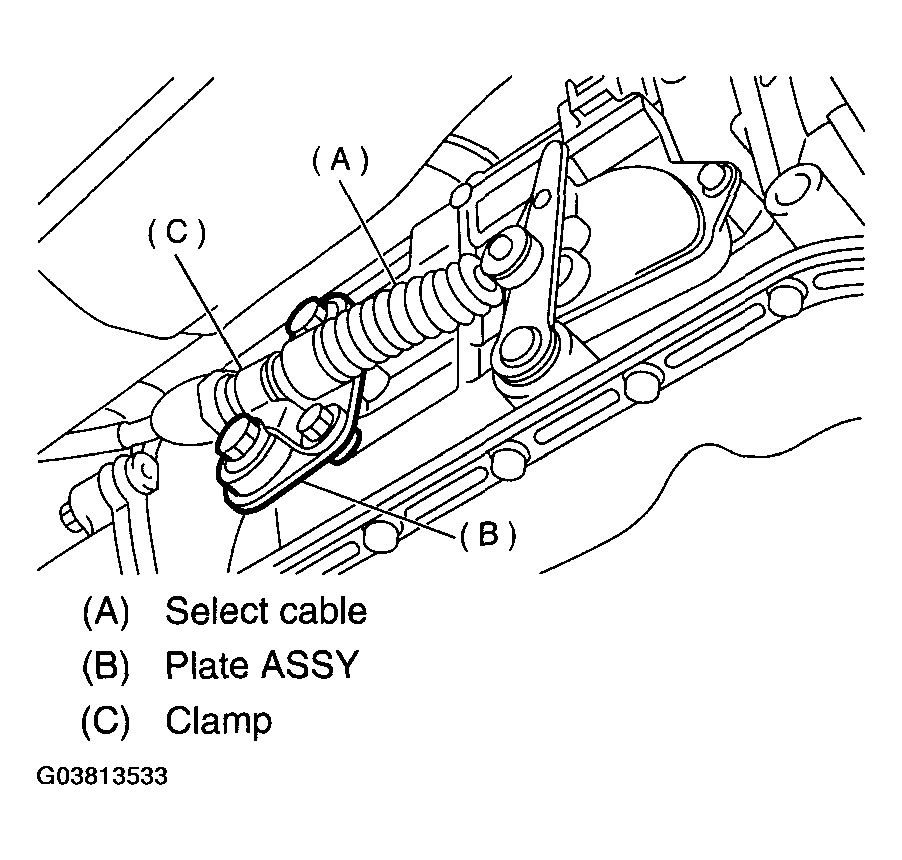

    Fig 3: Removing Plate Assembly From Transmission Case
    G03813533Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the cable from select lever, and then remove the cable bracket.

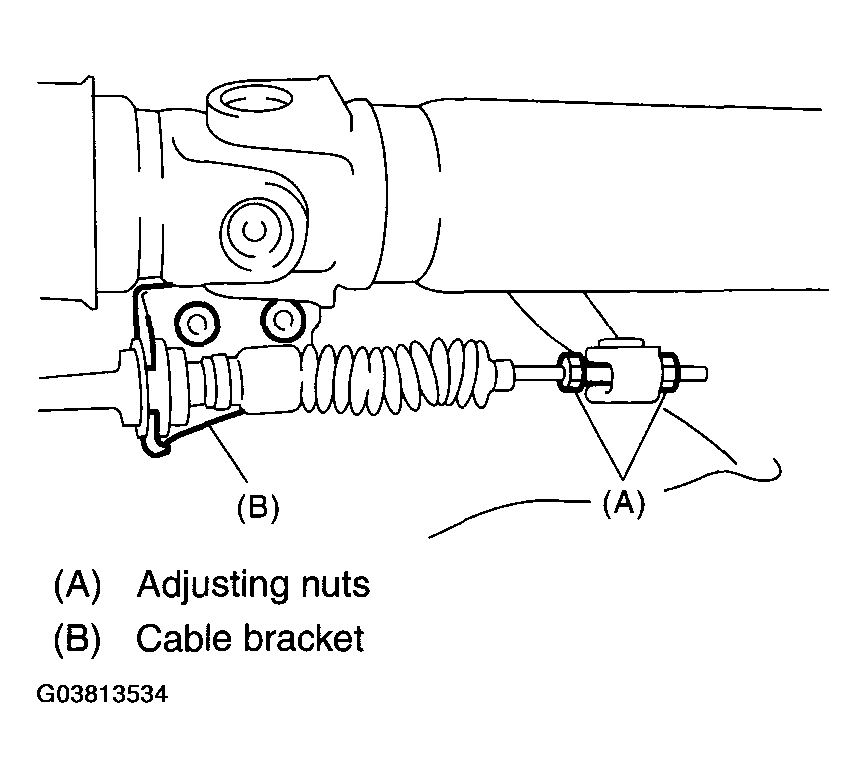

    Fig 4: Disconnecting Cable From Select Lever
    G03813534Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
