Select Lever: Disassembly

Remove the packing.
Remove the grip.
Remove the indicator light, and then remove the indicator cover.
NOTE: Be careful not to break the indicator light during removal.

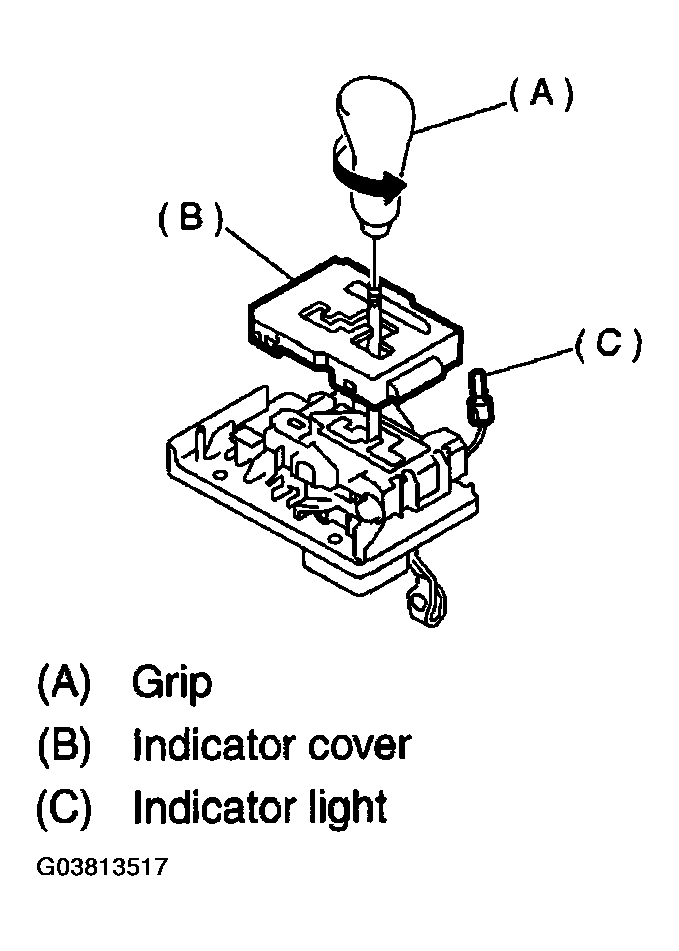

Fig 1: Removing Indicator Light And Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider.
Remove the cover.

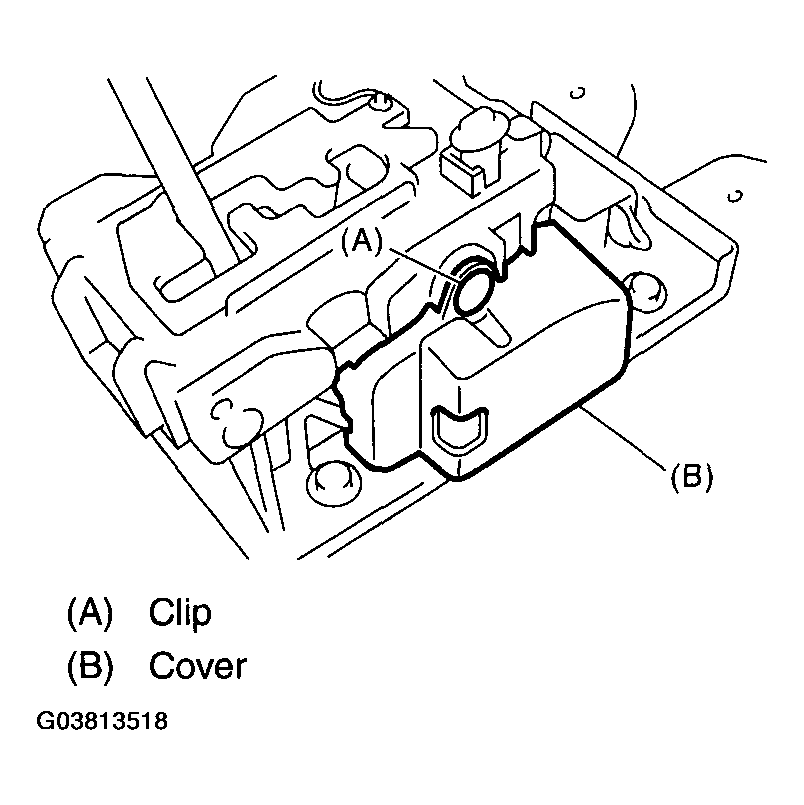

Fig 2: Removing Cover
Courtesy of SUBARU OF AMERICA, INC.

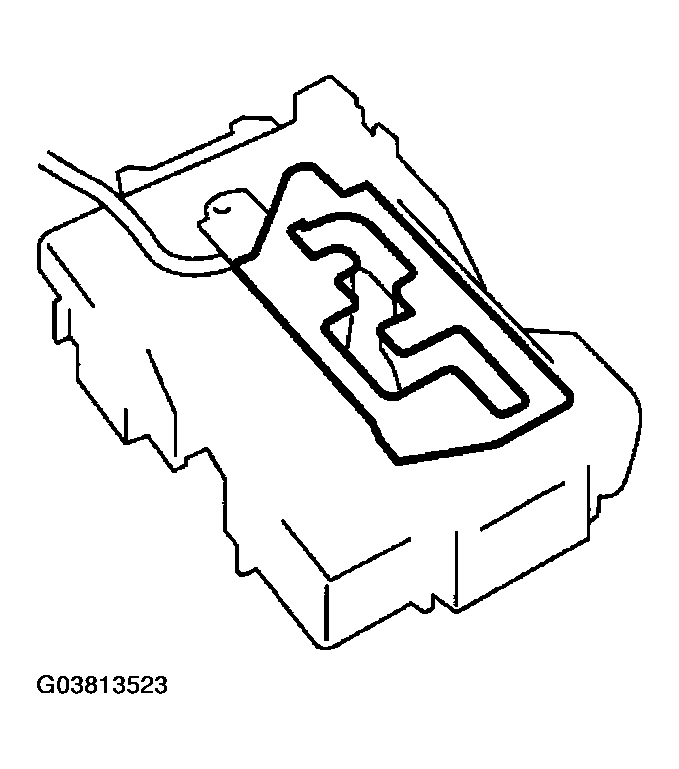

Remove the clips, and then remove the guide plate.

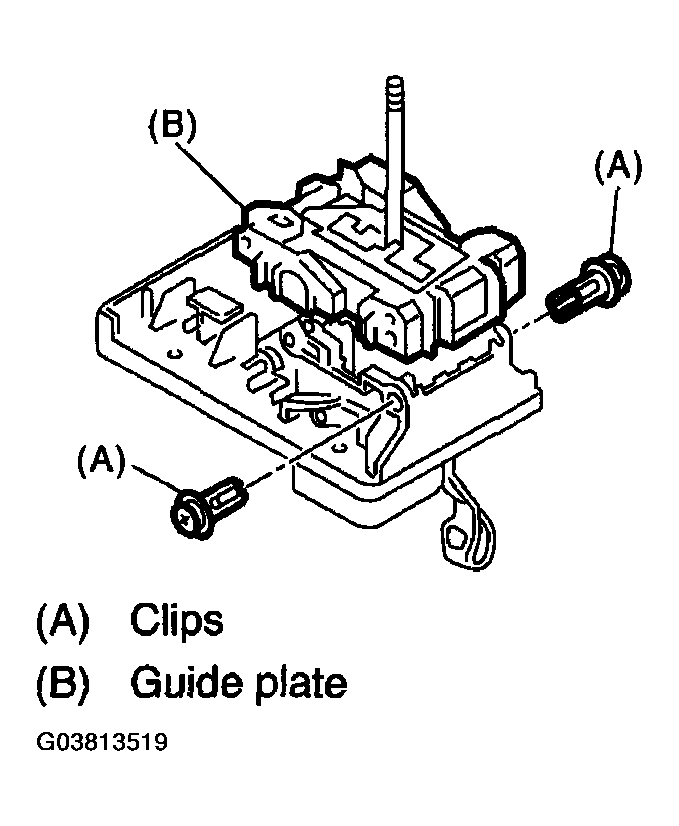

Fig 3: Removing Guide Plate
Courtesy of SUBARU OF AMERICA, INC.

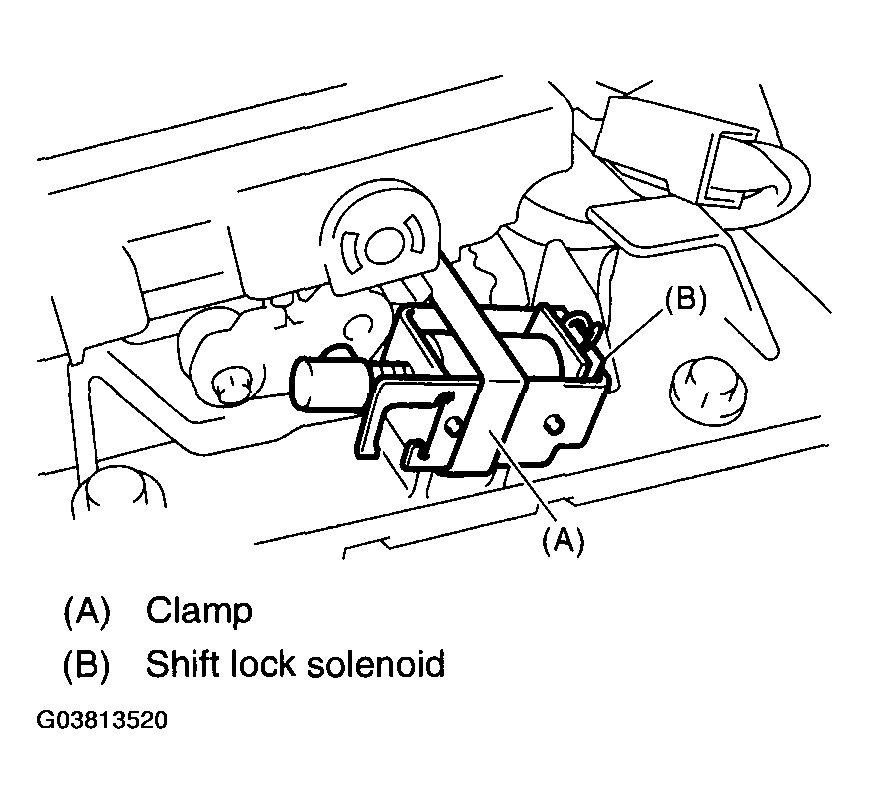

Remove the clamp, and the remove the shift lock solenoid.

Fig 4: Removing Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt securing lock plate B.

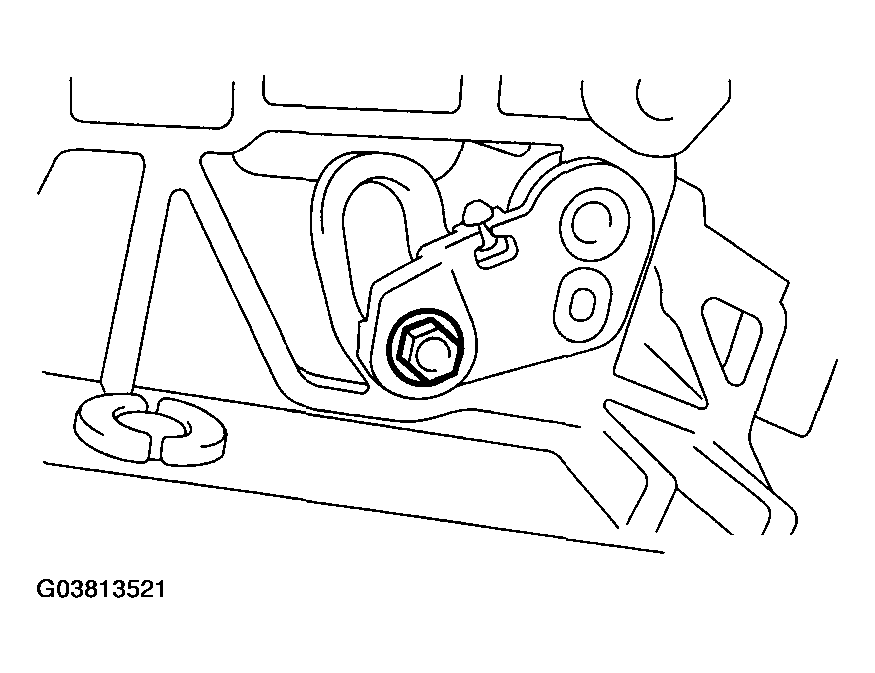

Fig 5: Removing Bolt Securing Lock Plate
Courtesy of SUBARU OF AMERICA, INC.

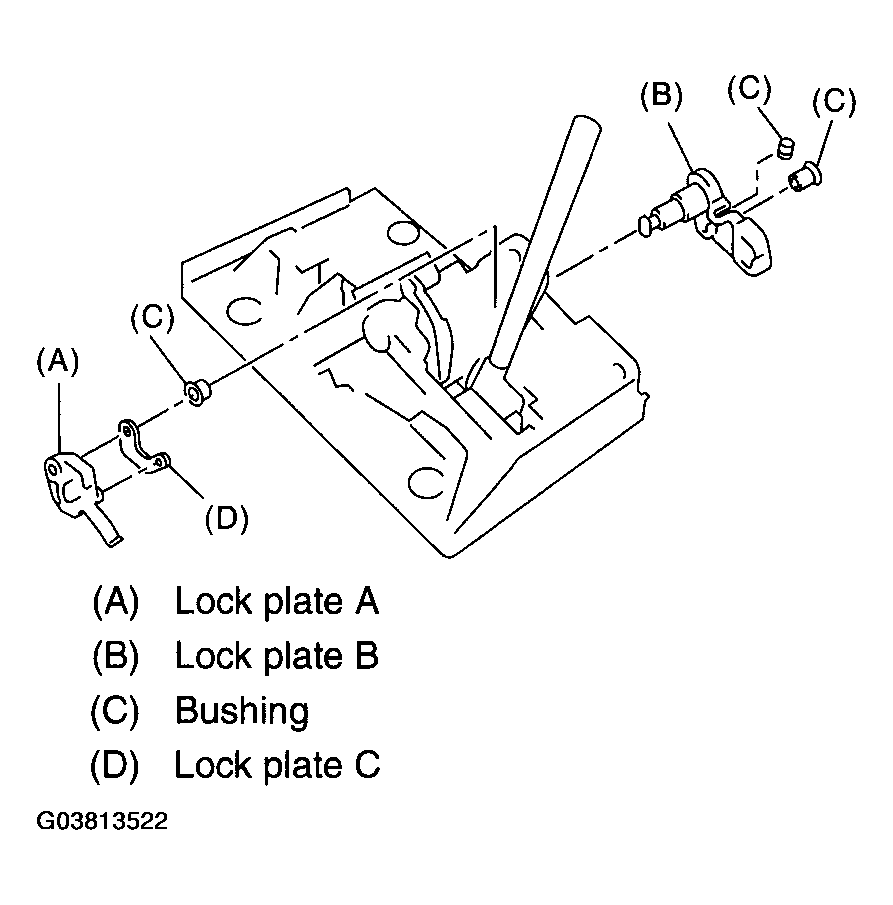

Remove the lock plate A, B, C and bushing.

Fig 6: Removing Lock Plate A, B, C And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion plate.

Fig 7: Removing Cushion Plate
Courtesy of SUBARU OF AMERICA, INC.

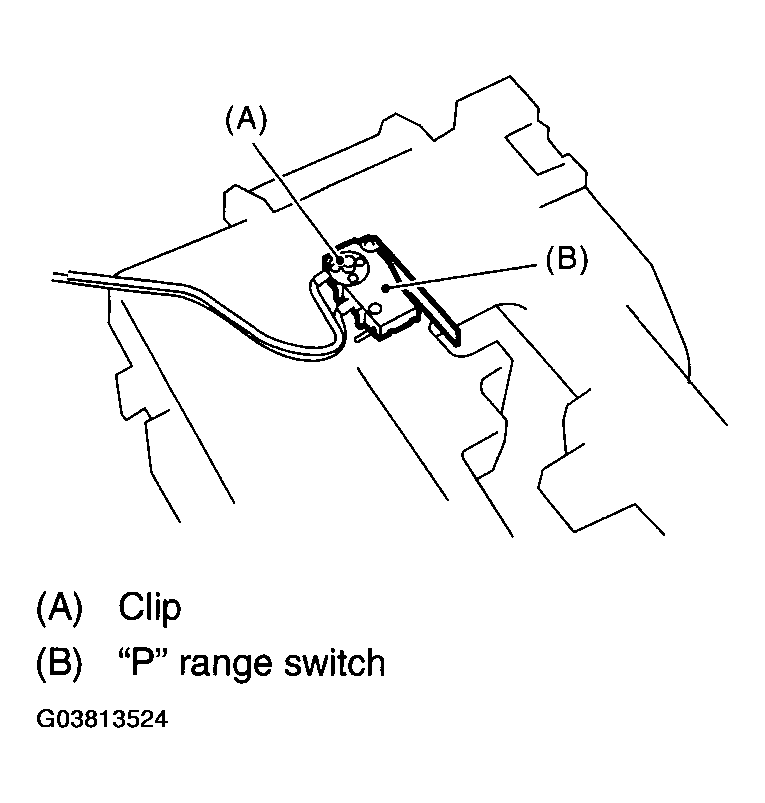

Remove the clip, and then remove the "P" range switch.

Fig 8: Removing Range Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the grommet, and then extract spring pin.

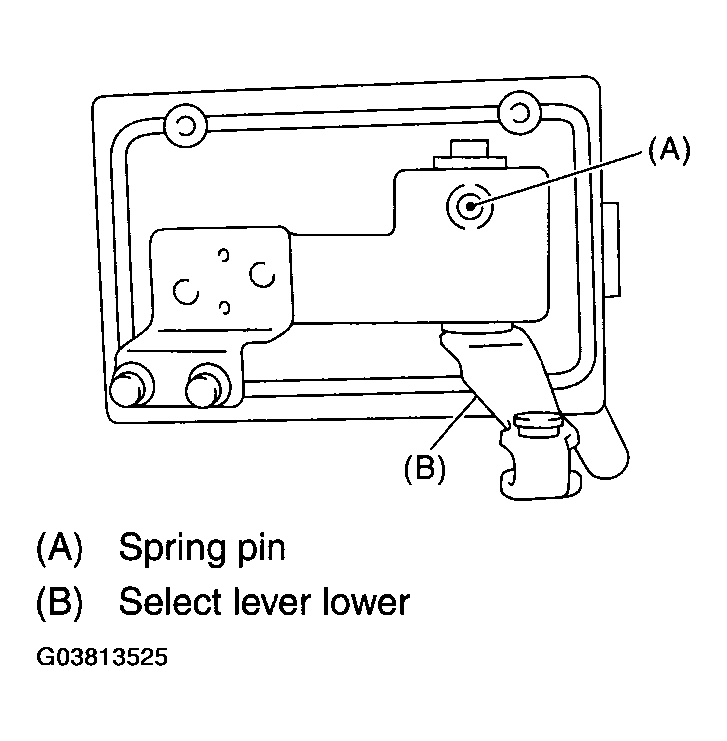

Fig 9: Removing Extract Spring Pin
Courtesy of SUBARU OF AMERICA, INC.

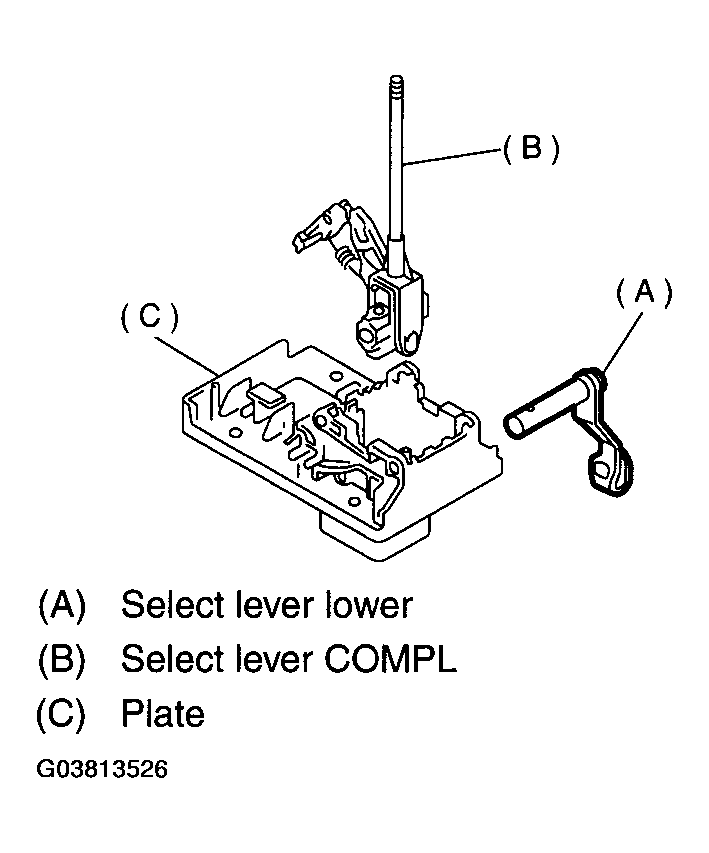

Remove the select lever lower, and then take away the select lever COMPL from plate.

Fig 10: Removing Select Lever Lower
Courtesy of SUBARU OF AMERICA, INC.
Remove the detent spring, and then remove the detent arm.

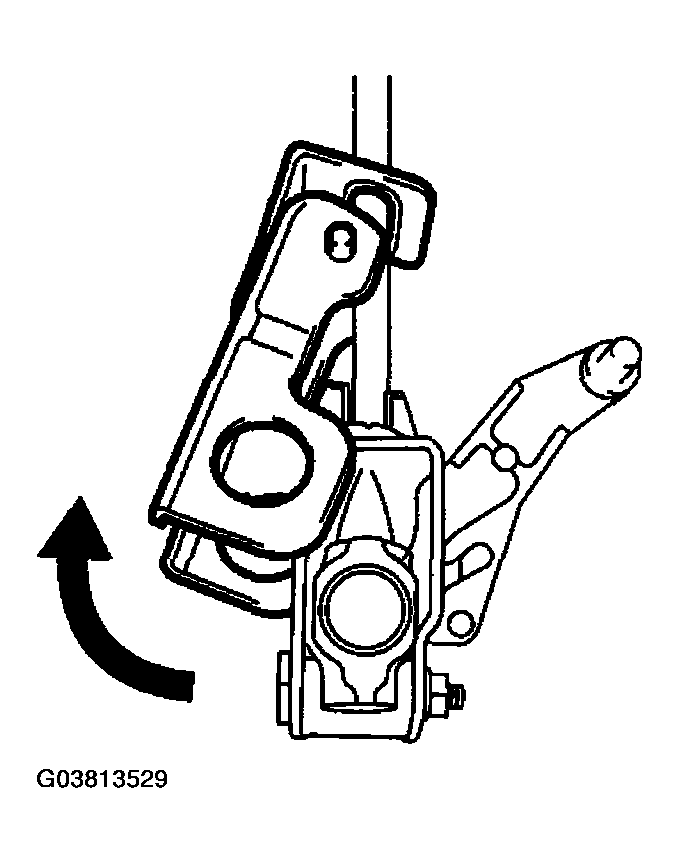

Fig 11: Removing Detent Spring And Detent Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the select lever COMPL bushing from bracket.

Fig 12: Removing Select Lever COMPL Bushing From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the bracket from select lever COMPL.

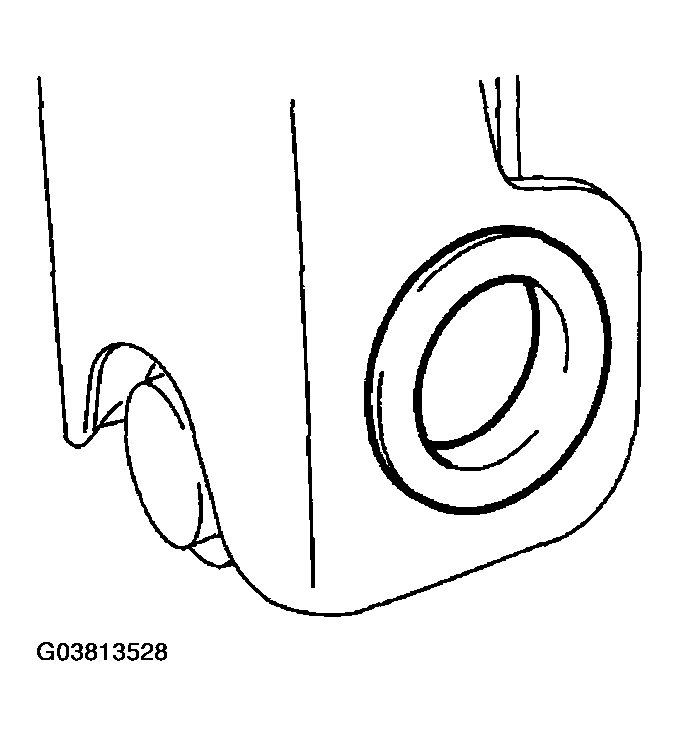

Fig 13: Removing Bracket From Select Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing from bracket.

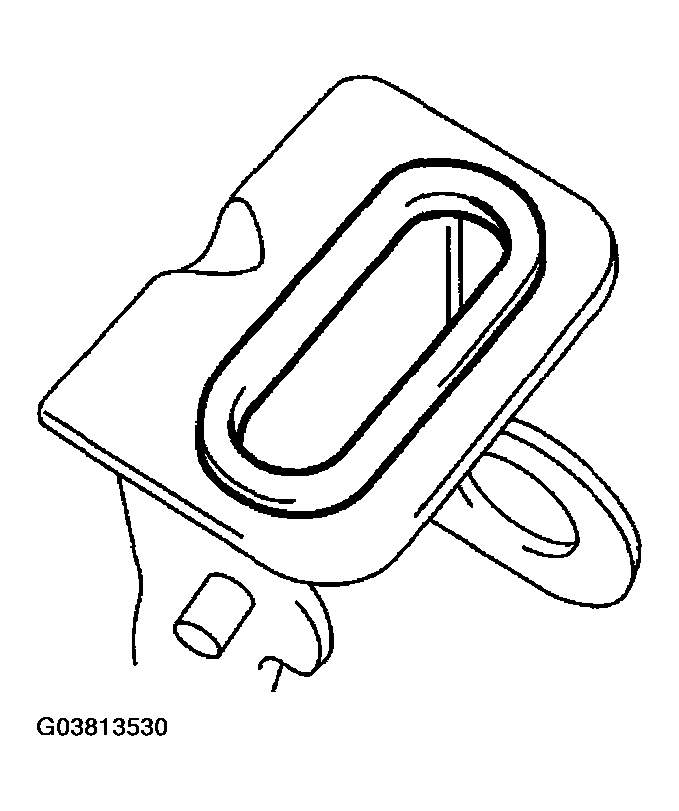

Fig 14: Removing Bushing From Bracket
Courtesy of SUBARU OF AMERICA, INC.
