Accelerator Control Cable: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • If the cable clamp is damaged, replace it with a new one.
    • Never fail to cover the outer cable end with boot.
    • Be careful not to kink the accelerator cable.
    • Do not apply grease to except specified part.
  2. Apply grease to engine side accelerator cable end.

    Grease:

    Silicolube G-30M (Part No. 004404002)

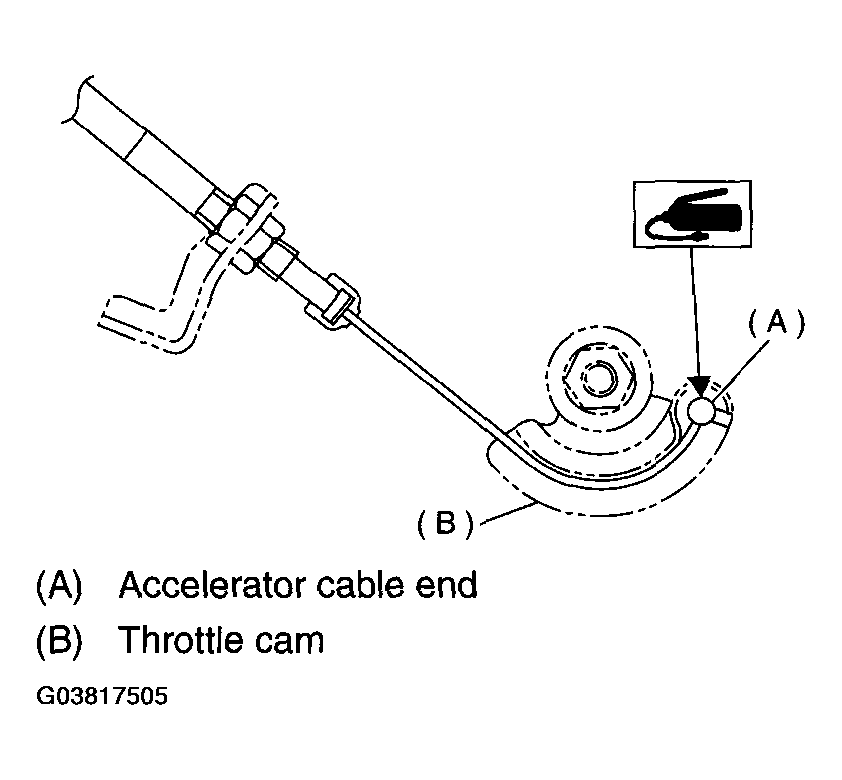

    Fig 1: Applying Grease To Engine Side Accelerator Cable End
    G03817505Courtesy of SUBARU OF AMERICA, INC.
  3. After installation, adjust the pedal. < Ref. to , ADJUSTMENT , Accelerator Pedal. >
