Accelerator Pedal: Removal

Disconnect the ground cable from battery.
Remove the lock nut from accelerator cable bracket.
Separate the accelerator cable from bracket.
Remove the accelerator cable end from throttle cam.
NOTE: Be careful not to kink the accelerator cable.

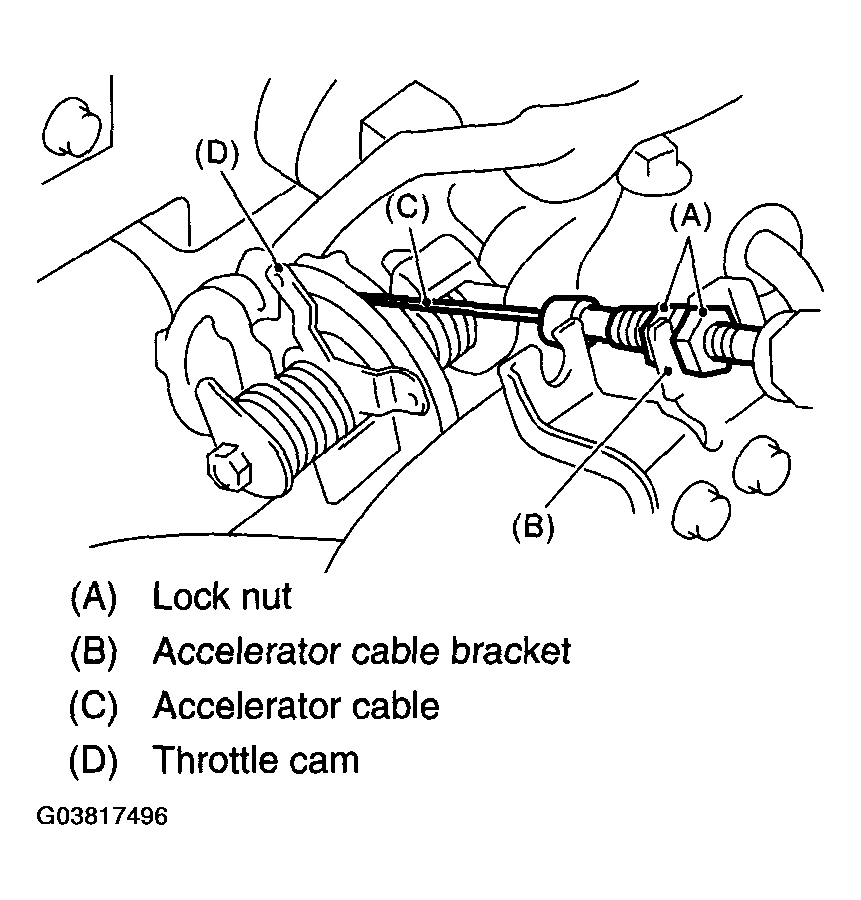

Fig 1: Removing Accelerator Cable End From Throttle Cam
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip inside engine compartment.

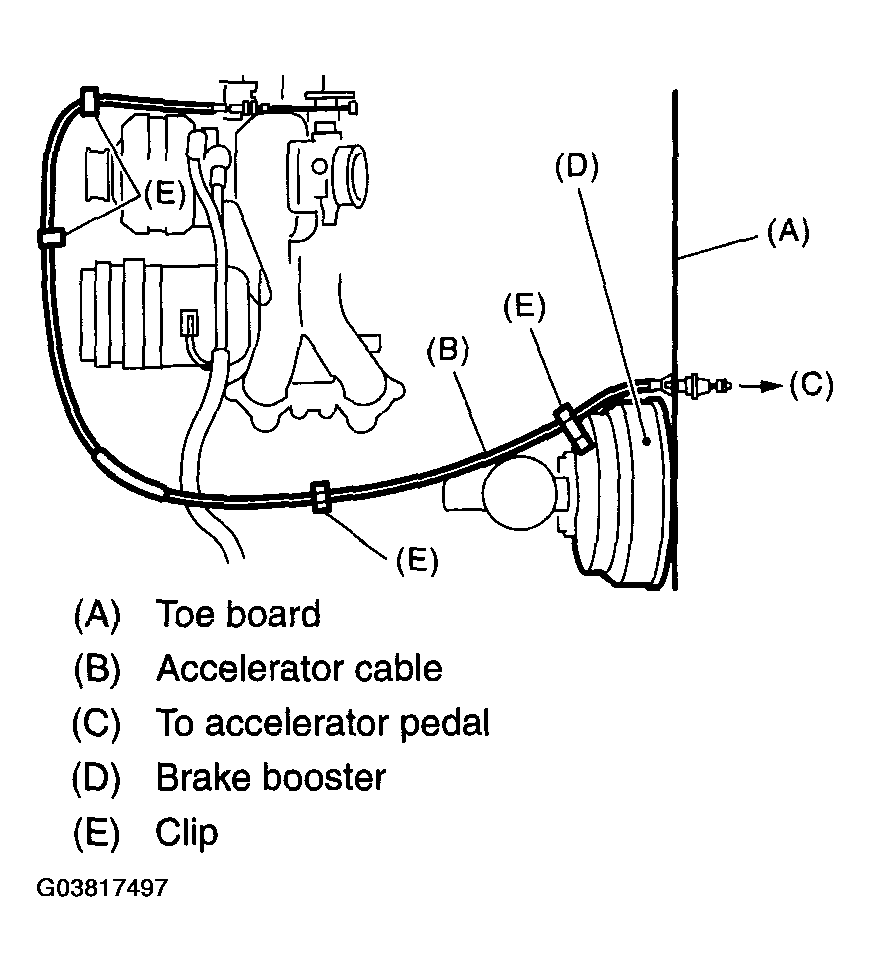

Fig 2: Removing Clip Inside Engine Compartment
Courtesy of SUBARU OF AMERICA, INC.
Remove the instrument panel lower cover from instrument panel.
Remove the accelerator pedal connecting bolt from accelerator pedal bracket.

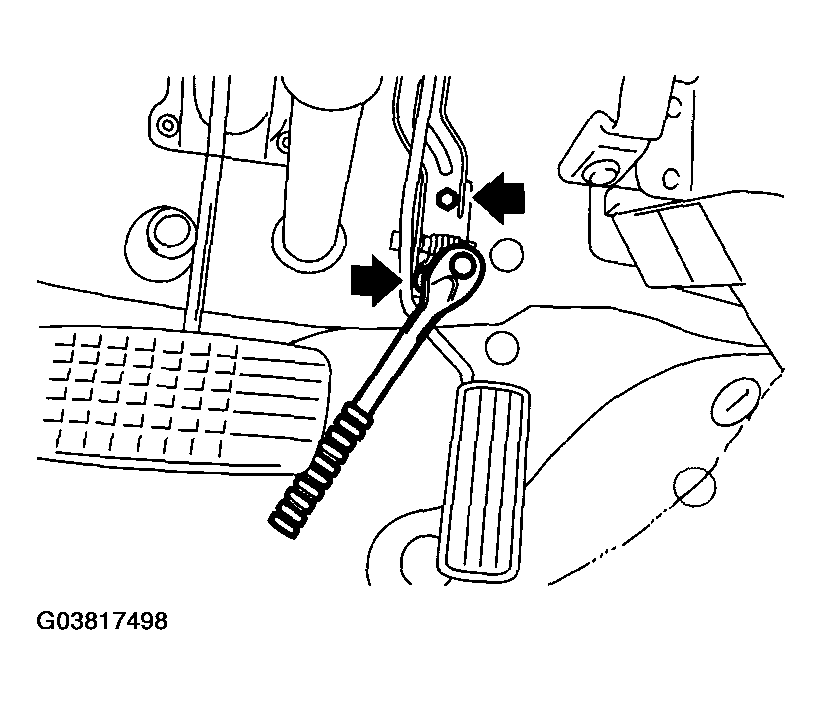

Fig 3: Removing Accelerator Pedal Connecting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the grommet from toe board.
NOTE: From inside compartment, push the grommet (A) into hole.

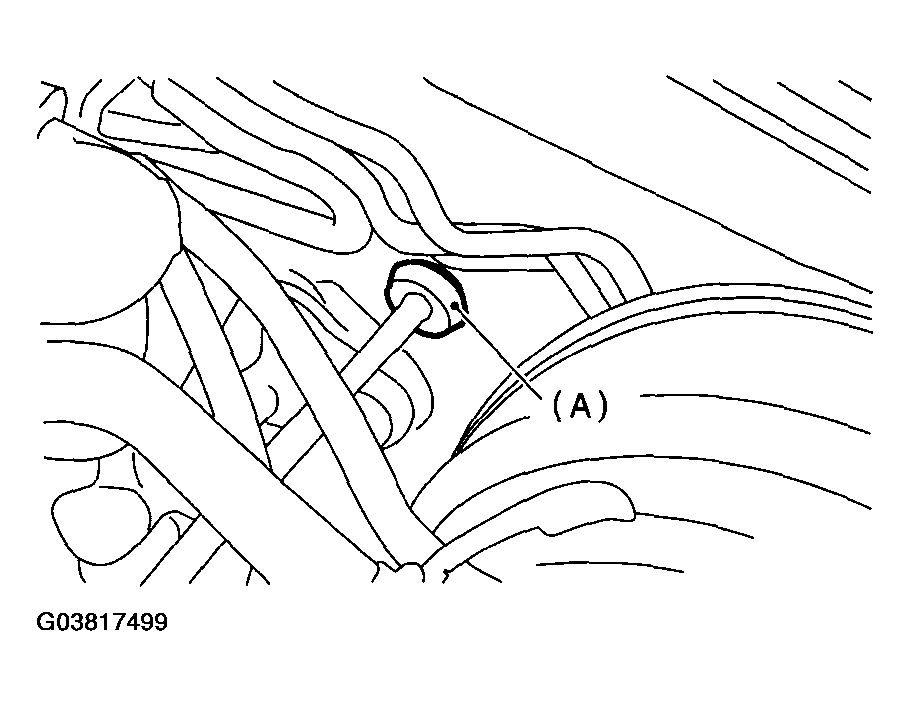

Fig 4: Pushing Grommet Into Hole
Courtesy of SUBARU OF AMERICA, INC.
Pull out the cable from toe board hole.
Disconnect the accelerator cable bushing from accelerator pedal lever.

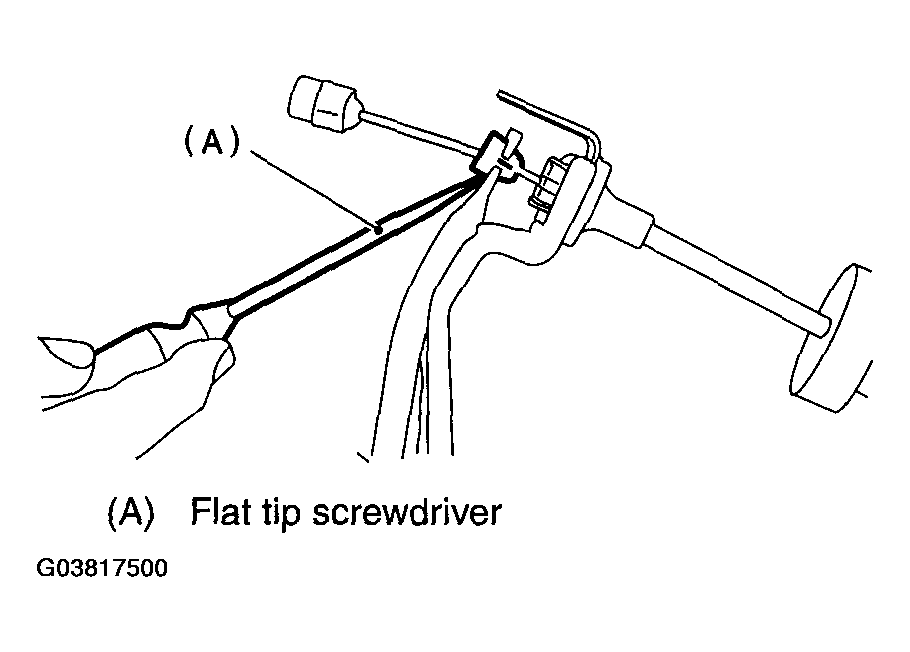

Fig 5: Disconnecting Accelerator Cable Bushing From Accelerator Pedal Lever
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the accelerator cable stopper (A) from bracket.

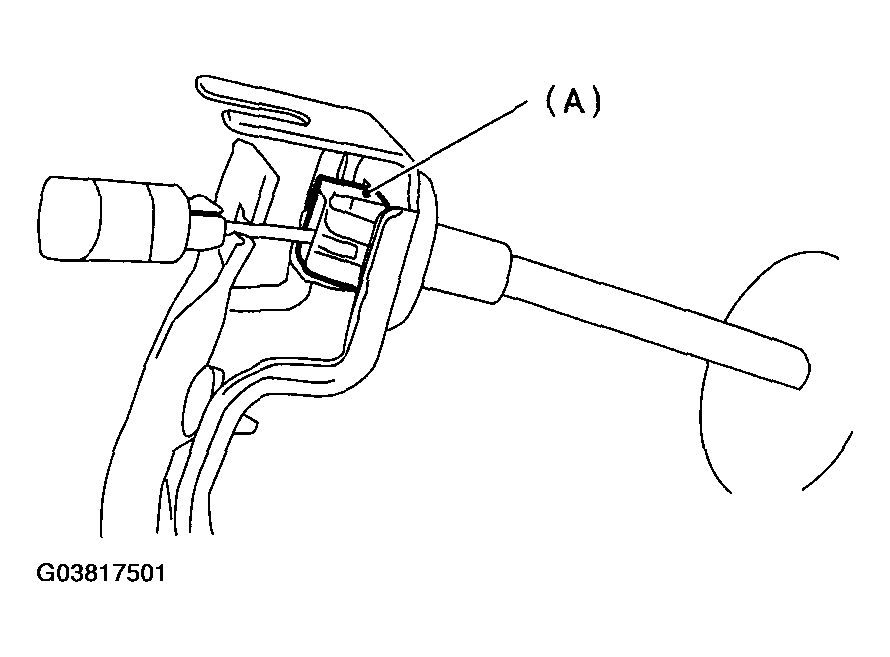

Fig 6: Disconnecting Accelerator Cable Stopper
Courtesy of SUBARU OF AMERICA, INC.
Separate the accelerator cable and bracket.
