Main Relay: Removal

  1. Disconnect the ground cable from battery.

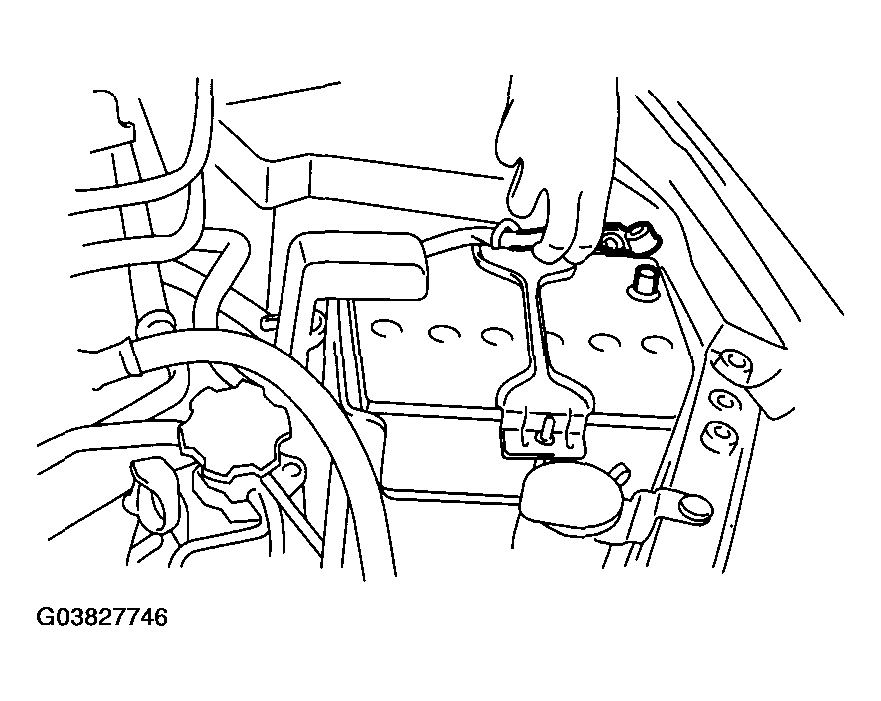

    Fig 1: Disconnecting Ground Cable From Battery
    G03827746Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Remove the harness cover (A).

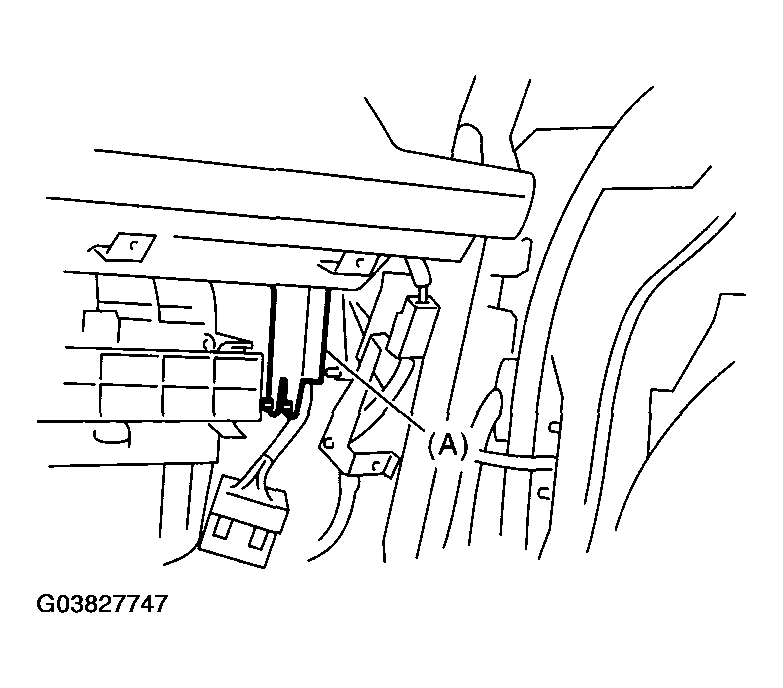

    Fig 2: Removing Harness Cover
    G03827747Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from main relay.

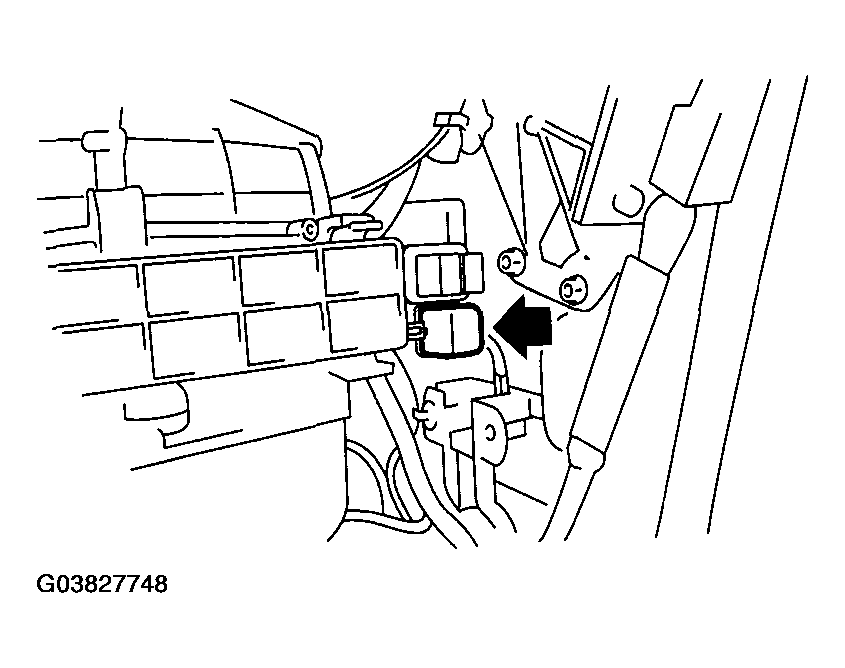

    Fig 3: Disconnecting Connector From Main Relay
    G03827748Courtesy of SUBARU OF AMERICA, INC.
