Spark Plug
>>
Removal
>>
RH Side
RH Side
Disconnect the ground cable from battery.

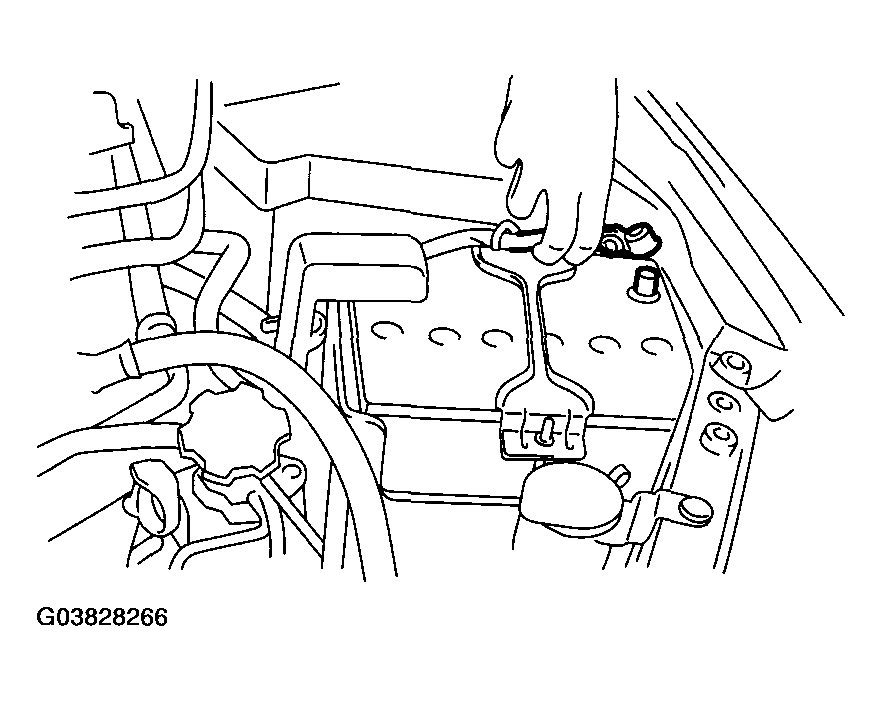

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case. < Ref. to
REMOVAL
, Air Cleaner Case. >
Remove the spark plug cords by pulling the boot. (Do not pull the cord itself.)

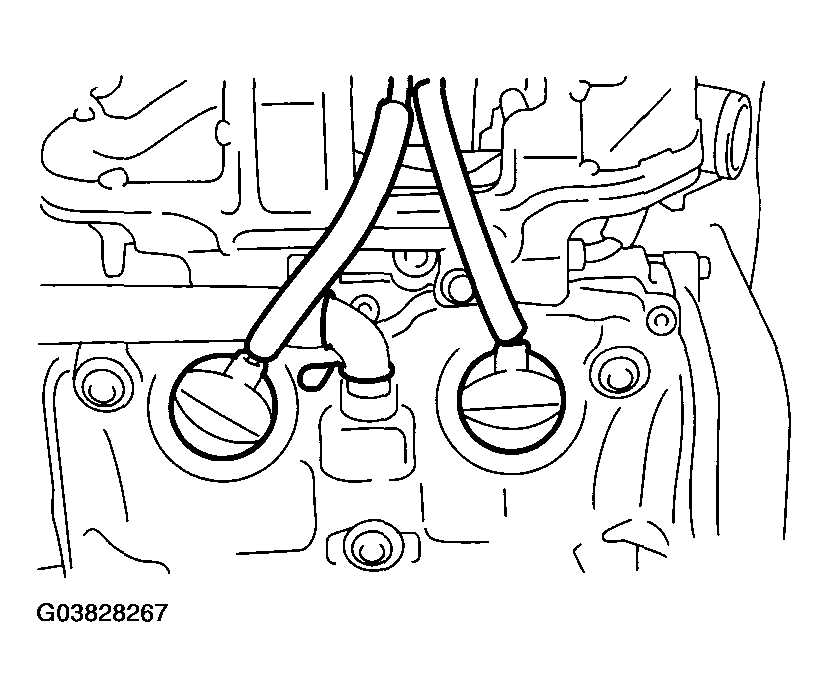

Fig 2: Removing Spark Plug Cords By Pulling Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plug with a spark plug socket.

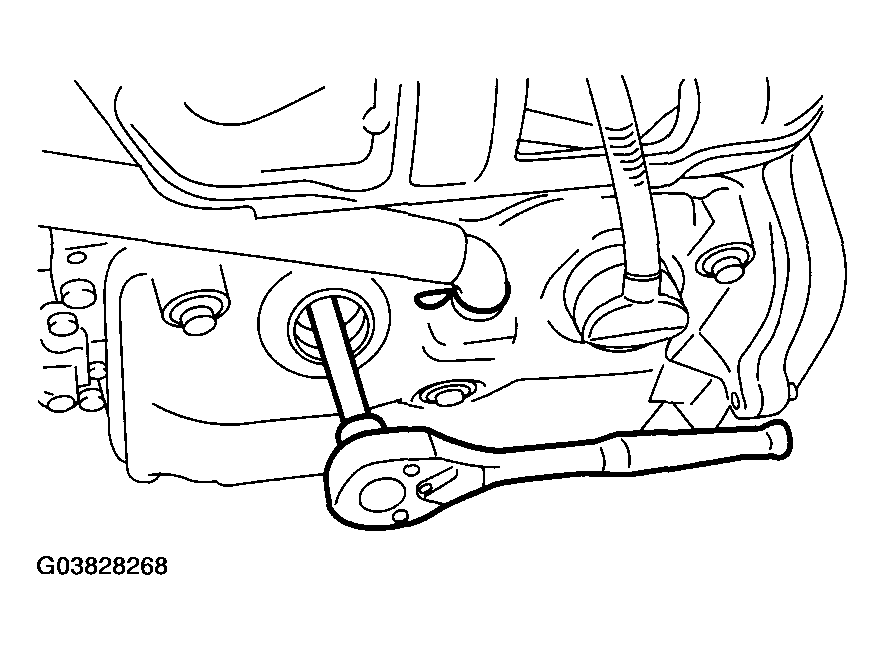

Fig 3: Removing Spark Plug With Spark Plug Socket
Courtesy of SUBARU OF AMERICA, INC.
