Data Link Connector: Note

This connector is used for Subaru Select Monitor.

CAUTION: Do not connect any scan tools except for Subaru Select Monitor or OBD-II general scan tool, because the circuit for Subaru Select Monitor may be damaged.

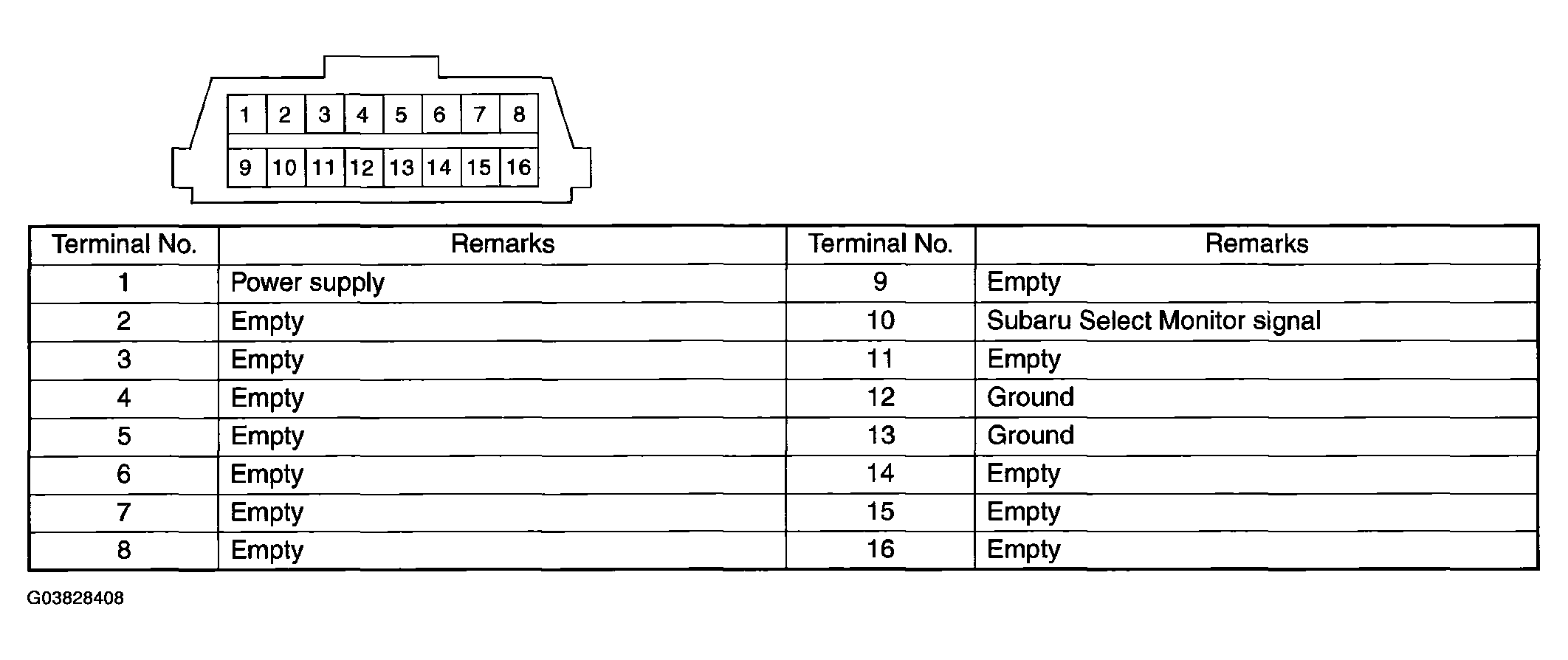

Fig 1: Identifying Data Link Connector Terminals
G03828408Courtesy of SUBARU OF AMERICA, INC.
