Adjustment

When adjusting the toe-in, adjust it to the following value.

Toe-in:

0+/-2 mm (0+/-0.08 in)

1. Check that the left and right wheel steering angle is within specifications.
2. Loosen the left and right side steering tie-rod lock nuts.
3. Turn the left and right tie rods equal amounts until the toe-in is at the specification.

   Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise by equal amount (viewing from the inside of vehicle).

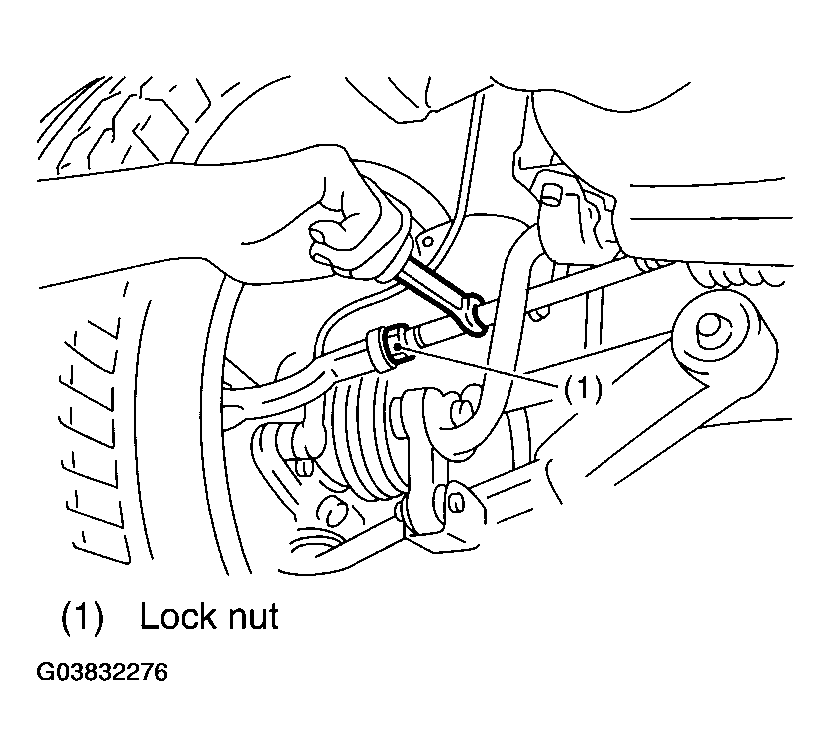

   Fig 1: Turning Tie-Rod

   Courtesy of SUBARU OF AMERICA, INC.
4. Tighten the tie-rod lock nut.

Tightening torque:

85 N.m (8.7 kgf-m, 62.7 ft-lb)
