Control Valve Body: Installation

Check that the dust and other foreign matters are not on control valve body.
Temporarily install the control valve body to transmission.
Install the oil cooler pipe.
Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)

Fig 1: Installing Oil Cooler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts equally.
Tightening torque:

8 N.m (0.8kgf-m, 5.8 ft-lb)

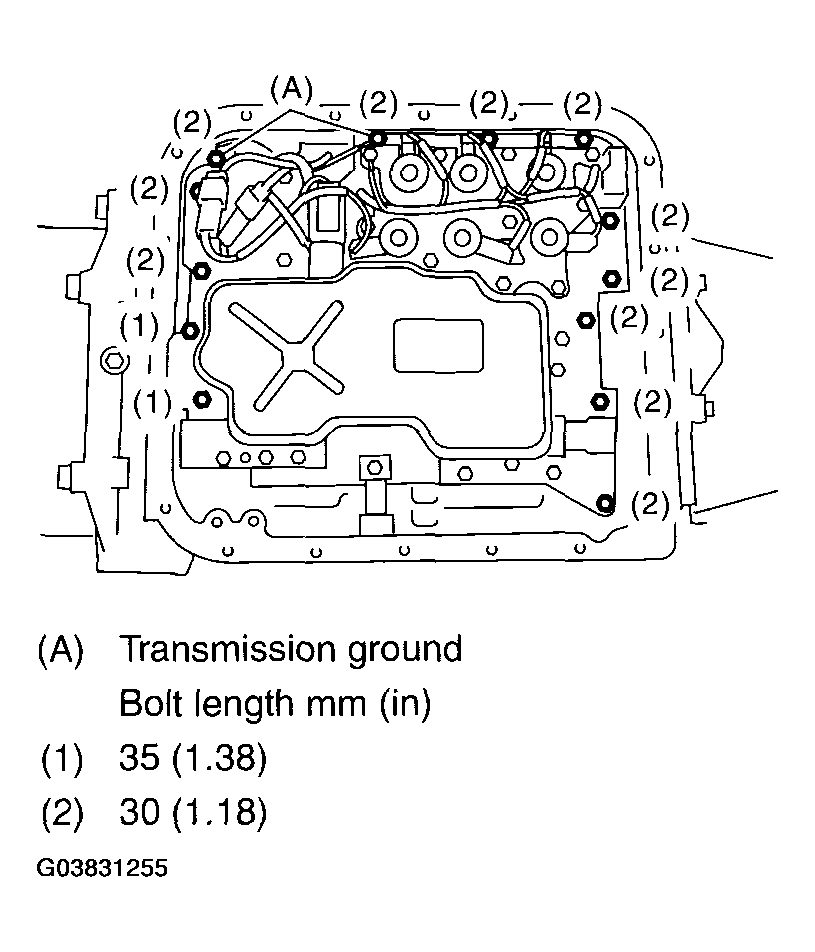

Fig 2: Tightening Bolts Sequence
Courtesy of SUBARU OF AMERICA, INC.
Connect the control valve connector.

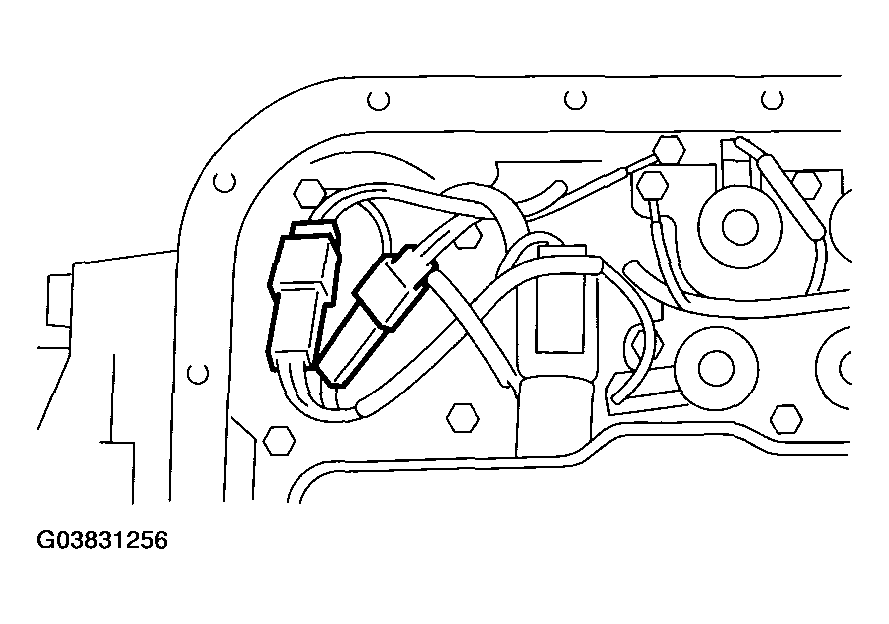

Fig 3: Connecting Control Valve Connector
Courtesy of SUBARU OF AMERICA, INC.

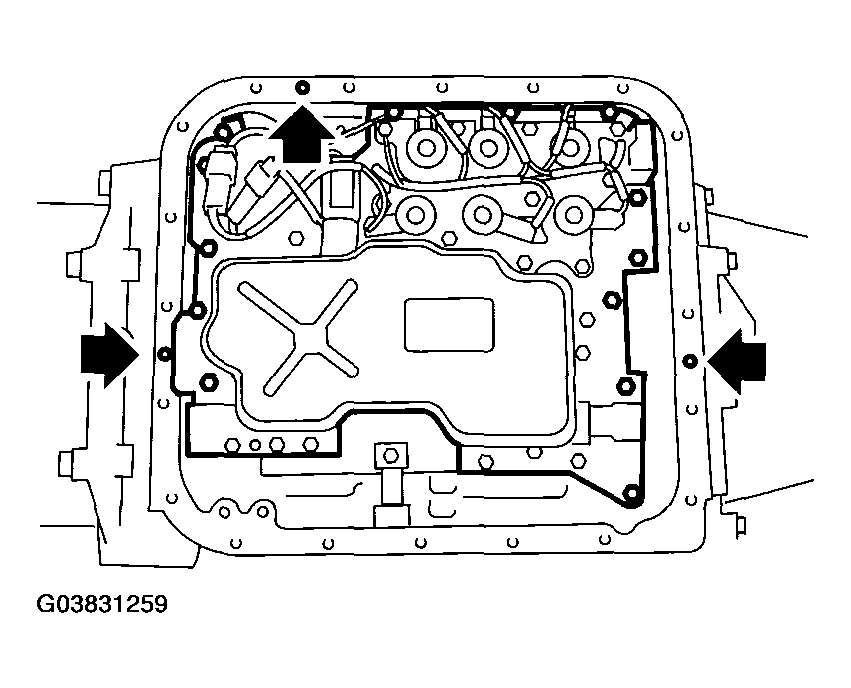

Attach the magnet at the specified position of oil pan.

Fig 4: Identifying Magnet
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the oil pan.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020)

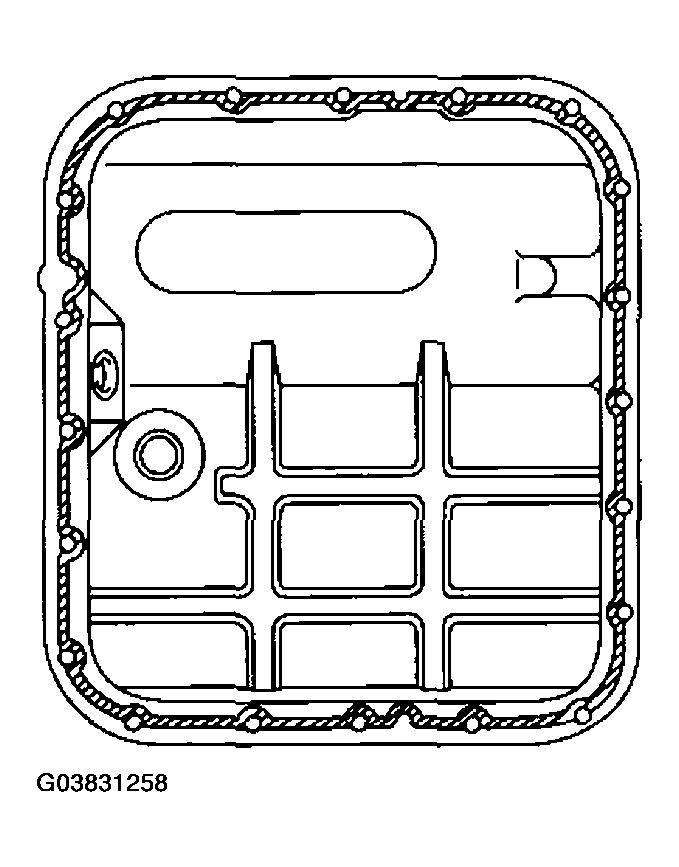

Fig 5: Applying Liquid Gasket To Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Fill liquid gasket to the holes except for bolt holes (three) of transmission case.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020)

Fig 6: Filling Liquid Gasket To Holes
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan with equally tighten the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.6 ft-lb)
Fill ATF from oil charge pipe.
Recommended fluid:

SUBARU ATF (Part No. K0410Y0700), Idemitsu "Apolloil ATF HP", Castrol "Transmax J", Pennzoil Quakerstate "Pennzoil ATF-J" or Dexron III

Capacity:

Fill the same amount of ATF drained.
Bleed the air of control valve. < Ref. to , AIR BLEEDING OF CONTROL VALVE . >
Check the ATF level.
< Ref. to , AUTOMATIC TRANSMISSION FLUID . >
Execute the learning control promotion. < Ref. to FACILITATION OF LEARNING CONTROL , OPERATION, Subaru Select Monitor. >
