Side Retainer

  1. Install the bearing outer race to side retainer.
  2. Install a new oil seal using ST and hammer.

    ST 18675AA000 DIFFERENTIAL SIDE OIL

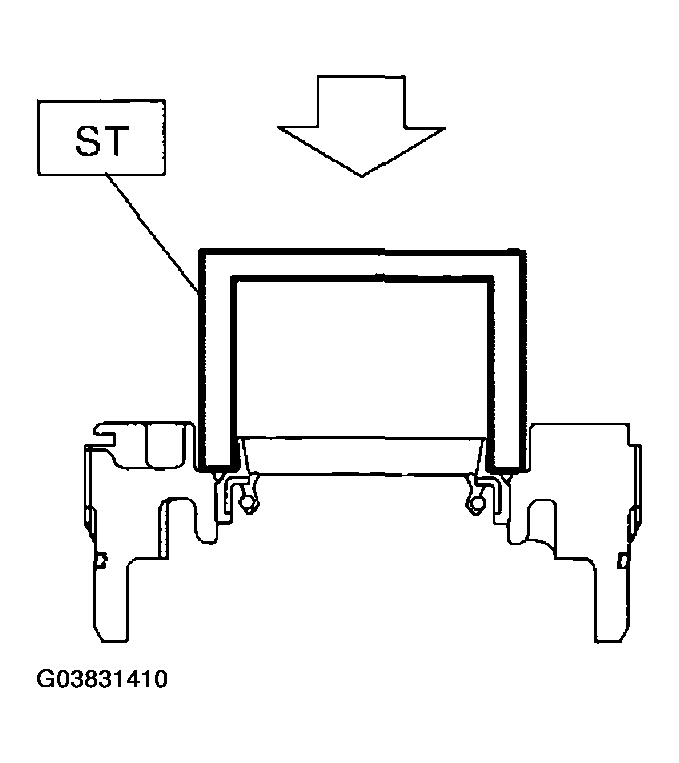

    Fig 1: Installing Oil Seal Using ST And Hammer
    G03831410Courtesy of SUBARU OF AMERICA, INC.
  3. Apply gear oil to a new O-ring and install it.

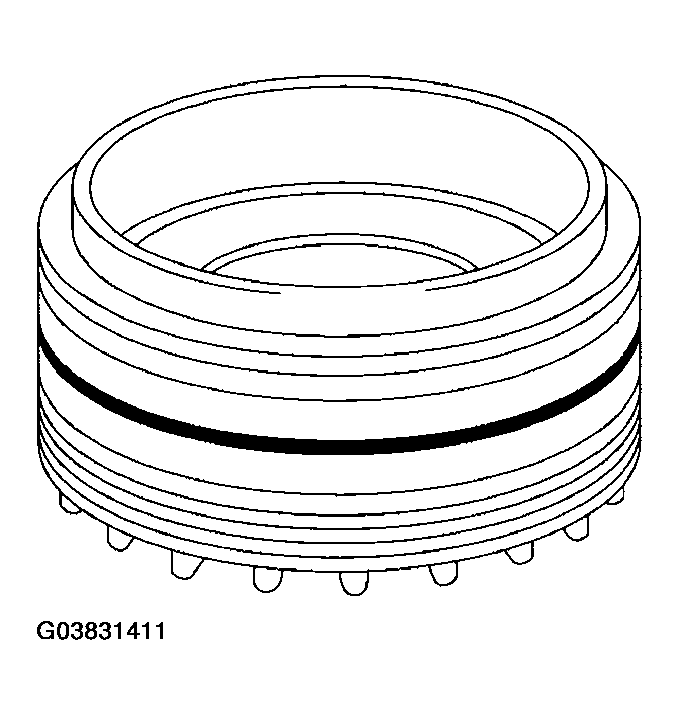

Fig 2: Identifying O-Ring
G03831411Courtesy of SUBARU OF AMERICA, INC.
