Front Vehicle Speed Sensor: Installation

  1. Pass the harness assembly through the hole in transmission case.
    Fig 1: Installing Harness Connector
    G03831241Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the harness connector and transmission ground.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

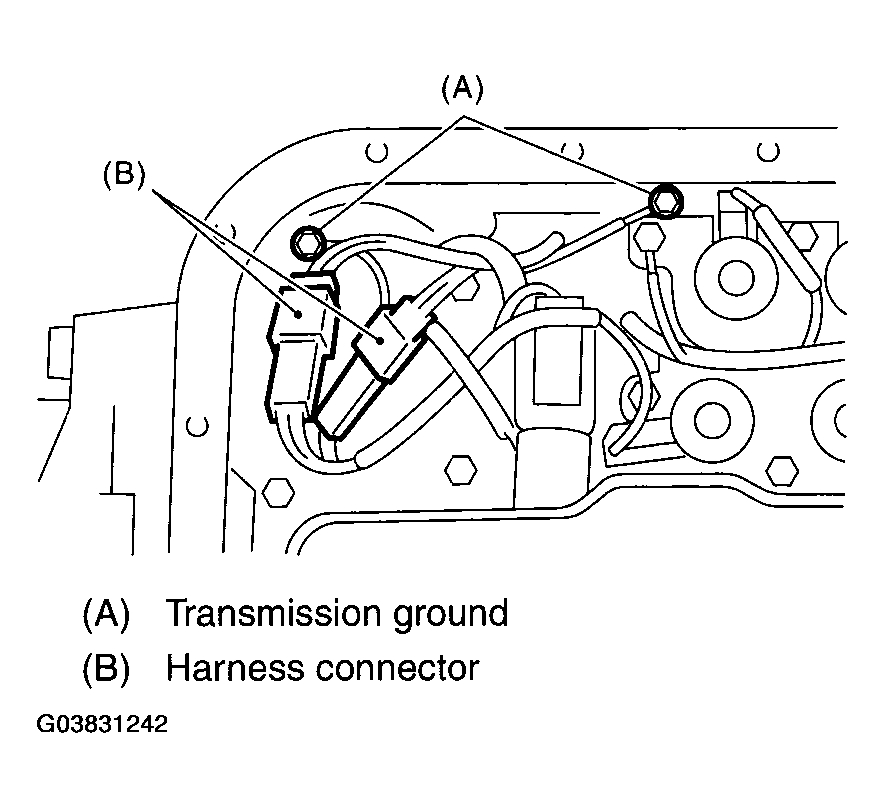

    Fig 2: Installing Harness Connector And Transmission Ground Terminal
    G03831242Courtesy of SUBARU OF AMERICA, INC.
  3. Apply proper amount of liquid gasket to the entire oil pan mating surface.

    Liquid gasket:

    THREE BOND 1217B (Part No. K0877YA020)

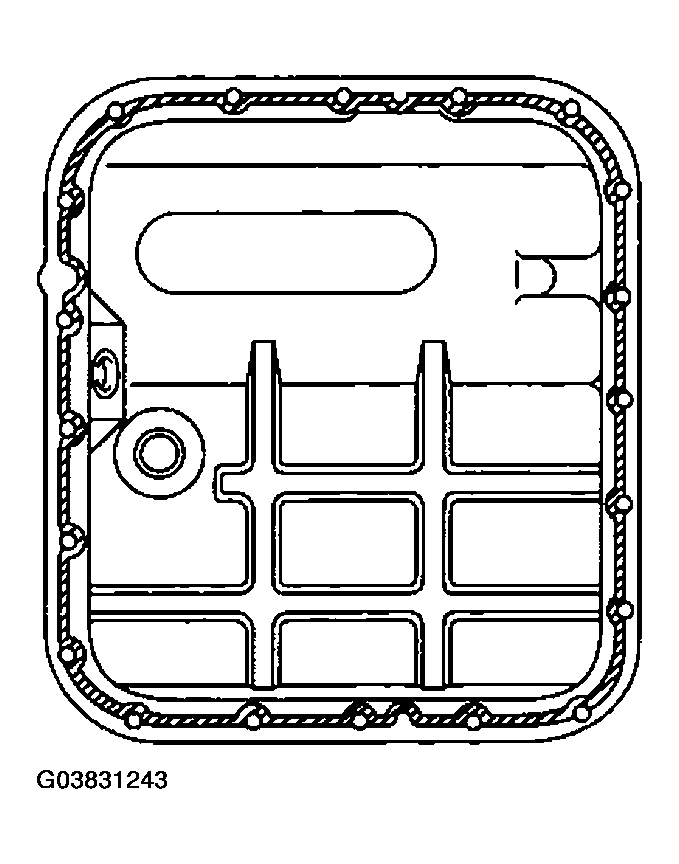

    Fig 3: Applying Proper Amount Of Liquid Gasket To Entire Oil Pan Mating Surface
    G03831243Courtesy of SUBARU OF AMERICA, INC.
  4. Apply liquid gasket fully to the three holes other than screw holes on the transmission case

    Liquid gasket:

    THREE BOND 1217B (Part No. K0877YA020)

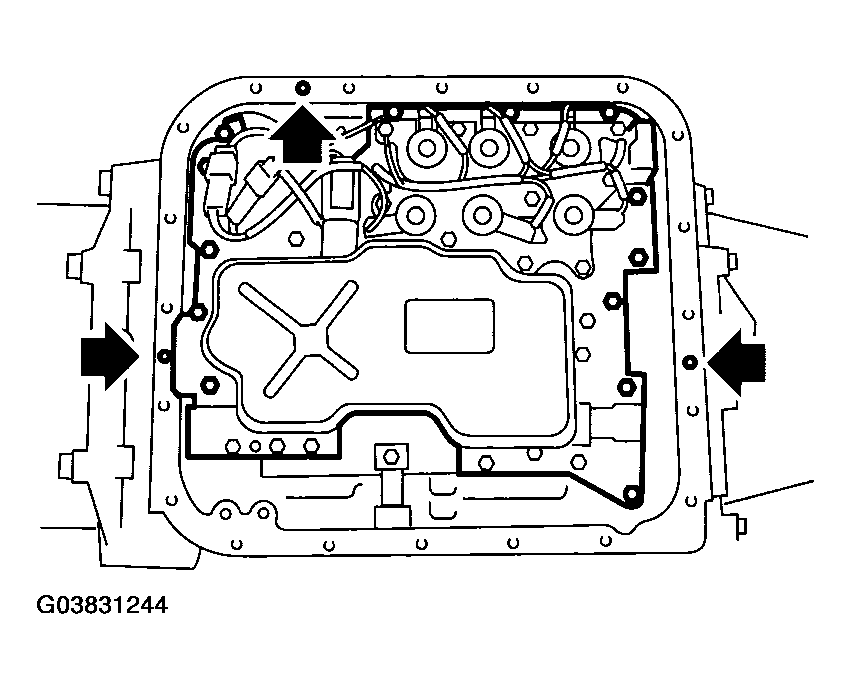

    Fig 4: Applying Liquid Gasket To Holes Other Than Screw Holes On Transmission Case
    G03831244Courtesy of SUBARU OF AMERICA, INC.
  5. Install the oil pan.

    Tightening torque:

    5 N.m (0.5kgf-m, 3.6 ft-lb)

  6. Install the front vehicle speed sensor and torque converter turbine speed sensor.

    Tightening torque:

    7 N.m (0.7kgf-m, 5.1 ft-lb)

  7. Connect the connector to rear vehicle speed sensor.

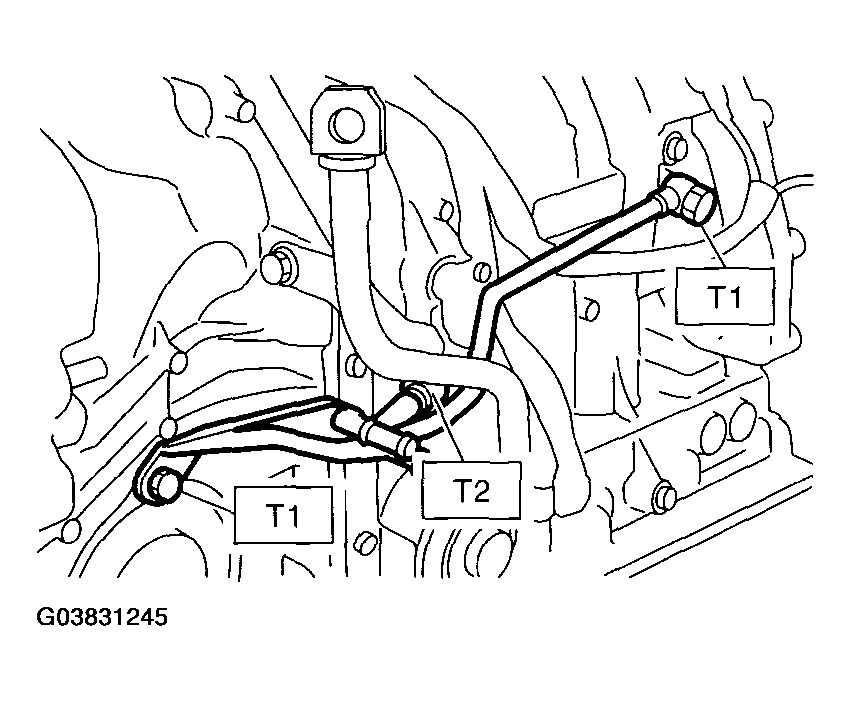

  8. Install the oil cooler pipe.
    NOTE: Use a copper washer.

    Tightening torque:

    T1:25 N.m (2.5 kgf-m, 18 ft-lb)

    T2: 44 N.m (4.5kgf-m, 32.5 ft-lb)

    Fig 5: Connecting Connector To Rear Vehicle Speed Sensor
    G03831245Courtesy of SUBARU OF AMERICA, INC.
  9. Install the transmission rear crossmember bolt.

    Tightening torque:

    75 N.m (7.6kgf-m, 55 ft-lb)

  10. Install the propeller shaft. < Ref. to , INSTALLATION , Propeller Shaft. >
  11. Install the shield cover.
  12. Install the front, center and rear exhaust pipes and muffler. < Ref. to INSTALLATION , Front Exhaust Pipe.> < Ref. to INSTALLATION , Rear Exhaust Pipe.> < Ref. to INSTALLATION , Muffler. >
  13. Lower the vehicle.
  14. Install the transmission connector to the stay.
  15. Install the pitching stopper. < Ref. to , INSTALLATION , Transmission Mounting System. >
  16. Install the air intake chamber.

    < Ref. to INSTALLATION , Air Intake Chamber. >

  17. Fill the same amount of ATF drained.
  18. Bleed the air of control valve.

    < Ref. to , AIR BLEEDING OF CONTROL VALVE . >

  19. Check the level of ATF. < Ref. to , AUTOMATIC TRANSMISSION FLUID . >
  20. Execute the learning control promotion. < Ref. to FACILITATION OF LEARNING CONTROL , OPERATION, Subaru Select Monitor. >
