Ignition Key Lock: Replacement

  1. Disconnect the ground cable from battery.
  2. Remove the steering column. < Ref. to REMOVAL , Tilt Steering Column. >
  3. Secure the steering column in a vise. Remove the bolt with a drill.

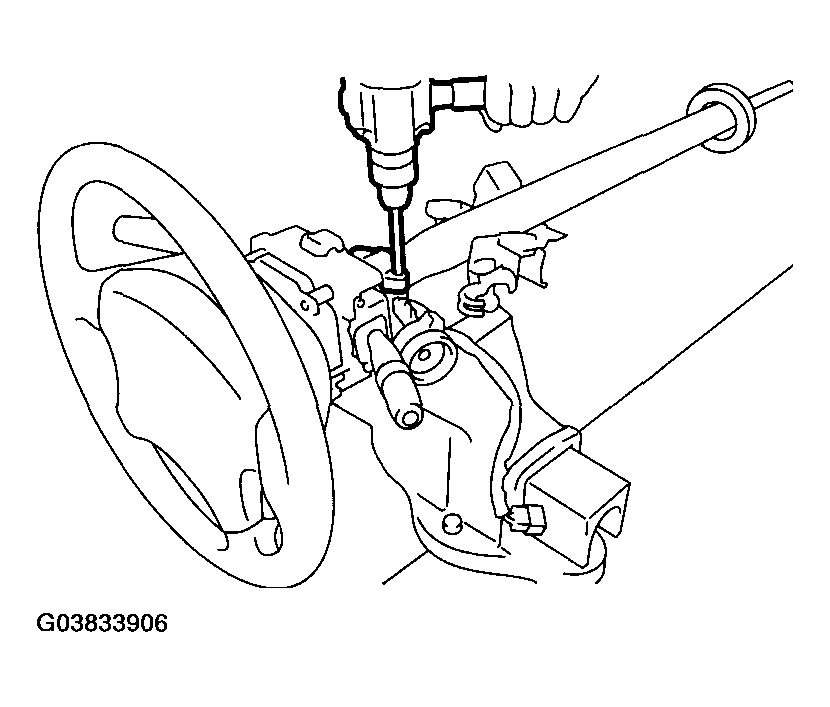

    Fig 1: Removing Bolt With Drill
    G03833906Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ignition key lock.
  5. Using a new bolt, tighten the bolts all the way.

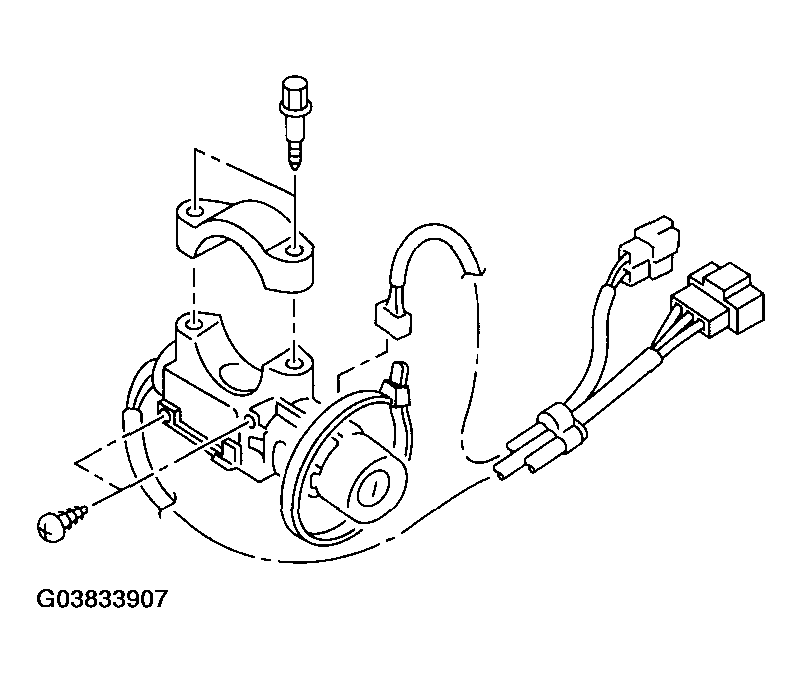

Fig 2: Tightening Bolts
G03833907Courtesy of SUBARU OF AMERICA, INC.
