Key Lock Cylinders: Replacement

  1. Raise the front door glass to the top position.
  2. Remove the door trim. < Ref. to REMOVAL , Door Trim. >
  3. Remove the sealing cover.
  4. Remove the rod clamp. Remove the bolt. Replace the key cylinder (1).

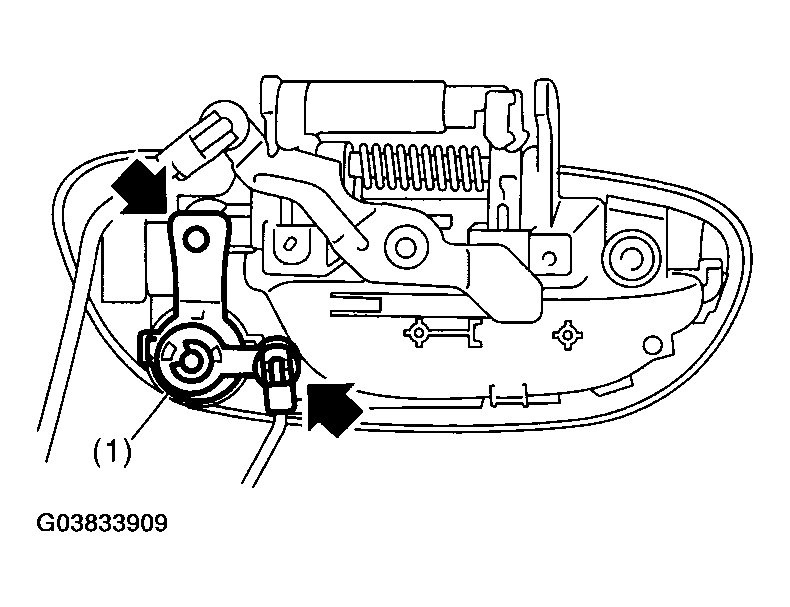

Fig 1: Removing Rod Clamp
G03833909Courtesy of SUBARU OF AMERICA, INC.
