Home >> Subaru >> 2005 >> Outback R >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security And Locks >> Keyless Entry Control Unit >> Removal

Keyless Entry Control Unit: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Remove the screw, then remove the keyless entry control module while disconnecting the connector.

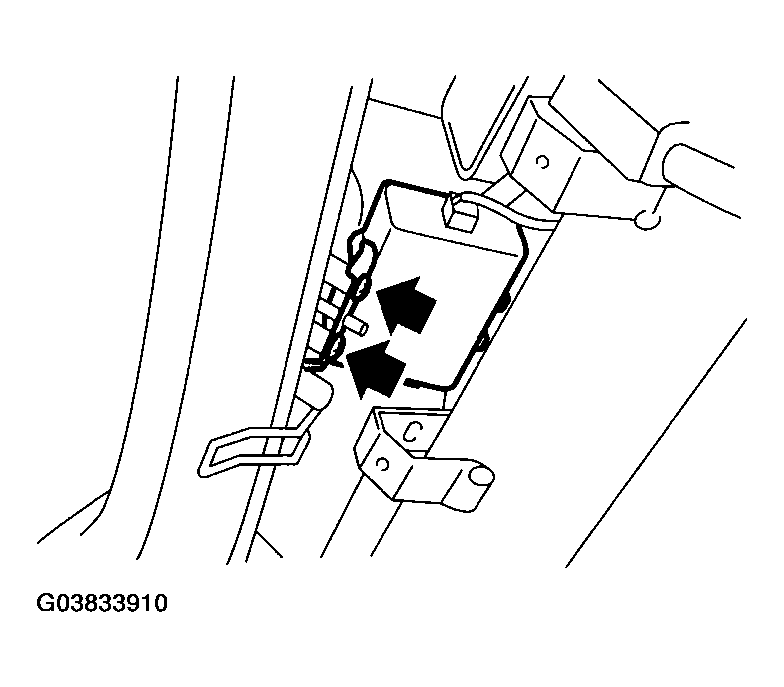

Fig 1: Removing Screw
G03833910Courtesy of SUBARU OF AMERICA, INC.
