Body Sealing: Specification

Used material:

Three Bond 4101 (004403063)

• Common for wagon and sedan model

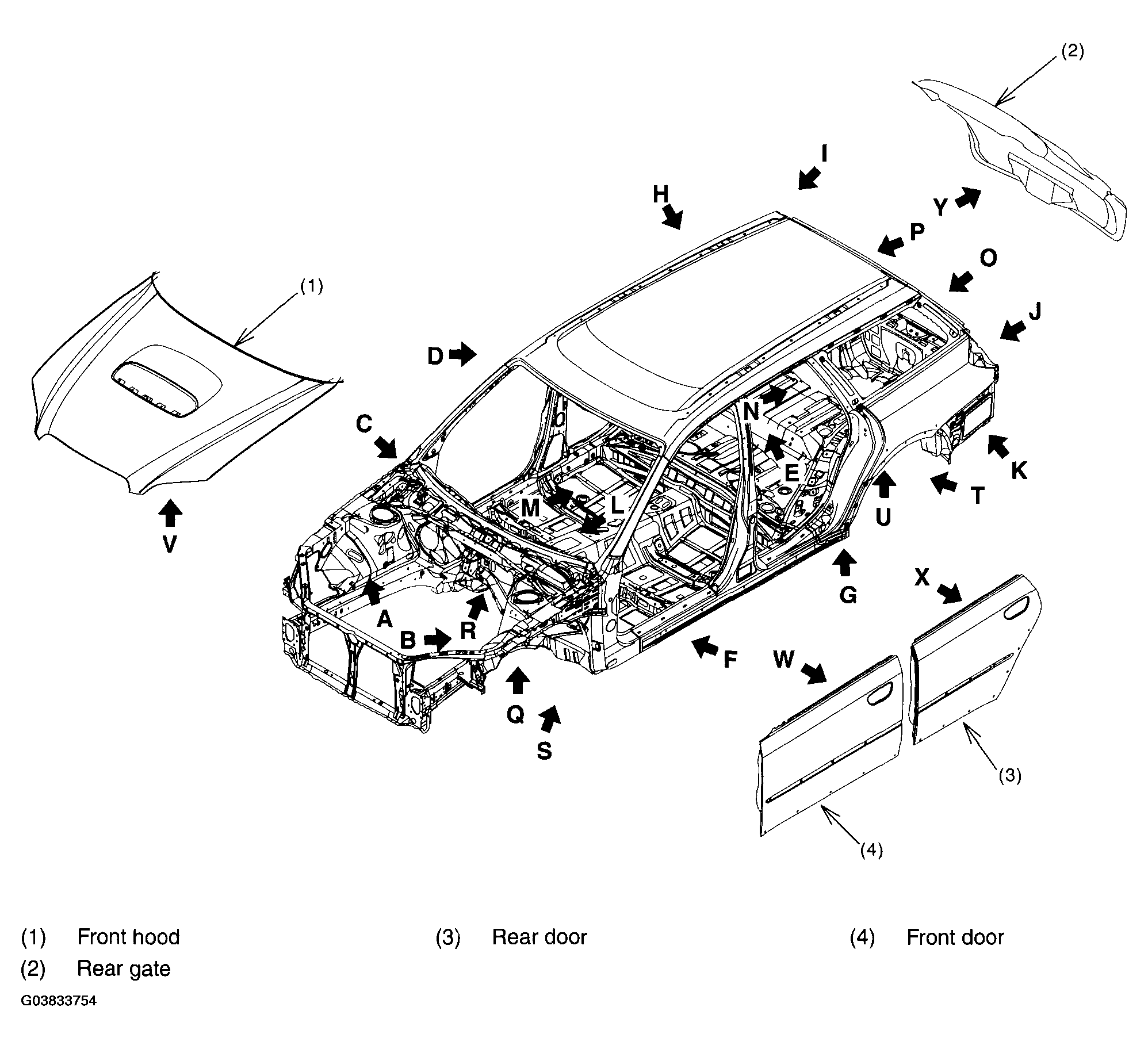

  Fig 1: Identifying Body Sealing Specification (Common For Wagon And Sedan Model) (1 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.

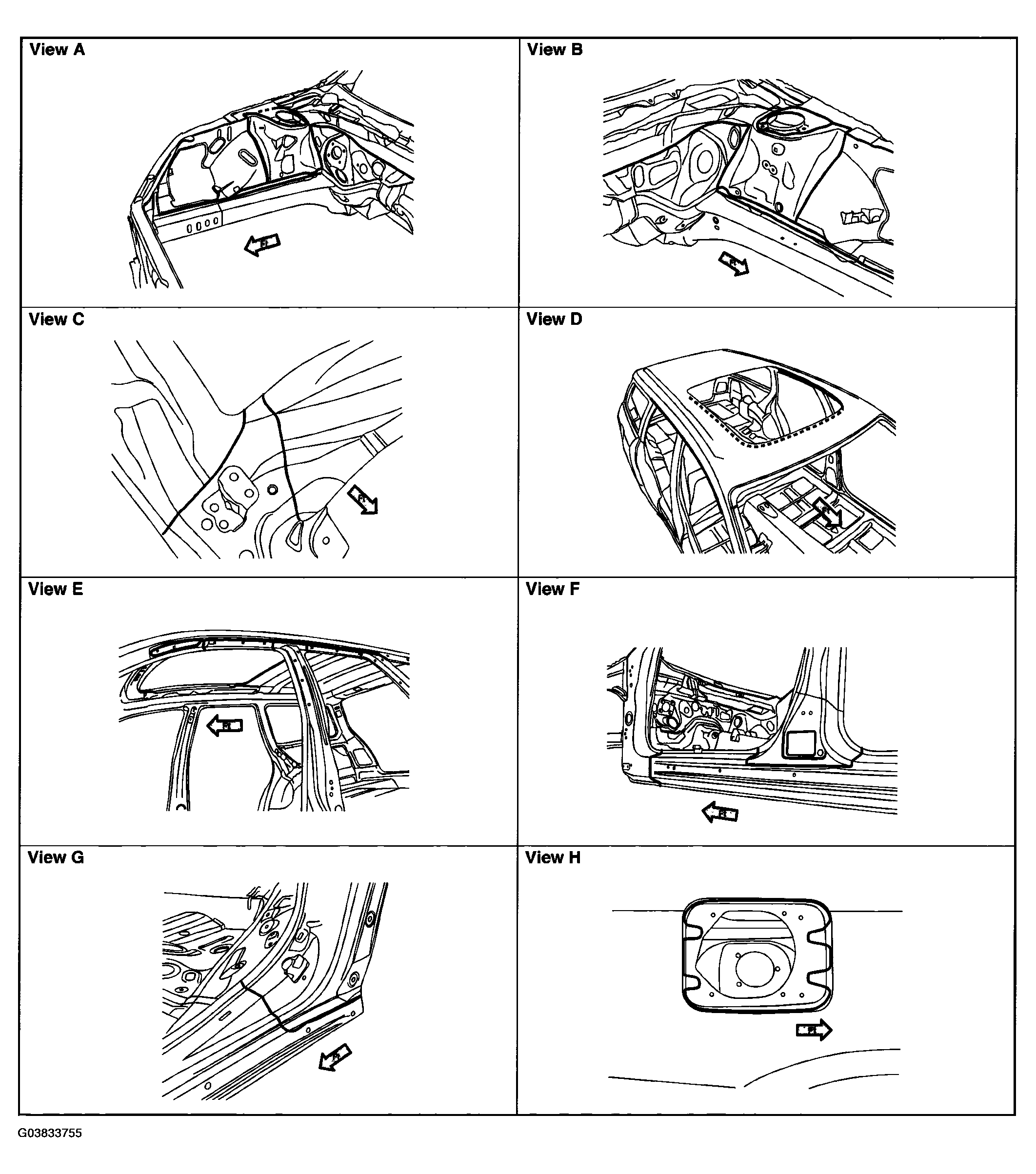

  Fig 2: Identifying Body Sealing Specification (Common For Wagon And Sedan Model) (2 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.

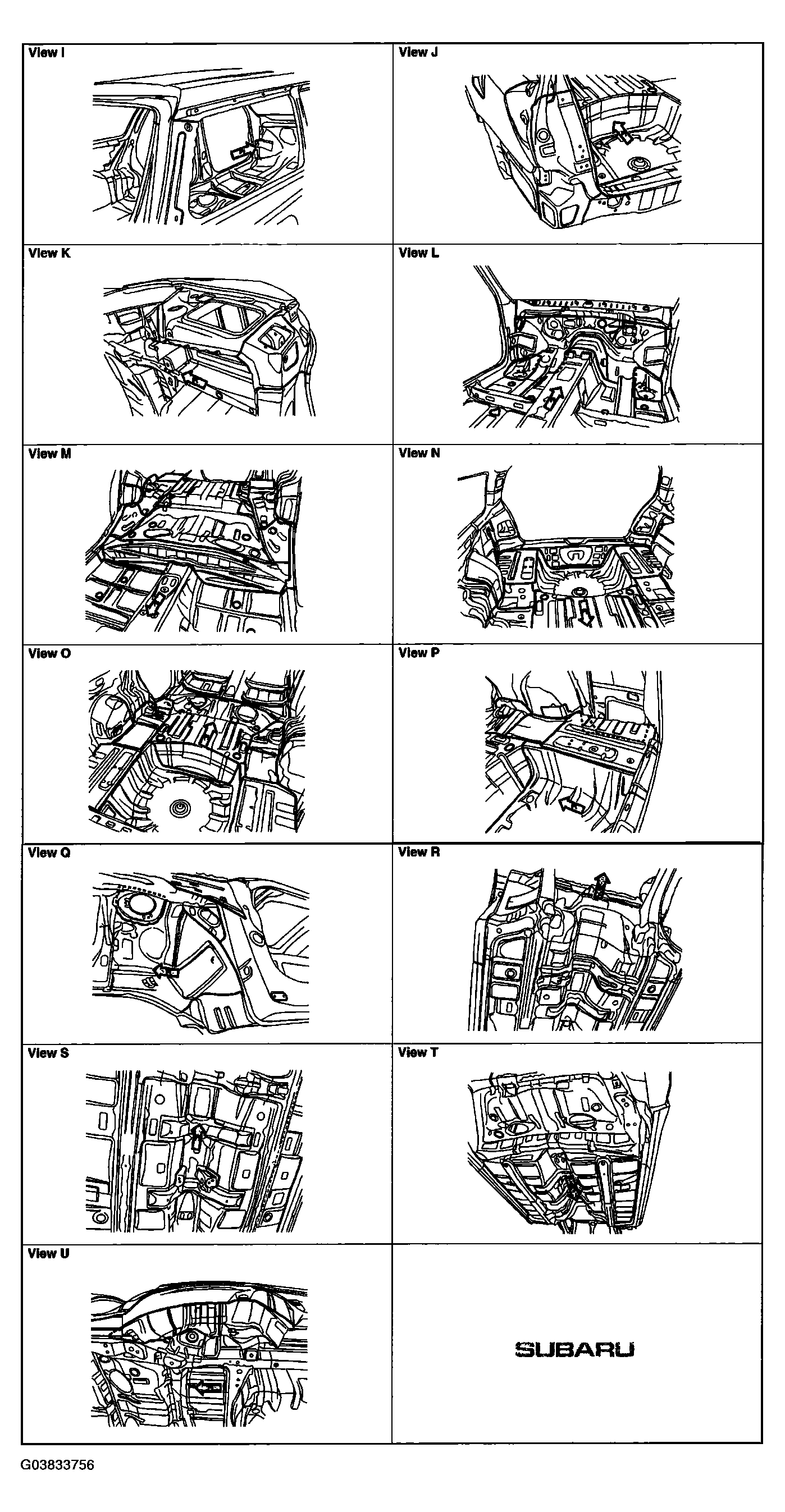

  Fig 3: Identifying Body Sealing Specification (Common For Wagon And Sedan Model) (3 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.

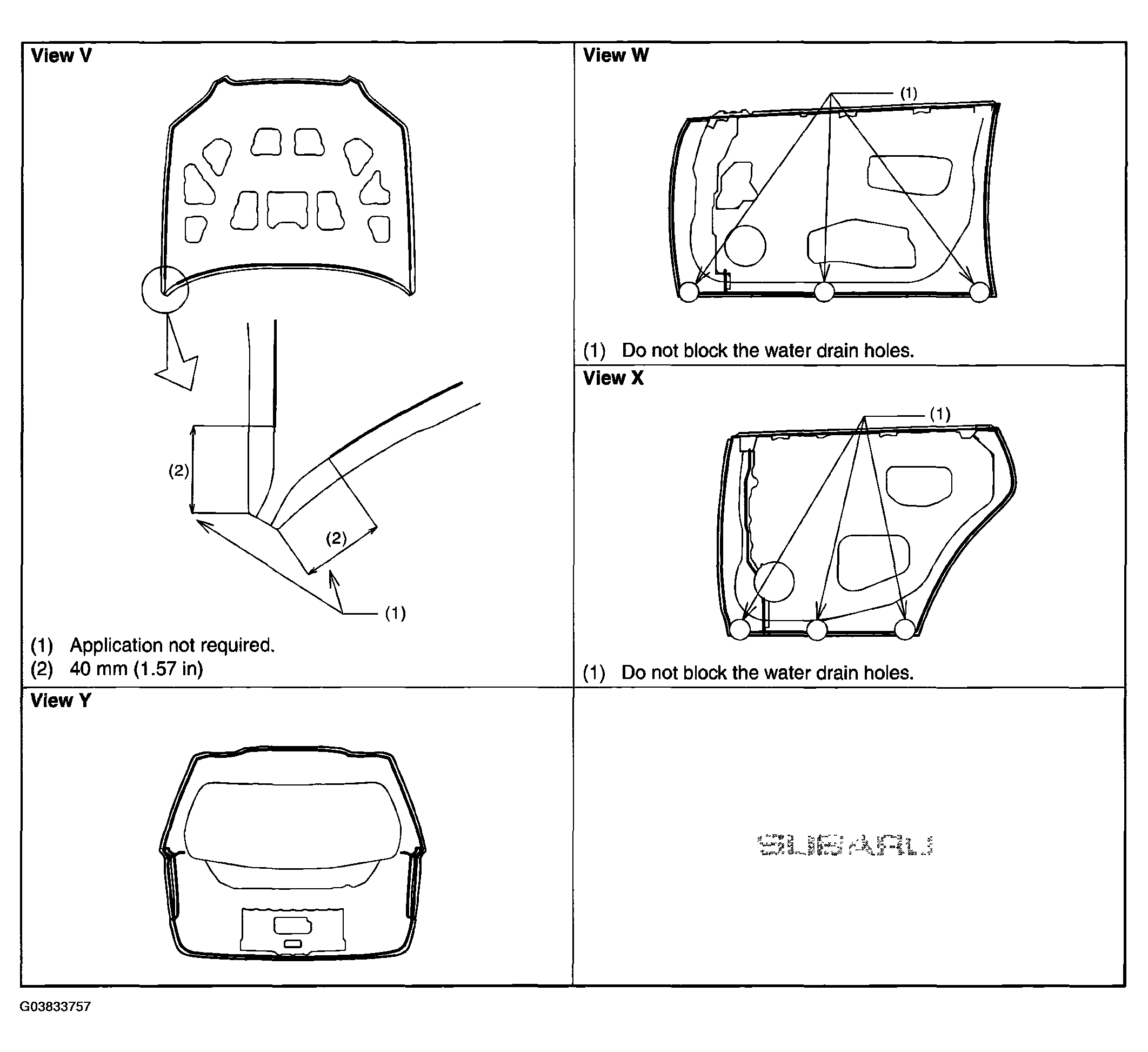

  Fig 4: Identifying Body Sealing Specification (Common For Wagon And Sedan Model) (4 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.
  CAUTION: Sealer already has been applied to hood, door, and rear gate in replacement condition.
• Sedan model

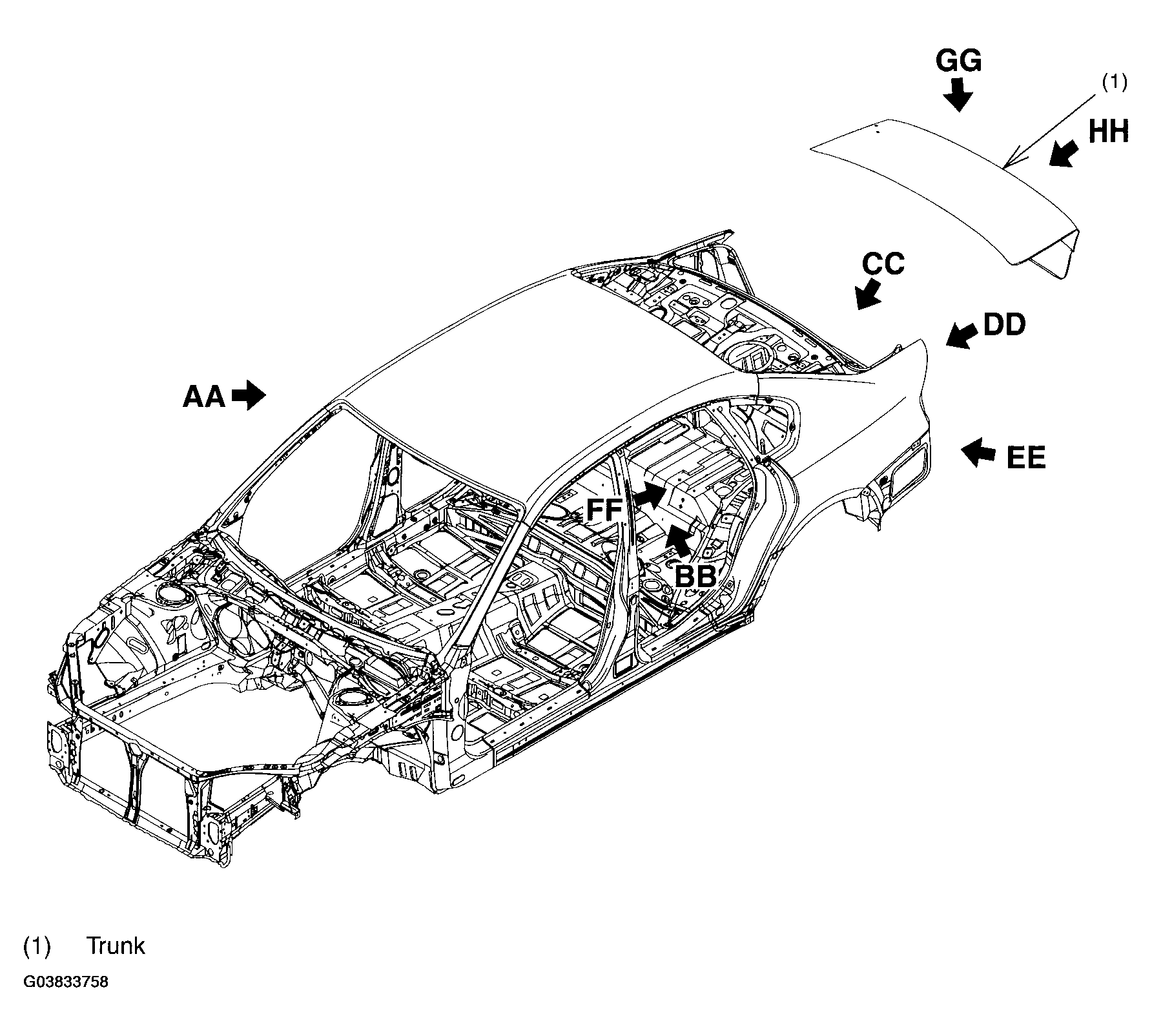

  Fig 5: Identifying Body Sealing Specification (Sedan Model) (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

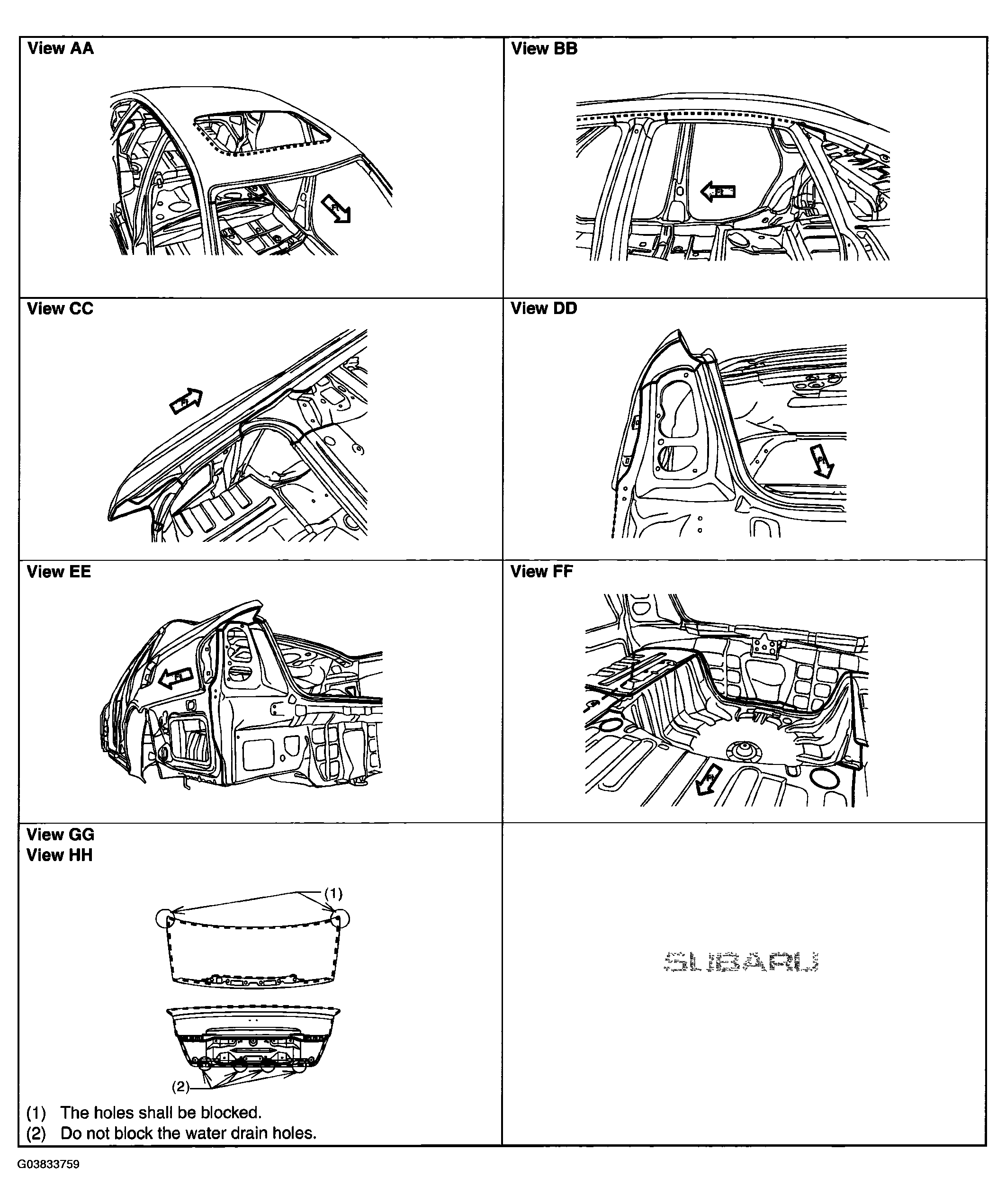

  Fig 6: Identifying Body Sealing Specification (Sedan Model) (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.
  CAUTION: Sealer already has been applied to the trunk in replacement condition.
