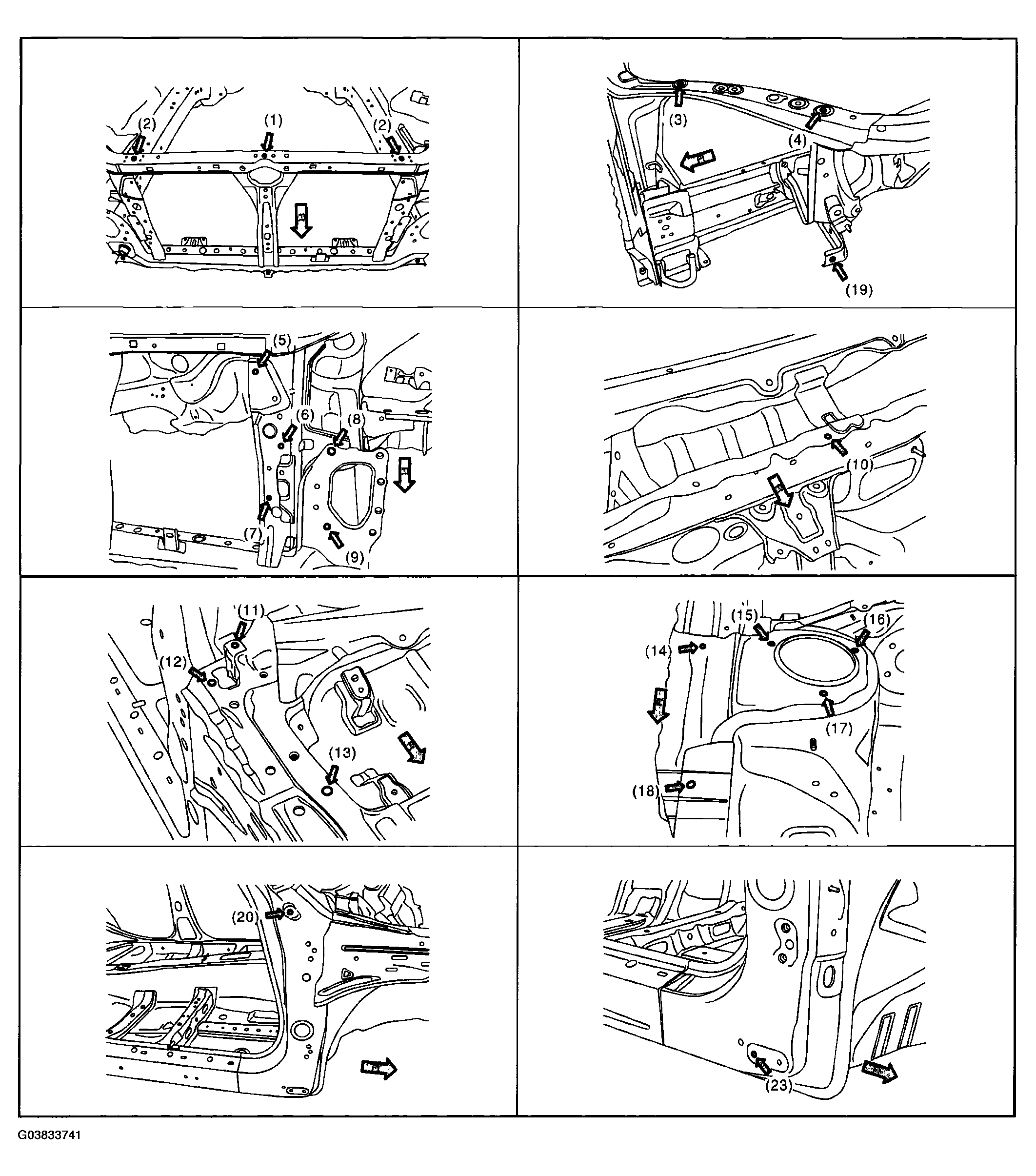

Front Structure
- Common for wagon and sedan model
POINT DIMENSION SPECIFICATION
| Measuring point | Reference dimension mm (in) |
|---|---|
| (1) - (10) | 893(35.16) |
| (2) - (10) | 948 (37.32) |
| (3) - (10) | 934 (36.77) |
| (4) - (10) | 918(36.14) |
| (4) - (4) | 1,314(51.73) |
| (5) - (5) | 658(25.91) |
| (6) - (6) | 740(29.13) |
| (7) - (7) | 700 (27.56) |
| (8) - (8) | 900 (35.43) |
| (9) - (9) | 900 (35.43) |
| (10) - (11) | 755 (29.72) |
| (10) - (12) | 794(31.26) |
| (10) - (13) | 707 (27.83) |
| (10) - (14) | 745 (29.33) |
| (10) - (15) | 639(25.16) |
| (10) - (16) | 512(20.16) |
| (10) - (17) | 585 (23.03) |
| (10) - (18) | 804(31.65) |
| (11) - (11) | 1,422 (55.98) |
| (12) - (12) | 1,508 (59.37) |
| (13) - (13) | 1,402 (55.20) |
| (14) - (14) | 1,472 (57.95) |
| (15) - (15) | 1,258(49.53) |
| (16) - (16) | 995(39.17) |
| (17) - (17) | 1,104(43.46) |
| (18) - (18) | 1,456(57.32) |
| (19) - (20) | 1,064(41.89) |
| (19) - (23) | 1,035 (40.75) |
NOTE:
- The reference points (1) and (10) are at the body center, while the other points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.
