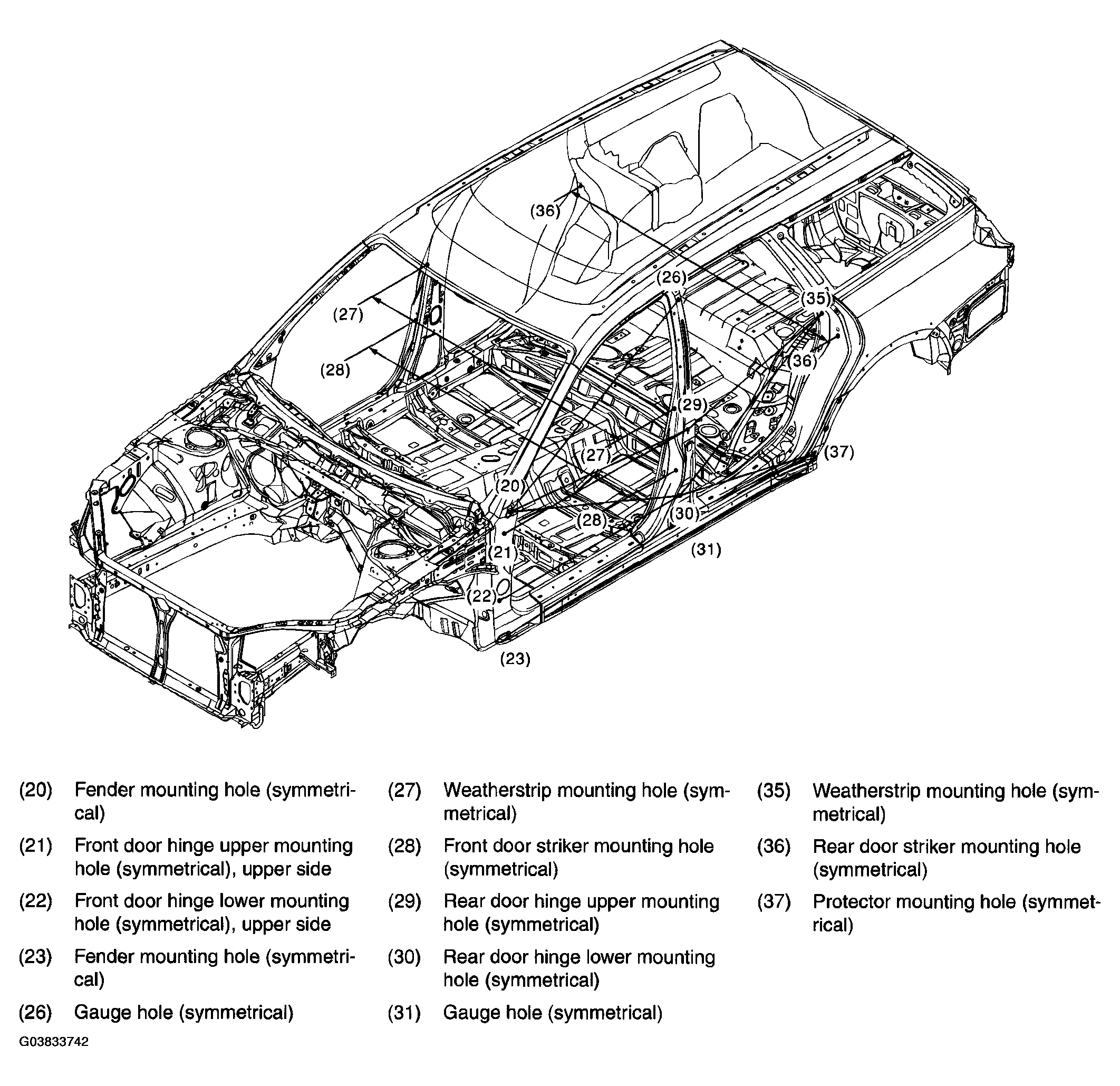

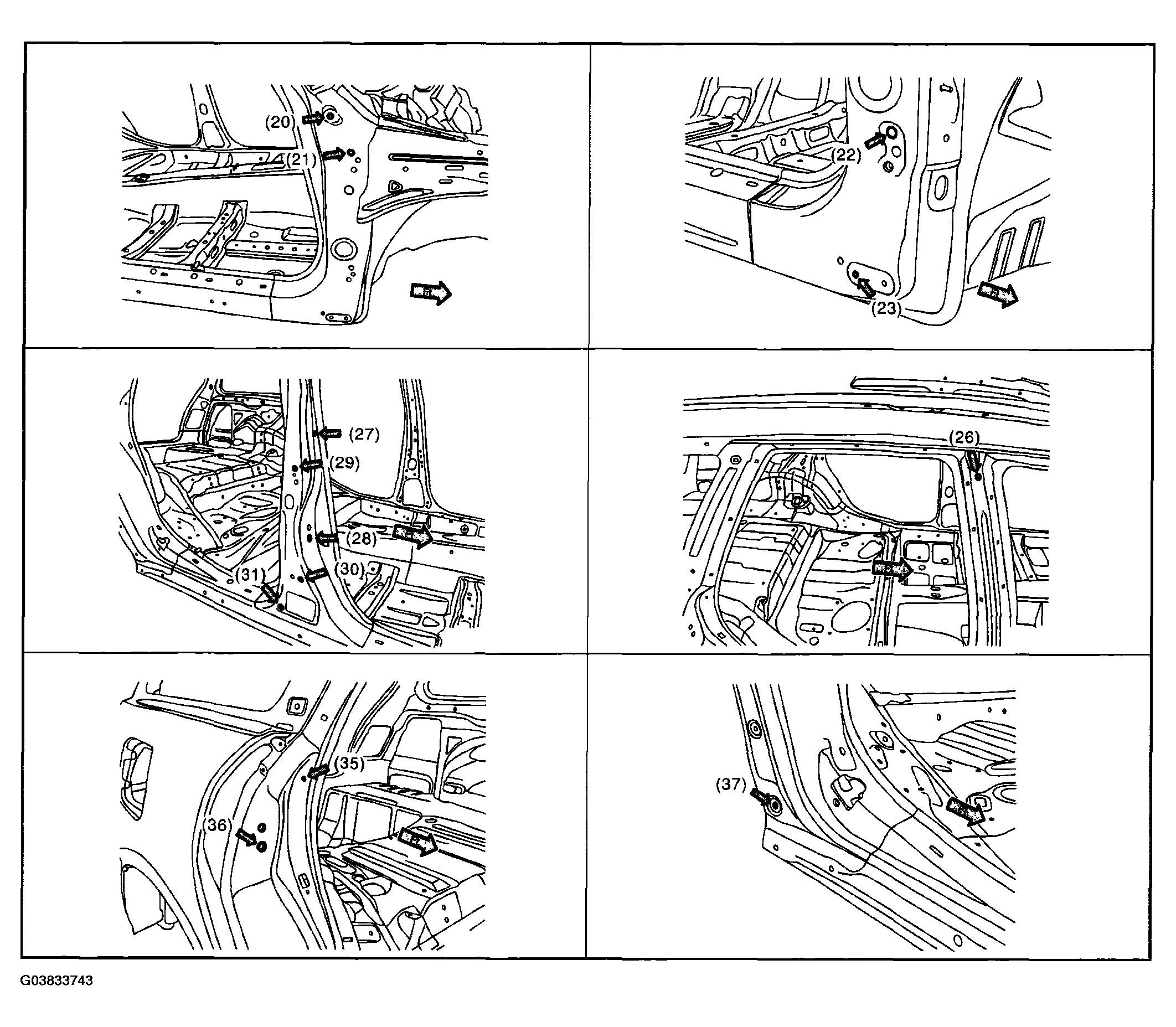

Datum Dimensions: Measurement: Inside: Notes
- Common for wagon and sedan model, 1
POINT DIMENSION SPECIFICATION
| Measuring point | Reference dimension mm (in) |
|---|---|
| (20) - (26) | 1,232 (48.50) |
| (20) - (29) | 1,034(40.71) |
| (20) - (30) | 1,066 (41.97) |
| (21) - (29) | 1,080 (42.52) |
| (22) - (30) | 1,055(41.54) |
| (23) - (31) | 1,070(42.13) |
| (27) - (27) | 1,448(57.01) |
| (28) - (28) | 1,523 (59.96) |
| (29) - (35) | 863 (33.98) |
| (30) - (35) | 1,002 (39.45) |
| (30) - (37) | 753 (29.65) |
| (31) - (37) | 679 (26.73) |
| (36) - (36) | 1,506 (59.29) |
NOTE:
- All reference points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.

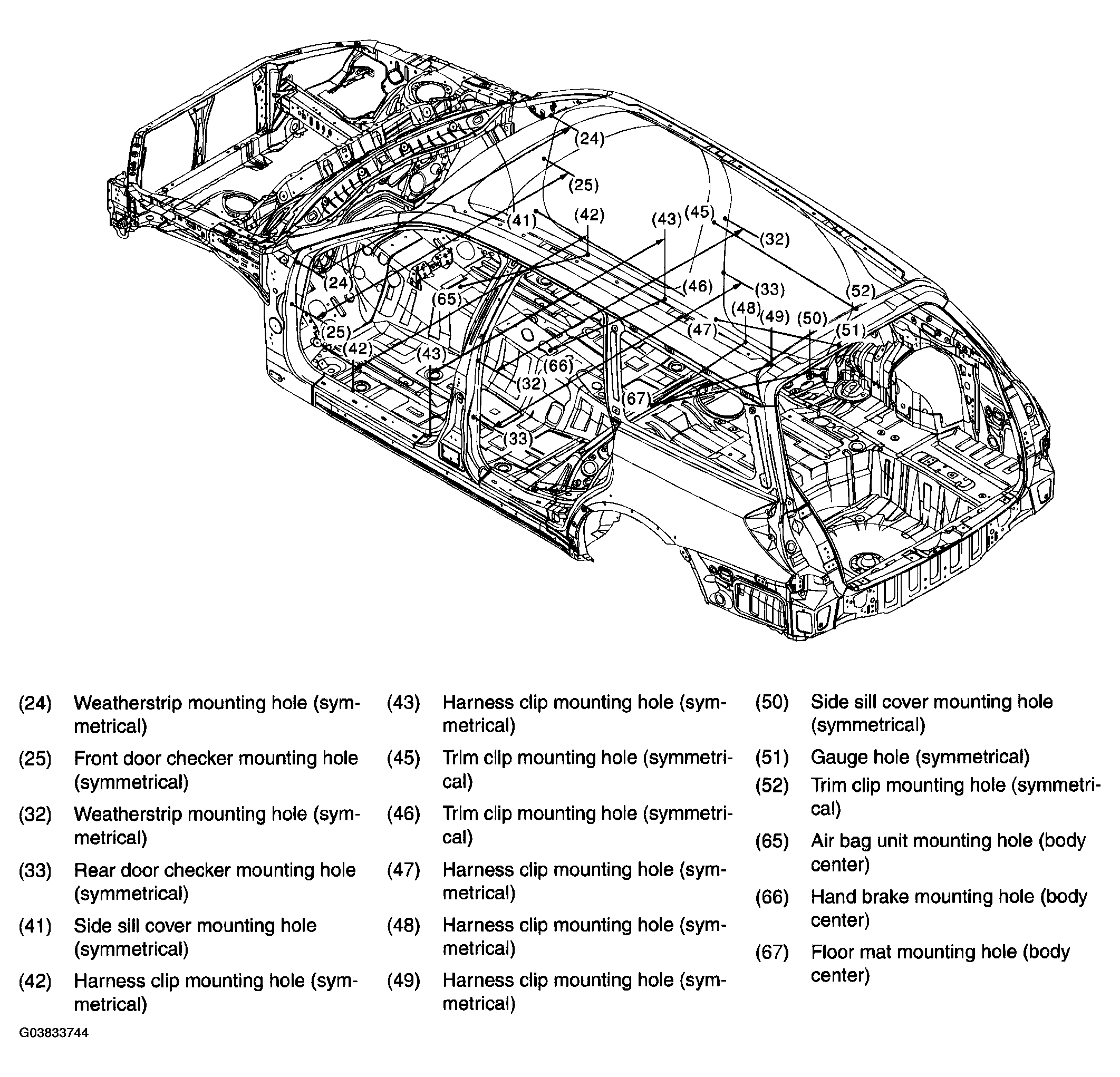

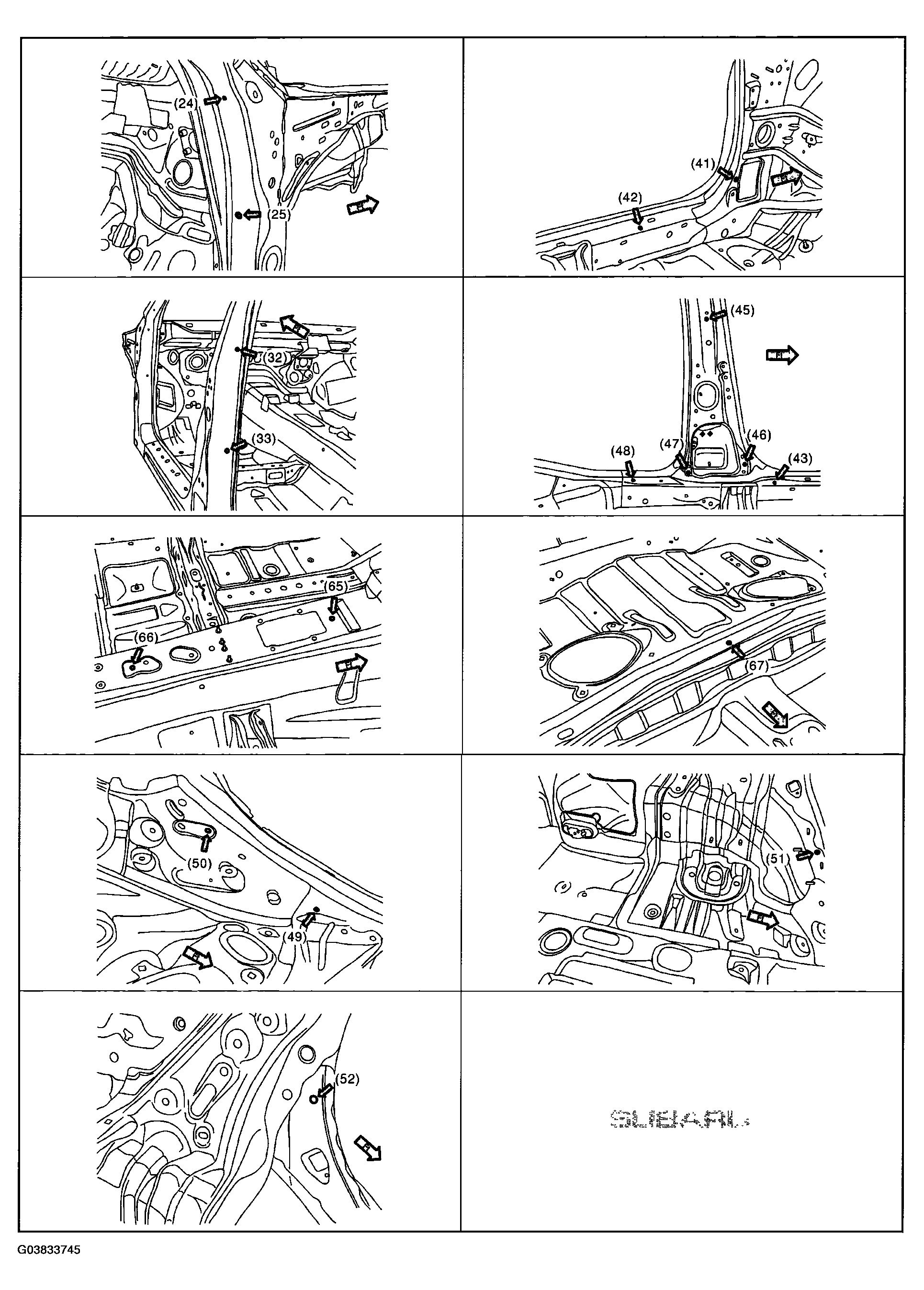

- Common for wagon and sedan model, 2
POINT DIMENSION SPECIFICATION
| Measuring point | Reference dimension mm (in) |
|---|---|
| (24) - (24) | 1,482 (58.35) |
| (25) - (25) | 1,476(58.11) |
| (32) - (32) | 1,448(57.01) |
| (33) - (33) | 1,464 (57.64) |
| (41) - (46) | 863 (33.98) |
| (42) - (42) | 1,373 (54.06) |
| (42) - (65) | 706 (27.80) |
| (43) - (43) | 1,373 (54.06) |
| (43) - (66) | 693 (27.28) |
| (45) - (52) | 838 (32.99) |
| (47) - (51) | 740(29.13) |
| (48) - (67) | 711 (27.99) |
| (49) - (67) | 649 (25.55) |
| (50) - (67) | 704 (27.72) |
NOTE:
- The reference points (65), (66), and (67) are at the body center, while the other points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.

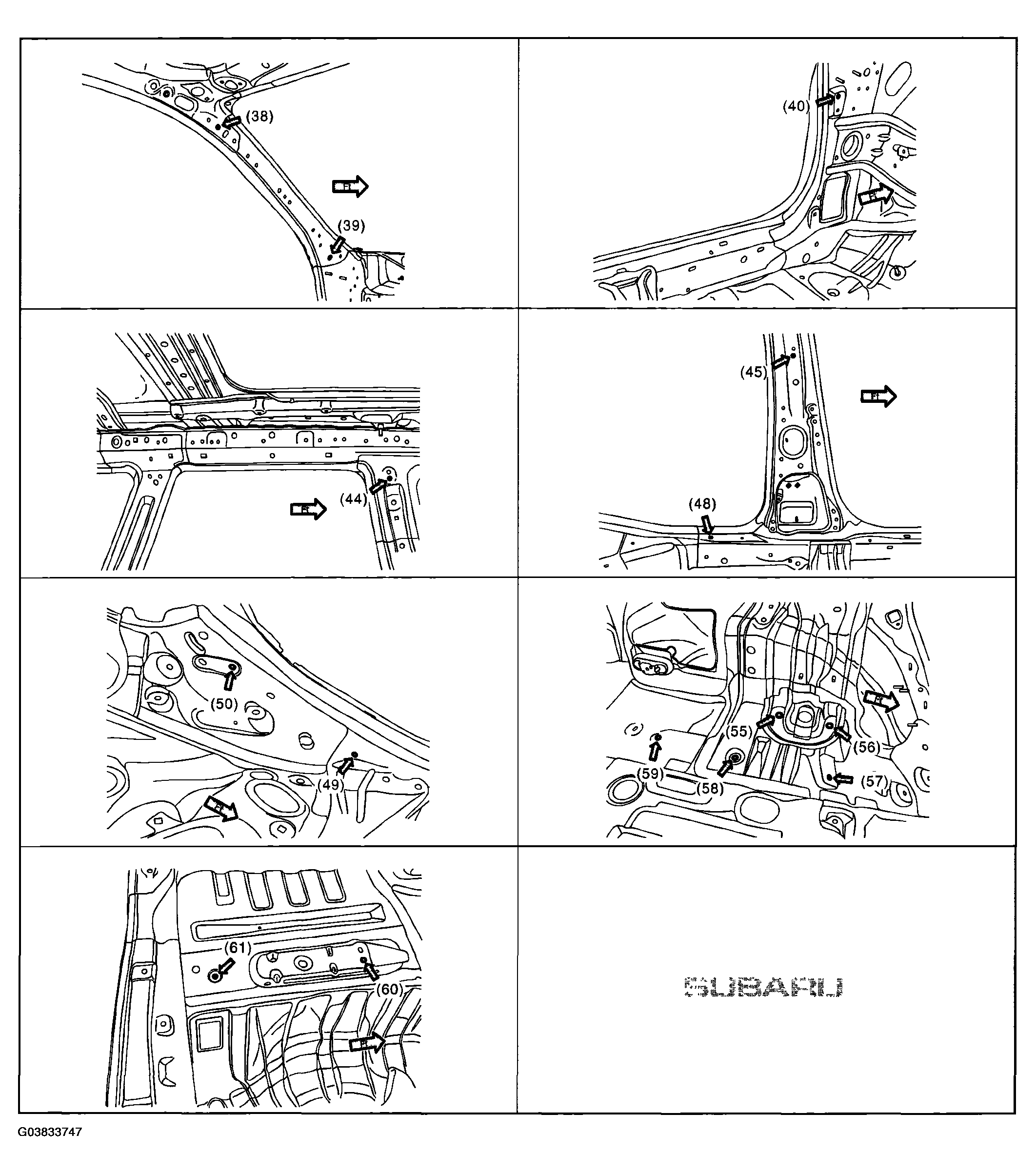

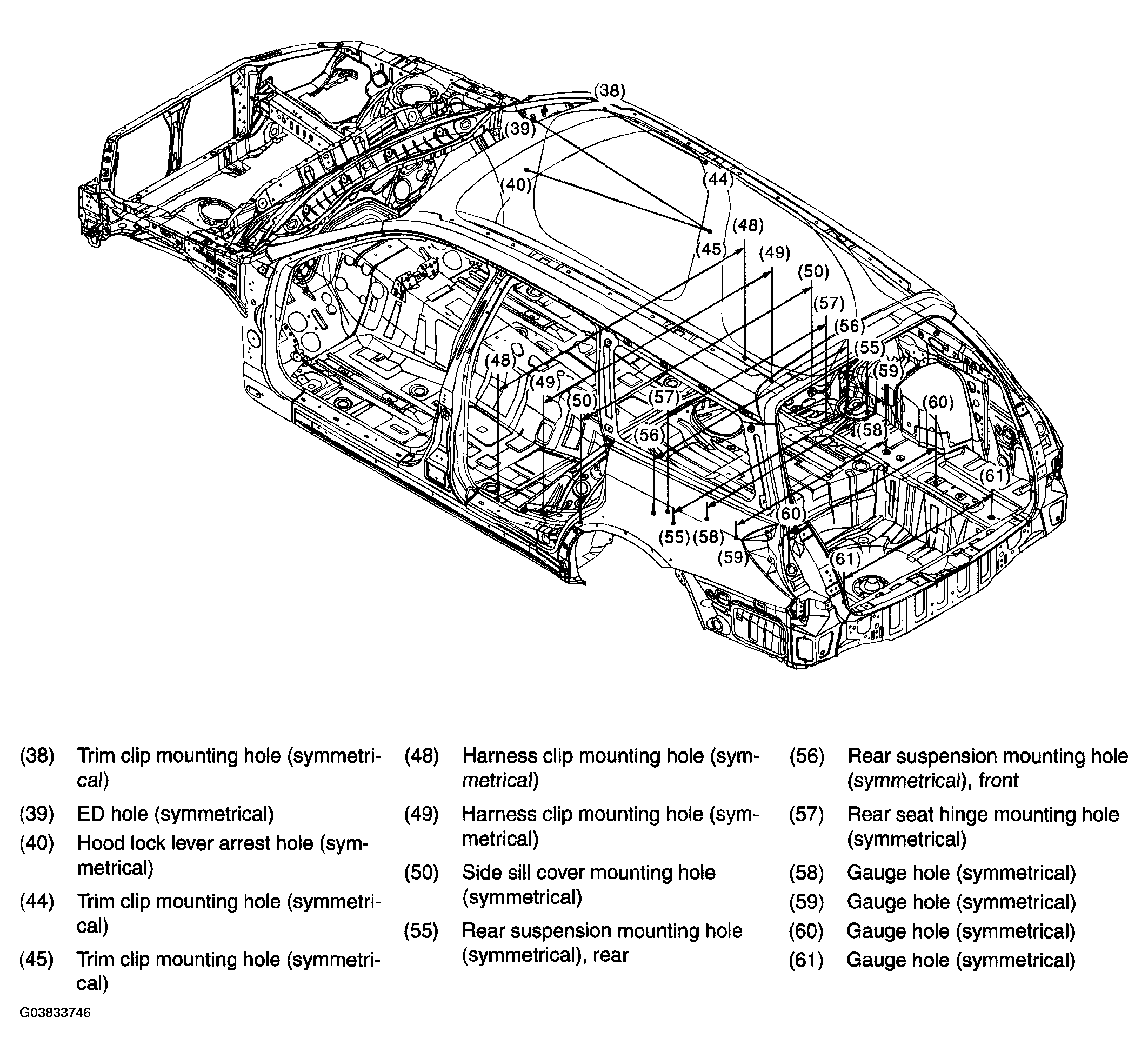

- Common for wagon and sedan model, 3
POINT DIMENSION SPECIFICATION
| Measuring point | Reference dimension mm (in) |
|---|---|
| (38) - (44) | 586 (23.07) |
| (39) - (45) | 993 (39.09) |
| (40) - (45) | 1,043(41.06) |
| (48) - (48) | 1,380 (54.33) |
| (49) - (49) | 1,280(50.39) |
| (50) - (50) | 1,294 (50.94) |
| (55) - (55) | 1,084 (42.68) |
| (56) - (56) | 1,090(42.91) |
| (57) - (57) | 886 (34.88) |
| (58) - (58) | 820 (32.28) |
| (59) - (59) | 840 (33.07) |
| (60) - (60) | 820 (32.28) |
| (61) - (61) | 840 (33.07) |
NOTE:
- All reference points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.
