Datum Dimensions: Measurement: Notes

NOTE:

Using a tram tracking gauge, measure all the dimensions.
When using a tape measure, carefully measure dimensions without letting the tape measure sag or twist.
Measure the linear dimensions between cores of holes.
Suffixes "RH" and "LH" indicate right-hand and left-hand.
Measure at the center of the circle around the outside of the body panel.

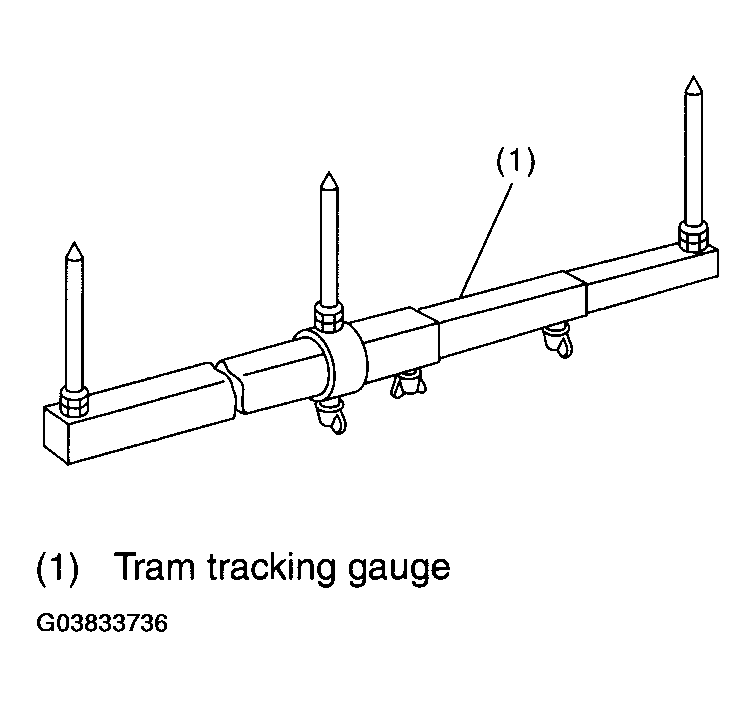

Fig 1: Identifying Tram Tracking Gauge

Courtesy of SUBARU OF AMERICA, INC.

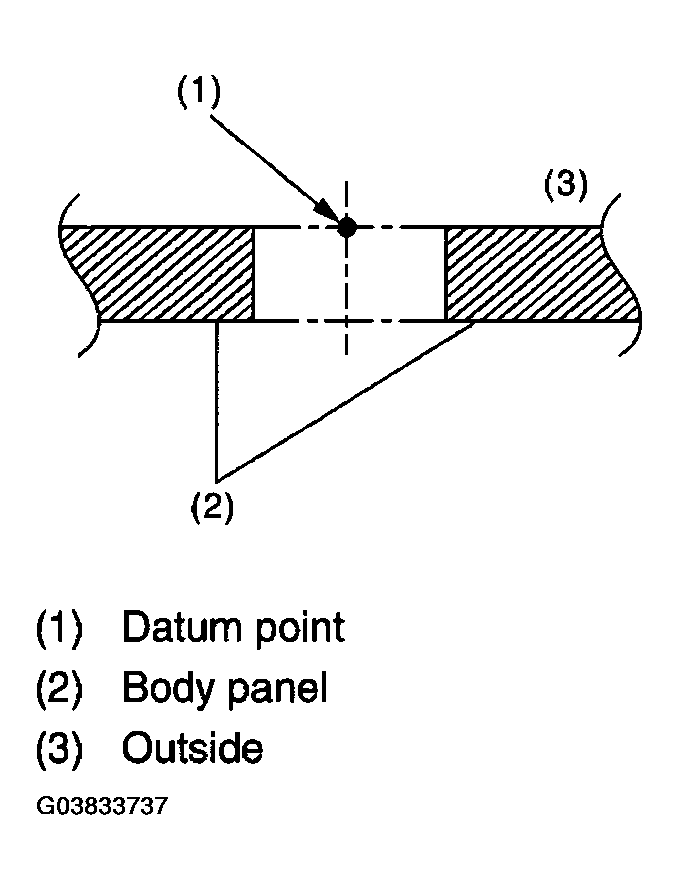

Fig 2: Measuring At Center Of Circle Around Outside Of Body Panel

Courtesy of SUBARU OF AMERICA, INC.
