Front Regulator and Motor Assembly: Removal

1. Remove the door glass. < Ref. to REMOVAL  , Front Door Glass. >
2. Disconnect the motor connector.
3. Remove the four bolts and two nuts to remove regulator assembly.

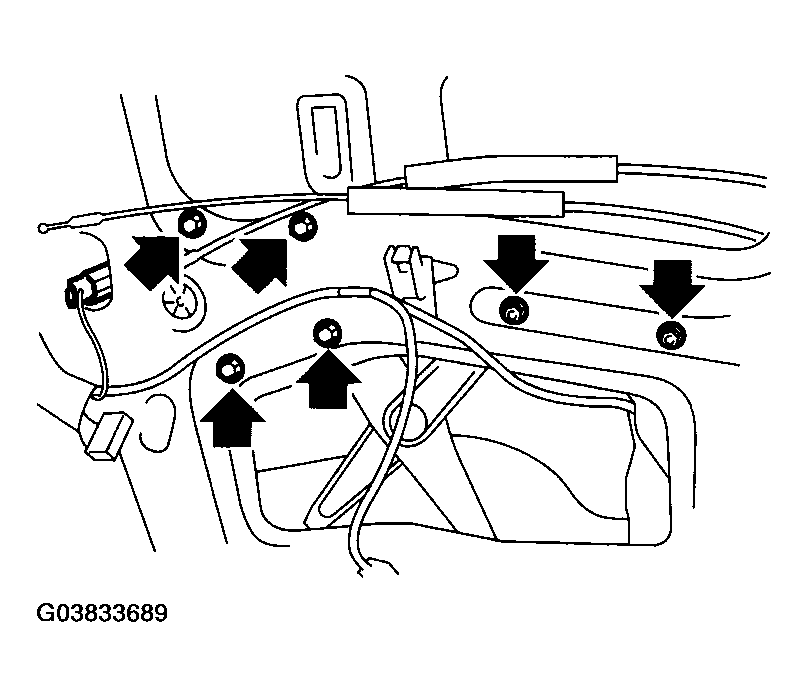

   Fig 1: Removing Four Bolts And Two Nuts To Remove Regulator Assembly

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the screws to remove motor assembly.

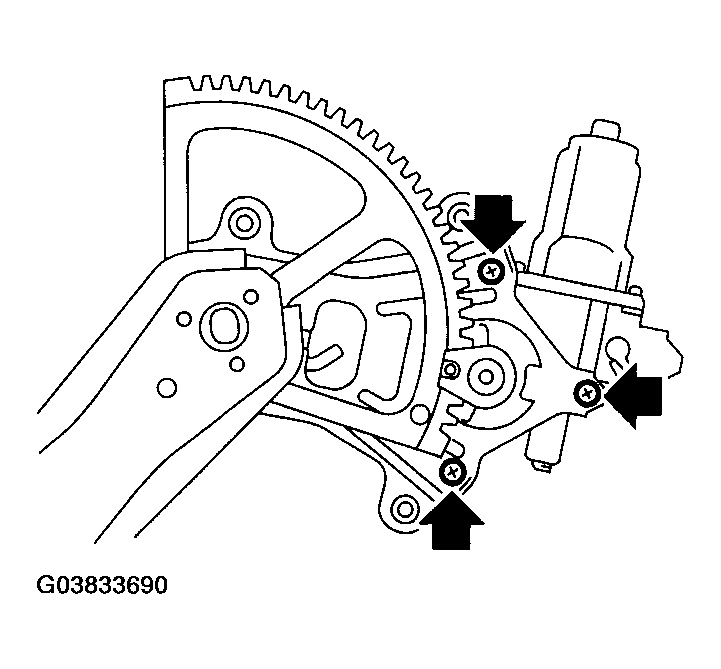

Fig 2: Removing Screws To Remove Motor Assembly

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When removing the motor assembly, secure the arm correctly, because the regulator arm moves in the force of balancing spring.
