Home >> Subaru >> 2005 >> Outback R >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> General Description >> Components With Torque Specifications >> Mirror

Components With Torque Specifications: Mirror

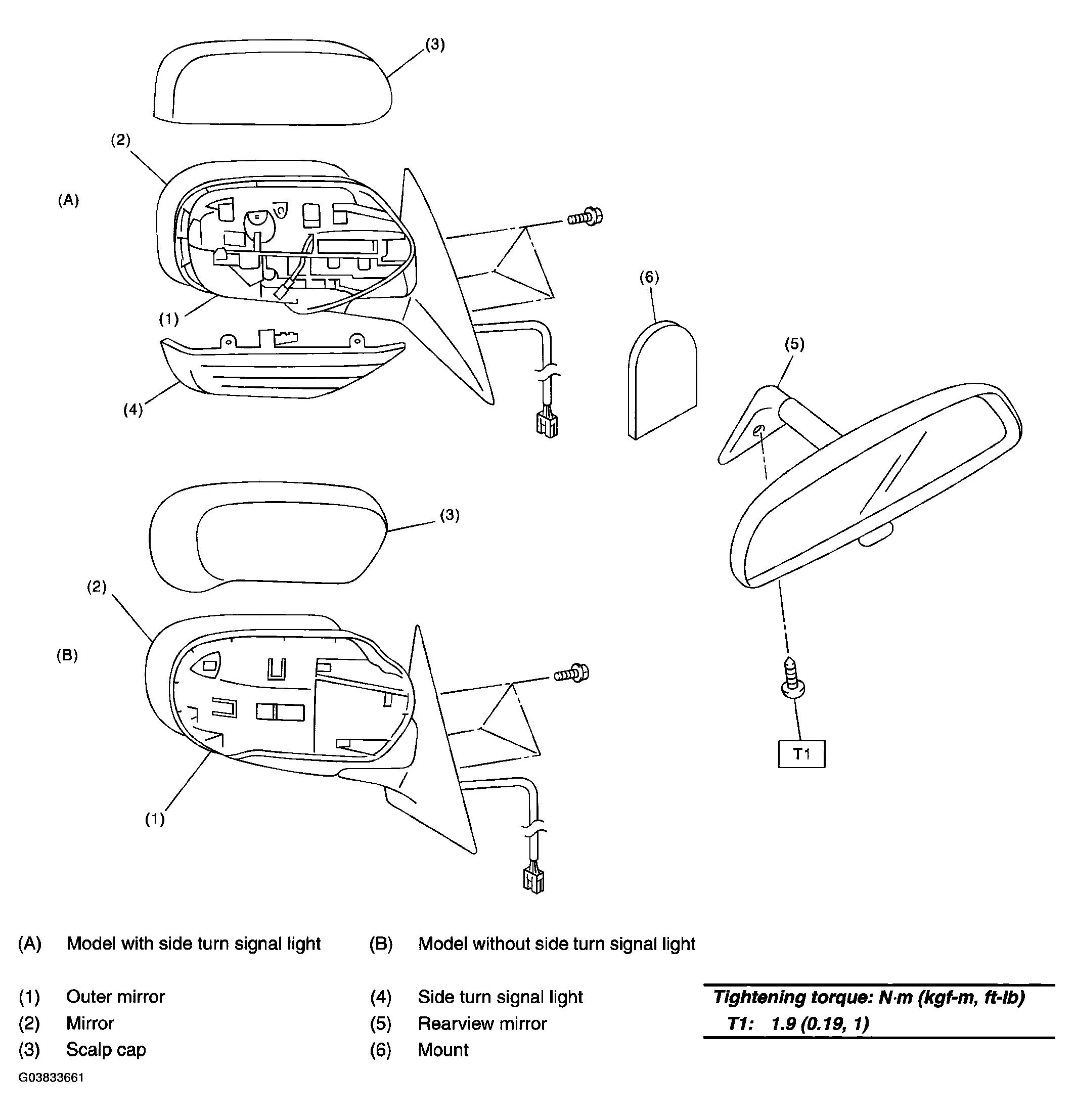

Fig 1: Exploded View Of Mirror
G03833661Courtesy of SUBARU OF AMERICA, INC.
