Outer Mirror Assembly: Removal

  1. Remove the mirror gusset cover.

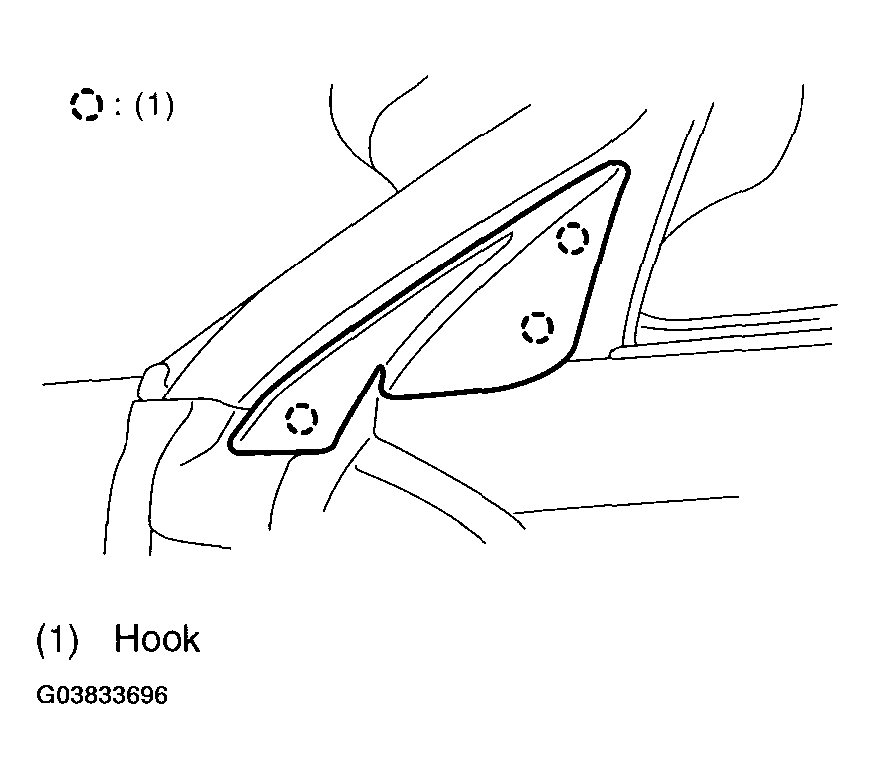

    Fig 1: Removing Mirror Gusset Cover
    G03833696Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the door trim. < Ref. to REMOVAL , Door Trim. >
  3. Disconnect the mirror connector.
  4. Remove the screws to remove mirror assembly.

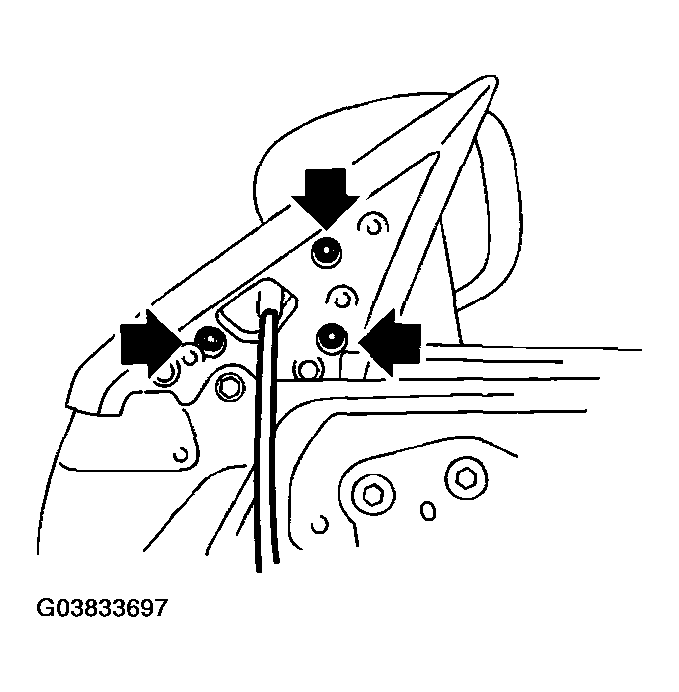

    Fig 2: Removing Screws To Mirror Assembly
    G03833697Courtesy of SUBARU OF AMERICA, INC.
