Home >> Subaru >> 2005 >> Outback R >> Repair and Diagnosis >> Electrical >> Charging Systems >> Starting/Charging Systems (H4SO) >> General Description >> Components With Torque Specifications >> Generator

Components With Torque Specifications: Generator

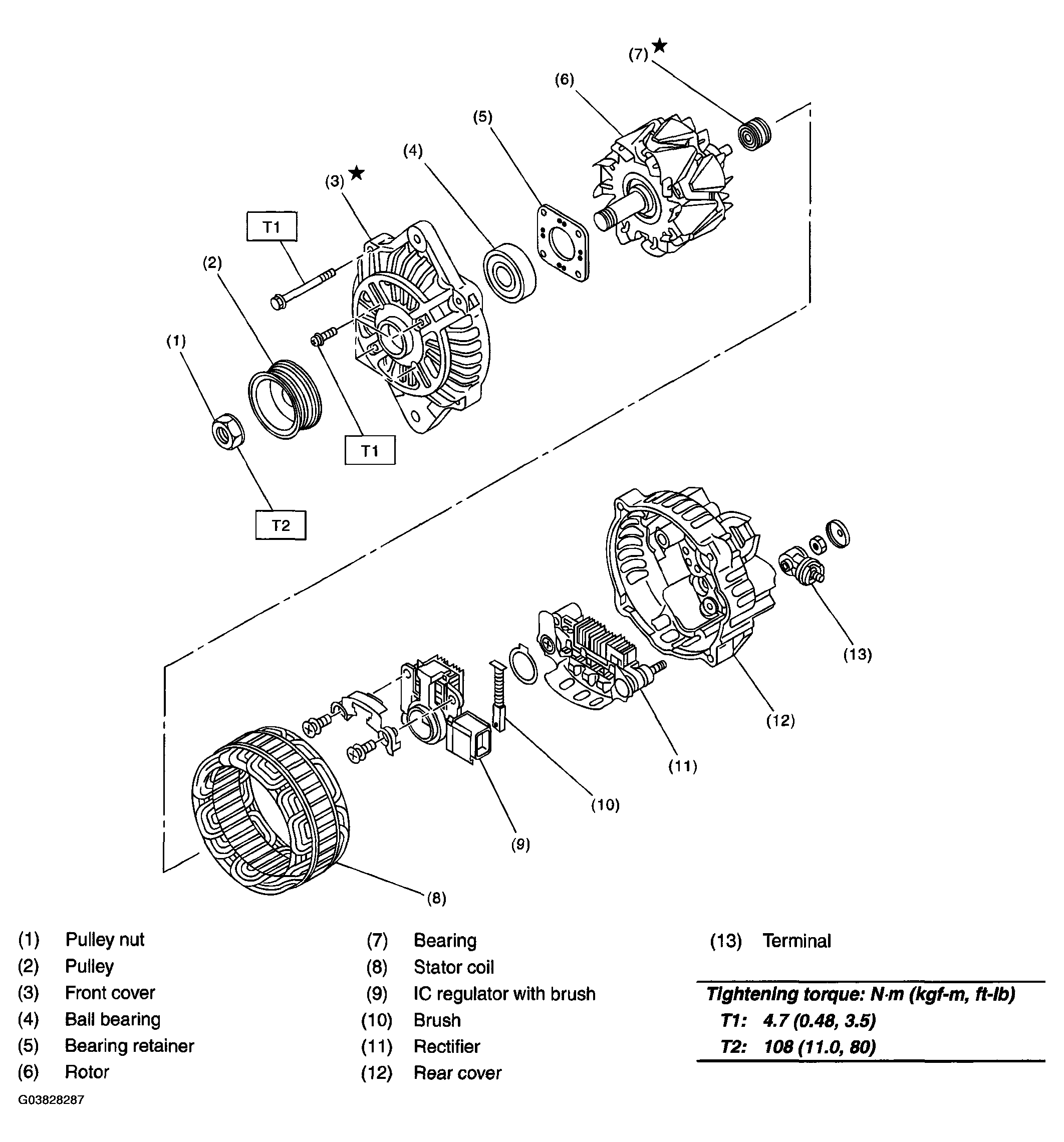

Fig 1: Generator Components With Torque Specifications

G03828287

Courtesy of SUBARU OF AMERICA, INC.
