Starting/Charging Systems (H4SO): Generator: Inspection: Stator

1. Continuity test

   Inspect the stator coil for continuity between each end of the lead wires. If resistance is 1 MΩ or more, the lead wire is broken, and so replace the stator assembly.

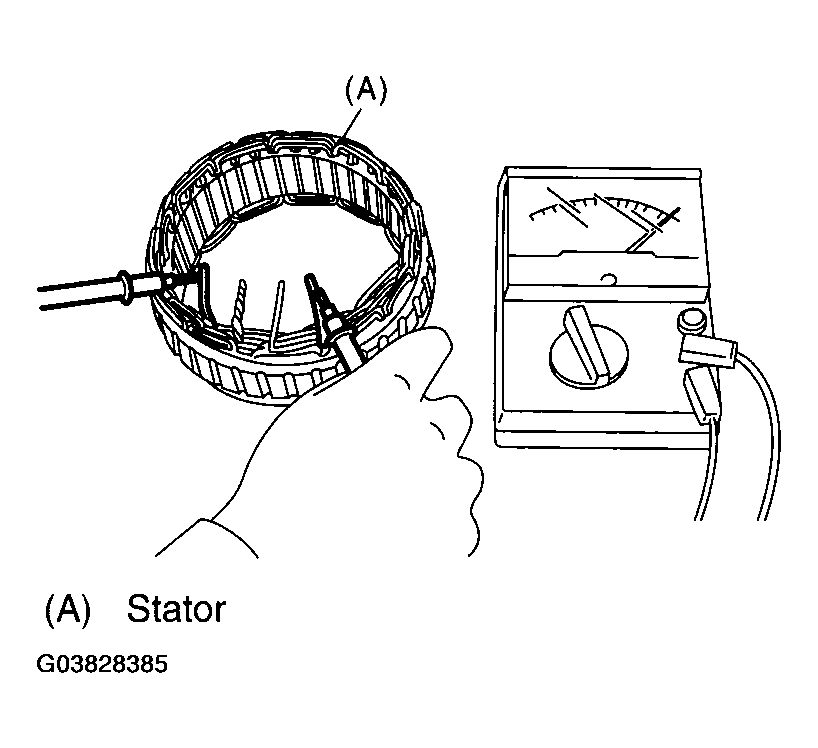

   Fig 1: Performing Continuity Test

   Courtesy of SUBARU OF AMERICA, INC.
2. Insulation test

Inspect the stator coil for continuity between stator core and each end of lead wire. If resistance is 1 Ω or less, the stator coil is grounded, and so replace the stator assembly.

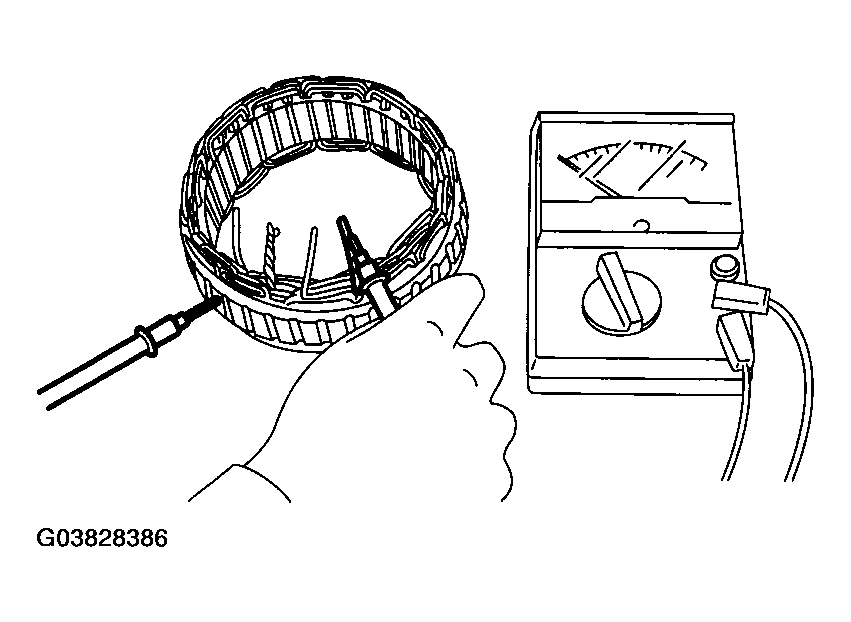

Fig 2: Performing Insulation Test

Courtesy of SUBARU OF AMERICA, INC.
