Starting/Charging Systems (H4SO): Generator: Removal

Disconnect the ground cable from battery.

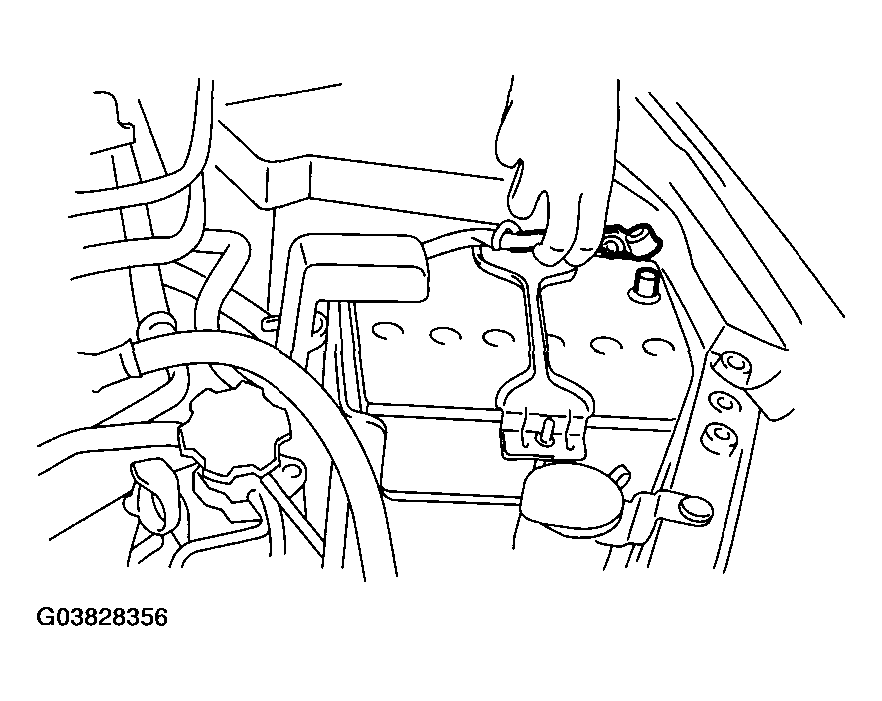

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector and terminal from generator.
- 2.5L Non-turbo model (U5)

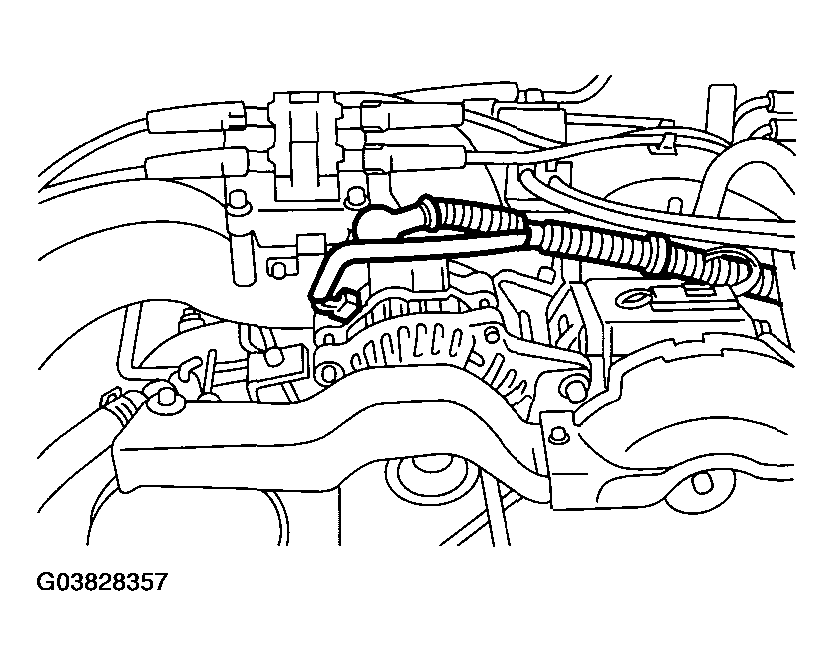

  Fig 2: Disconnecting Connector And Terminal From Generator - 2.5L Non-Turbo Model (U5)
  Courtesy of SUBARU OF AMERICA, INC.
- 2.5L Non-turbo model (Except for U5)

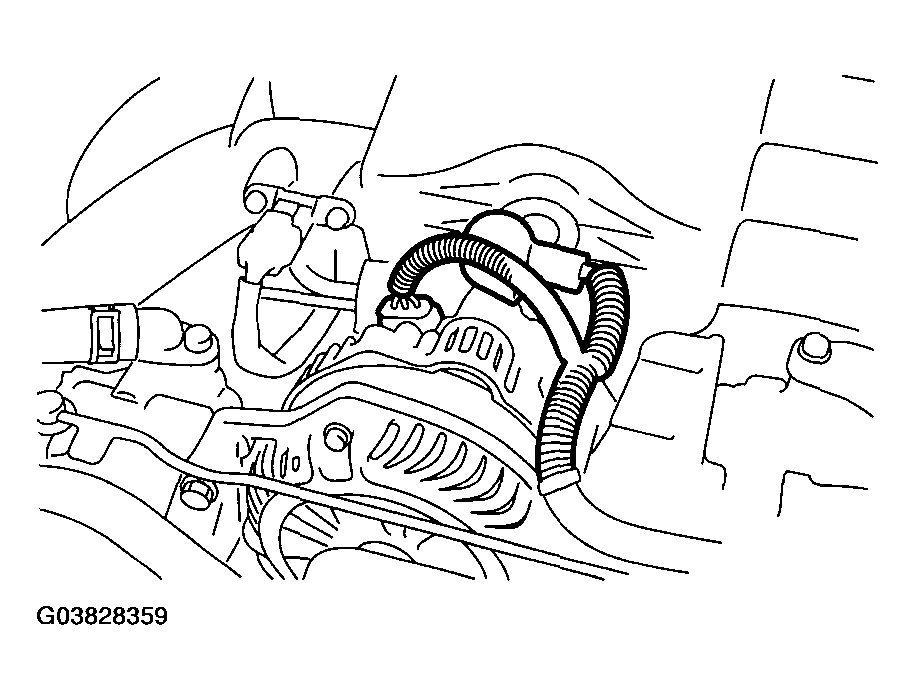

  Fig 3: Disconnecting Connector And Terminal From Generator - 2.5L Non-Turbo Model (Except For U5)
  Courtesy of SUBARU OF AMERICA, INC.
- 3.0L Non-turbo model

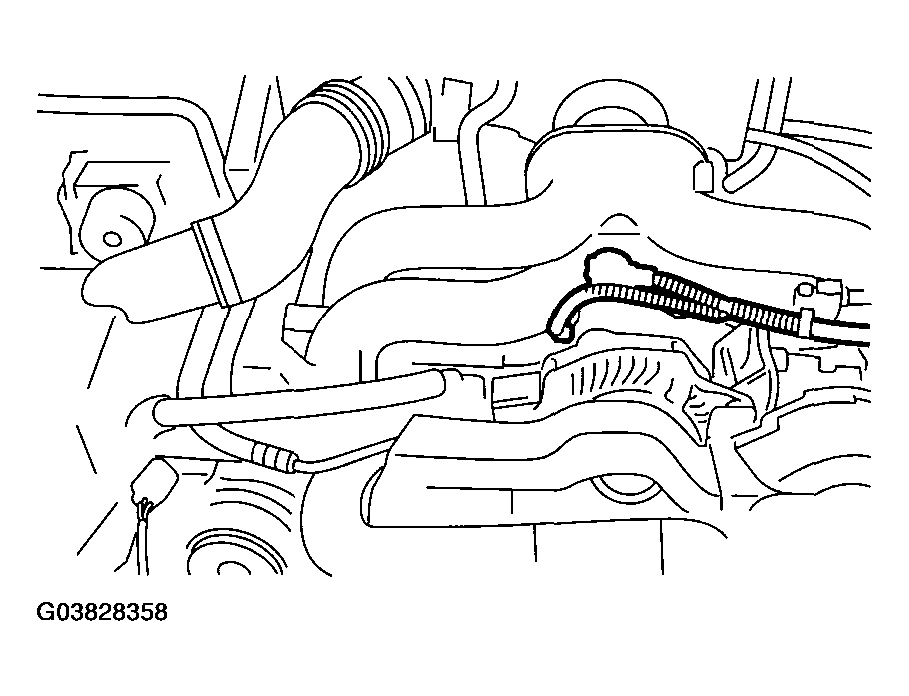

  Fig 4: Disconnecting Connector And Terminal From Generator - 3.0L Non-Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

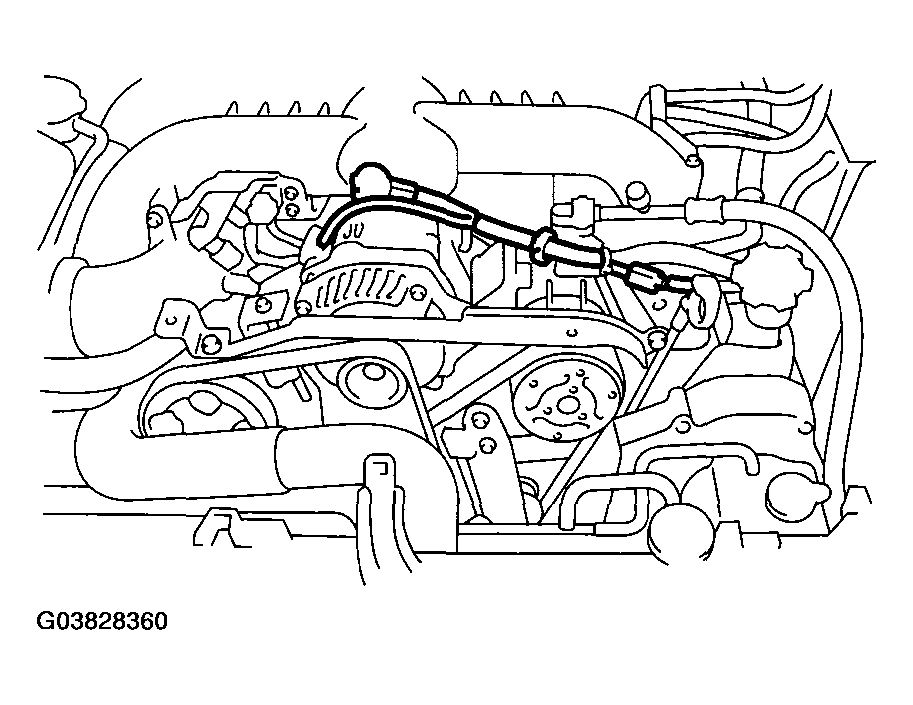

Fig 5: Disconnecting Connector And Terminal From Generator - Turbo Model
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt covers.
Remove the V-belts.
< Ref. to REMOVAL , V-belt for (H4SO model), REMOVAL , V-belt for (H4DOTC model) or REMOVAL , V-belt for (H6DO model).
Remove the bolts which install the generator onto bracket.

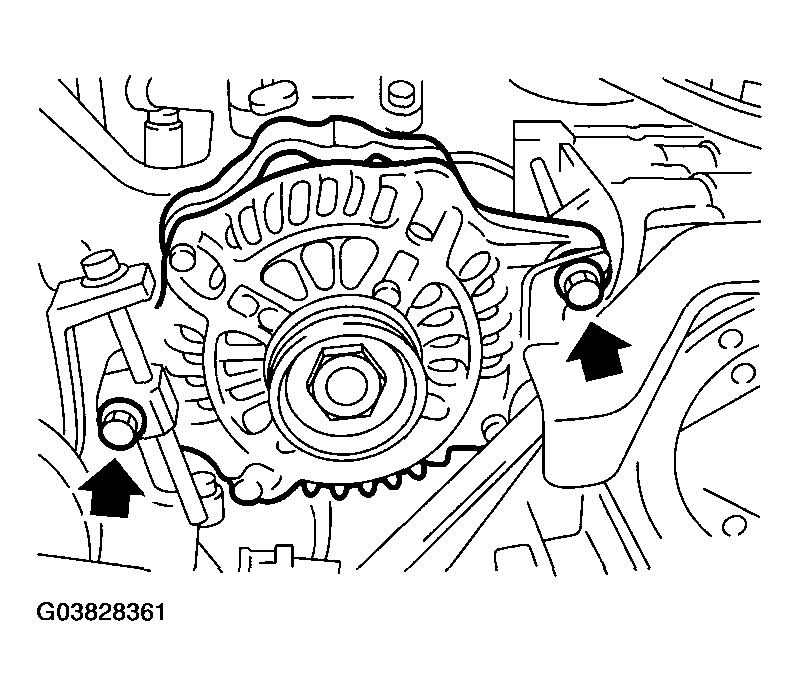

Fig 6: Removing Bolts From Generator to Bracket

Courtesy of SUBARU OF AMERICA, INC.
