Instrumentation/Driver Info: Clock: Removal

1. Disconnect the ground cable from battery.
2. Remove the center air vent grille. < Ref. to REMOVAL , Air Vent Grille. >
3. Loosen the screws, and then remove the clock (B) from center air vent grille (A).

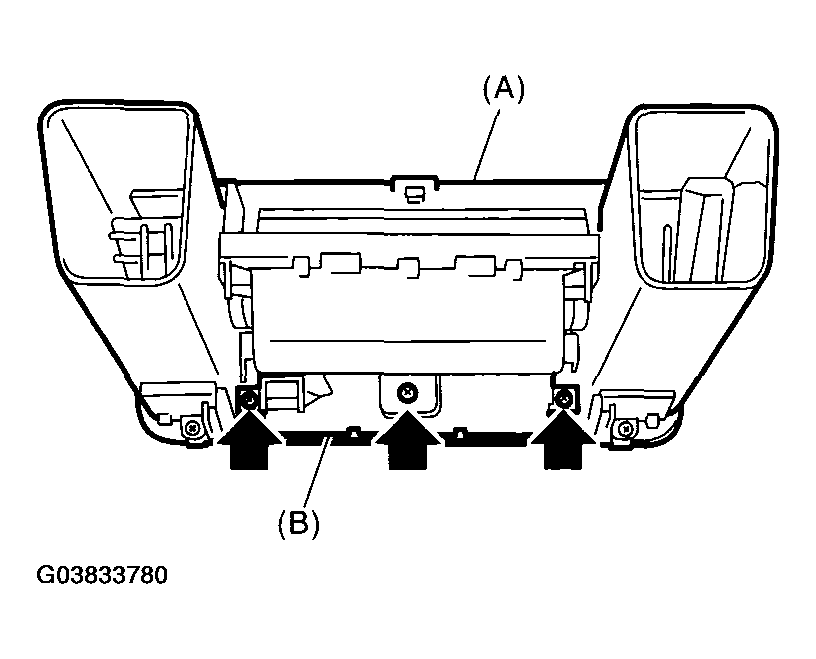

Fig 1: Removing Center Air Vent Grille

Courtesy of SUBARU OF AMERICA, INC.
