Communication Error Display

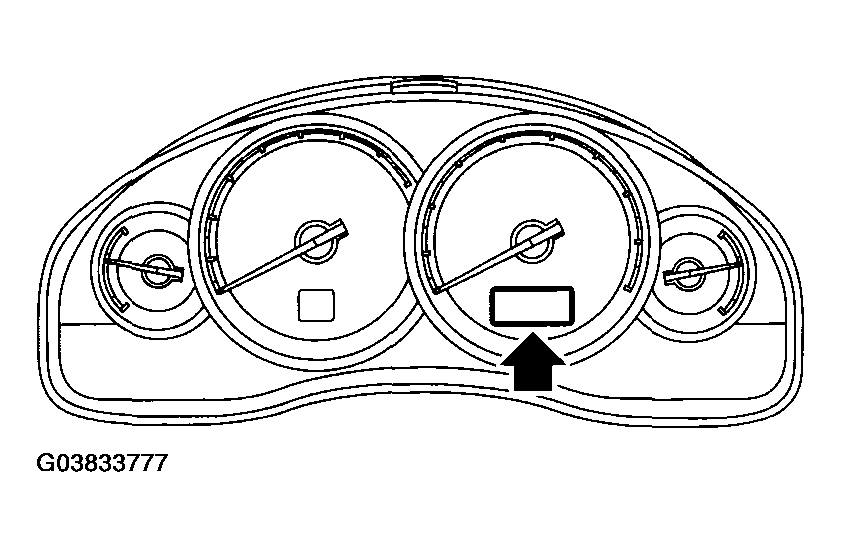

When the following error code is displayed in the odo/trip meter, inspect the communication circuit since the communication malfunction is generated between each control module. < Ref. BASIC DIAGNOSTIC PROCEDURE , . >
PROBLEM SYMPTOM CHART
| Error code | Remarks |
PROBLEM SYMPTOM CHART
| Er IU | Malfunction in integrated unit |
|---|---|
| Er - | Simultaneous malfunction of high/low speed CAN communication |
| Er HC | Malfunction of high-speed CAN communication |
| Er LC | Malfunction of low-speed CAN communication |
| Er EG | EGI Communication malfunction |
| Er TC | TCM Communication malfunction |
| Er Ab | ABSCM/VDCCM Communication malfunction |
| Er SP | ABSCM/VDCCM DTC information, vehicle speed pulse malfunction |
| Er SS | Wheel speed data malfunction |
