Crankshaft Position Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

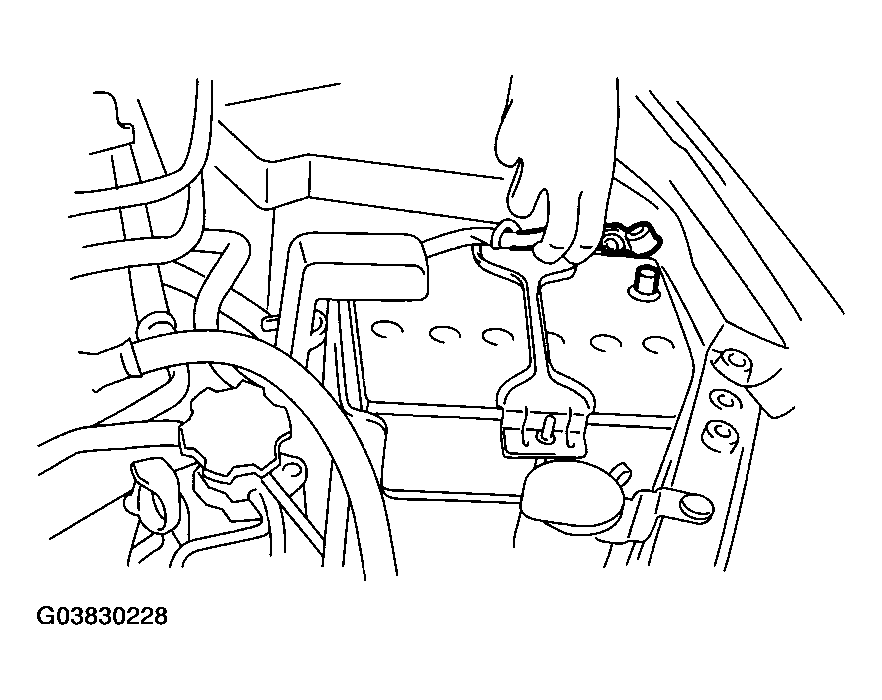

    Fig 1: Disconnecting Ground Cable From Battery
    G03830228Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake chamber. < Ref. to REMOVAL , Air Intake Chamber. >
  4. Remove the service hole cover.

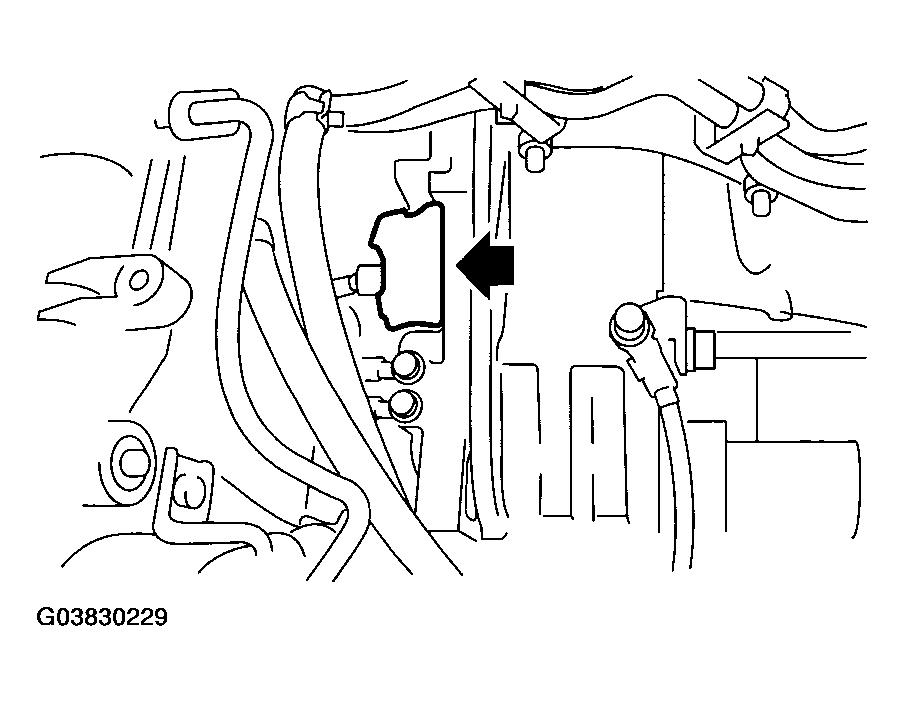

    Fig 2: Removing Service Hole Cover
    G03830229Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the crankshaft position sensor.

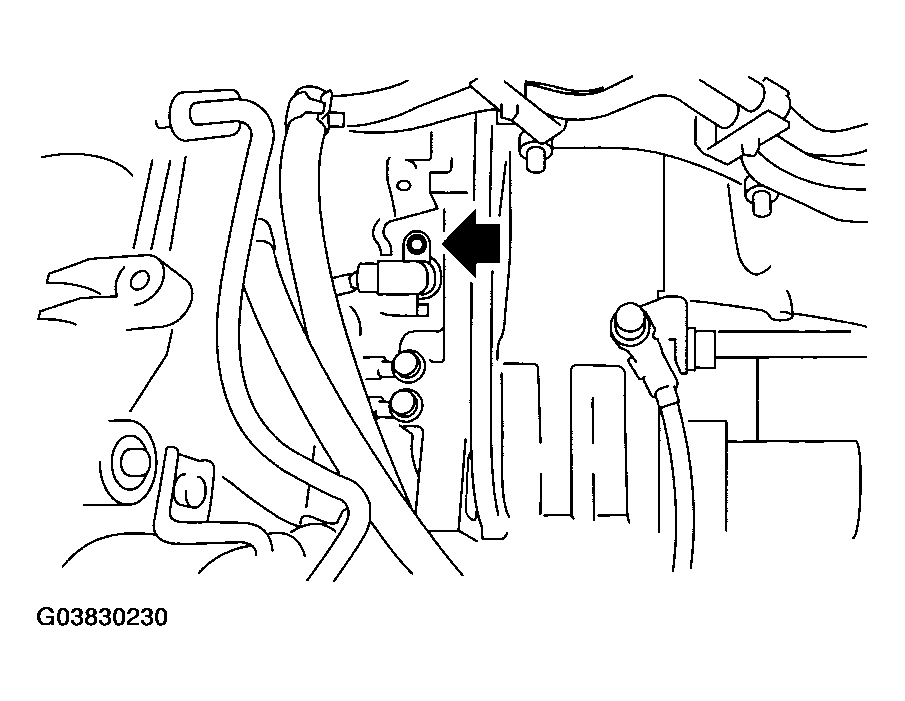

    Fig 3: Removing Crankshaft Position Sensor
    G03830230Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector from crankshaft position sensor.
