Intake Manifold

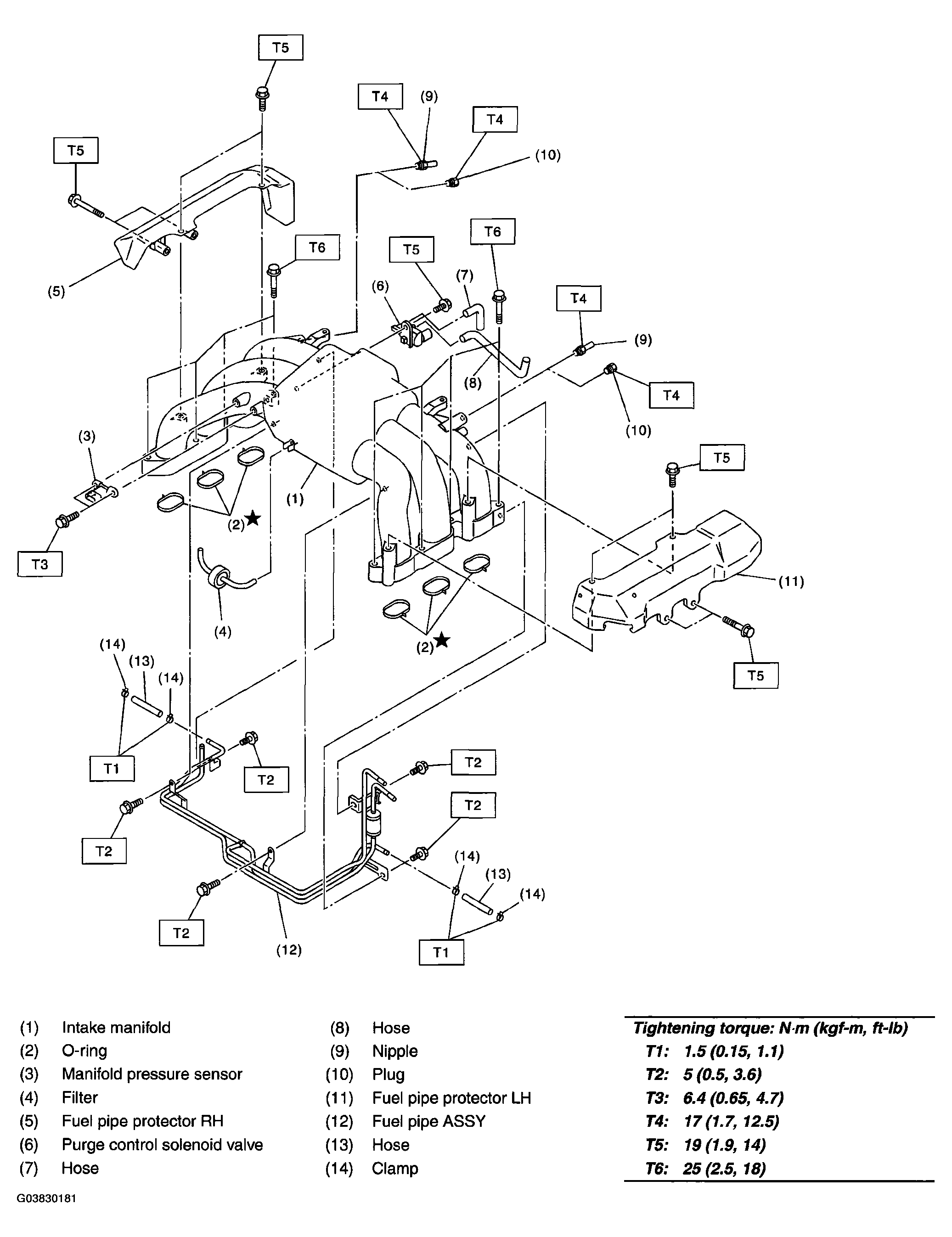

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
G03830181Courtesy of SUBARU OF AMERICA, INC.
