Manifold Absolute Pressure Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

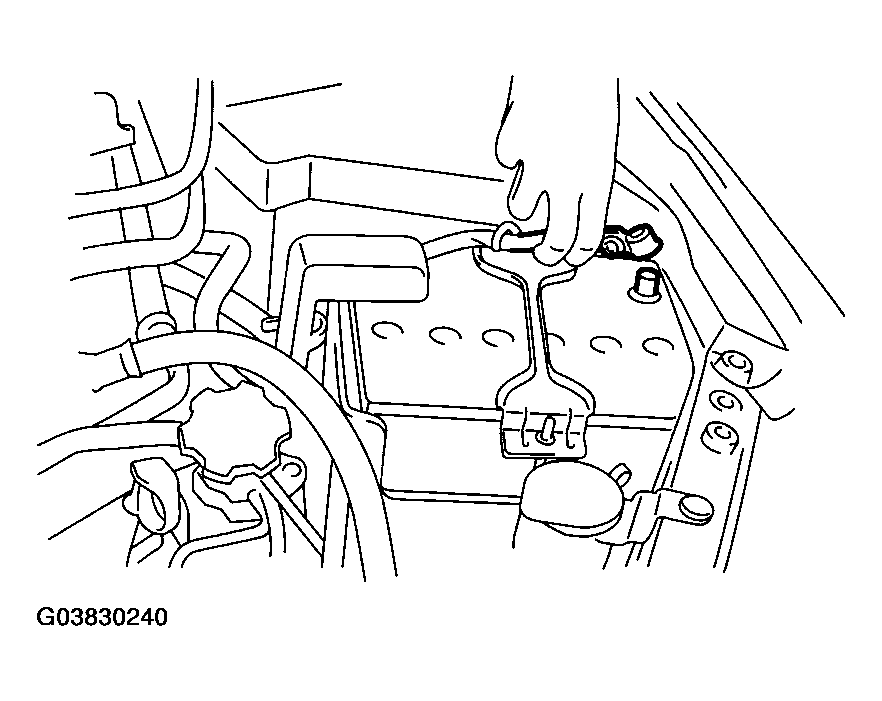

    Fig 1: Disconnecting Ground Cable From Battery
    G03830240Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from manifold absolute pressure sensor (A), and remove the filter assembly (B) from intake manifold.

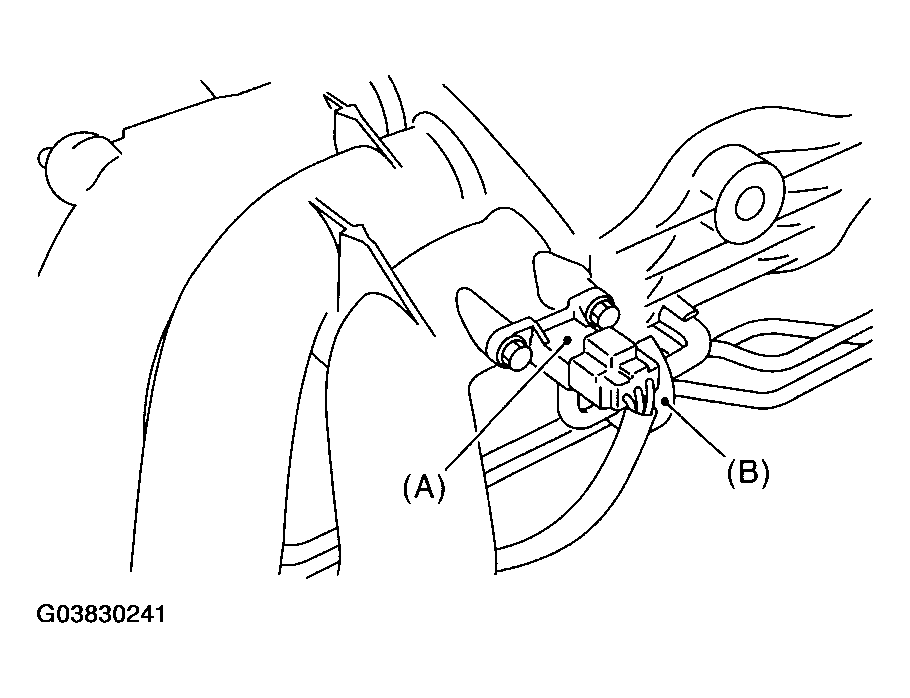

    Fig 2: Identifying Manifold Absolute Pressure Sensor And Filter Assembly
    G03830241Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the manifold absolute pressure sensor from intake manifold.
