RH Side

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.

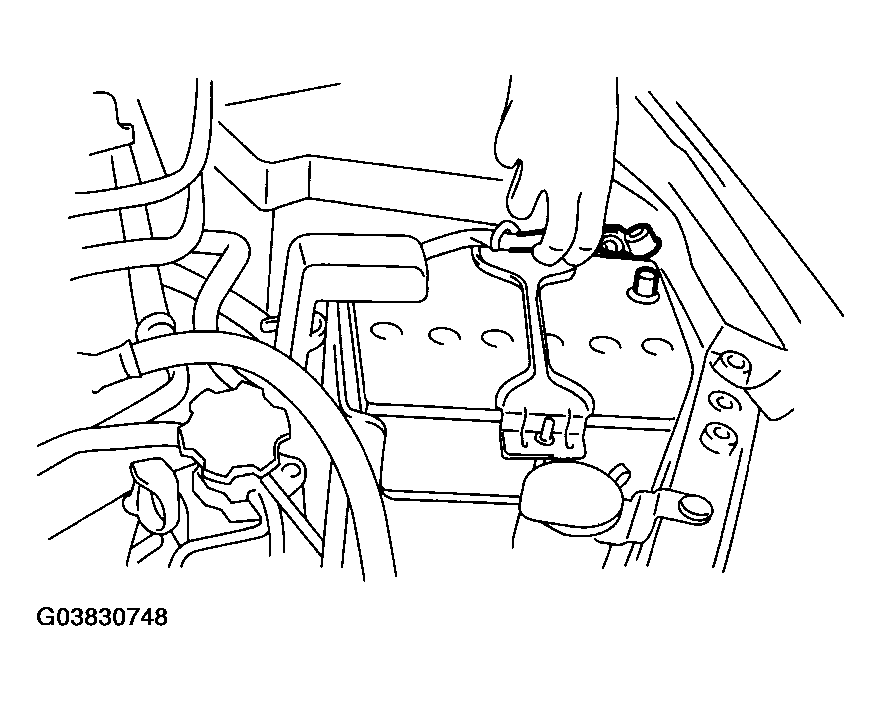

    Fig 1: Removing Bracket
    G03830748Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air cleaner case.

    < Ref. to AIR CLEANER CASE . >

  4. Remove the bracket.
  5. Disconnect the connector from ignition coil.
  6. Remove the ignition coil.
    NOTE: Turn the #5 ignition coil to remove it.

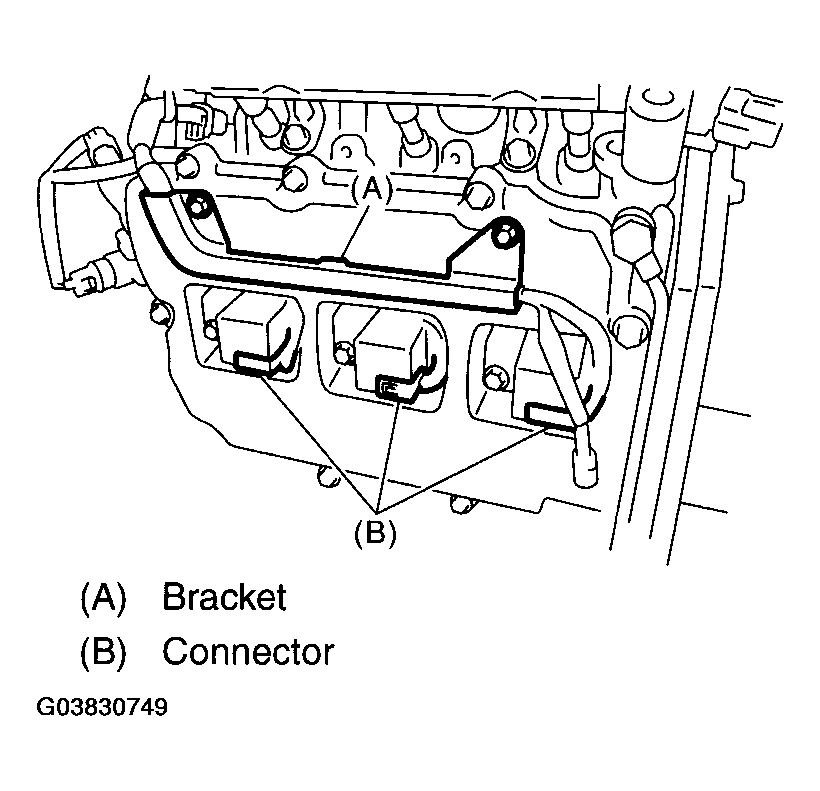

    Fig 2: Disconnecting Connector
    G03830749Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the spark plug with a spark plug socket.

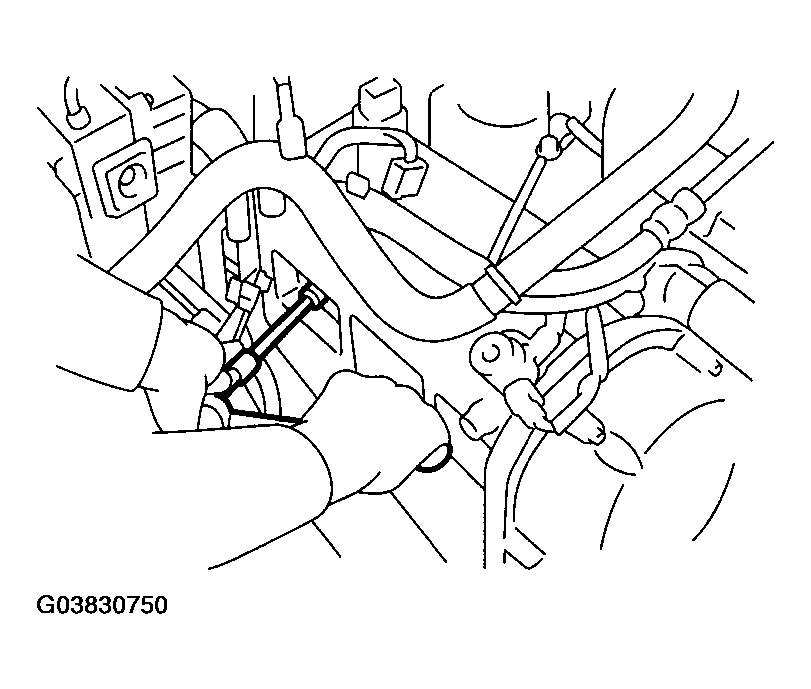

Fig 3: Removing Spark Plug With Spark Plug Socket
G03830750Courtesy of SUBARU OF AMERICA, INC.

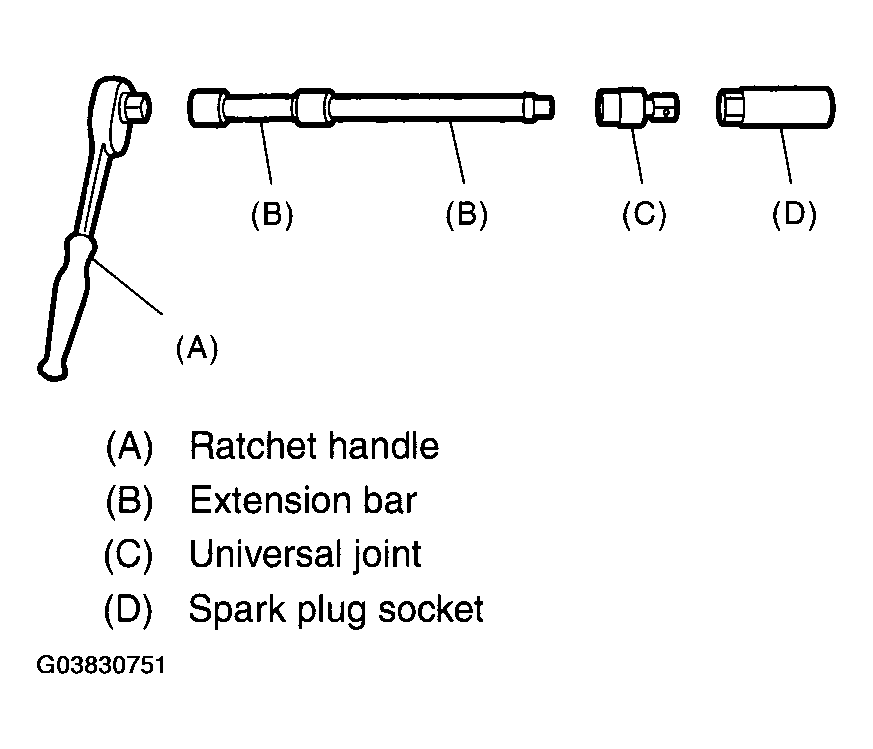

Fig 4: Identifying Ratchet Handle, Extension Bar, Universal Joint, Sparl Plug Socket
G03830751Courtesy of SUBARU OF AMERICA, INC.
