Front Stabilizer: Removal

  1. Lift-up the vehicle, and then remove the front wheels.
  2. Remove the front under cover. < Ref. to REMOVAL , Front Under Cover. >
  3. Remove the front crossmember support plate. < Ref. to , REMOVAL , Front Crossmember Support Plate. >
  4. Remove the stabilizer link.

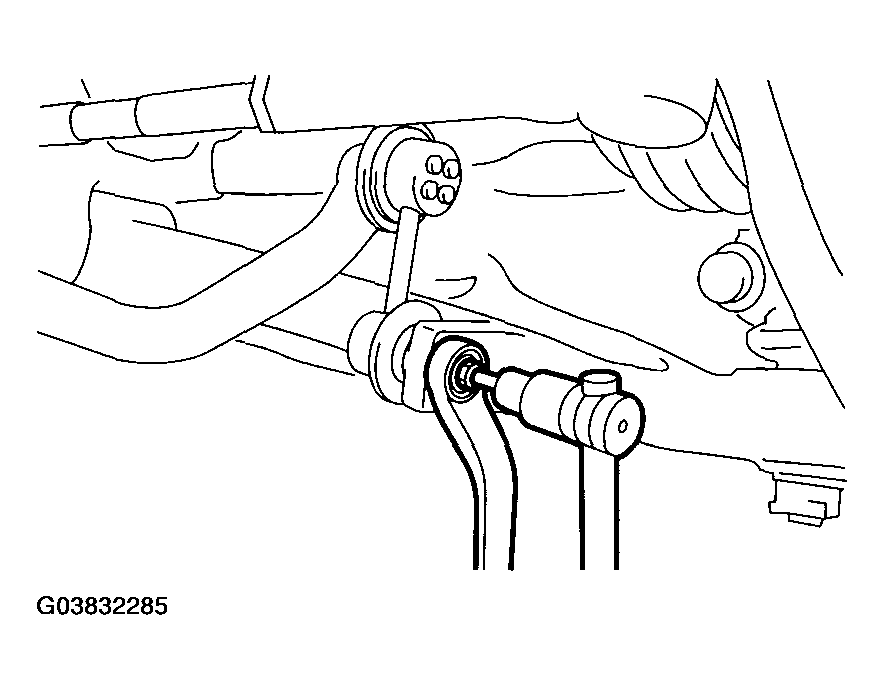

    Fig 1: Removing Stabilizer Link
    G03832285Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the stabilizer bracket.

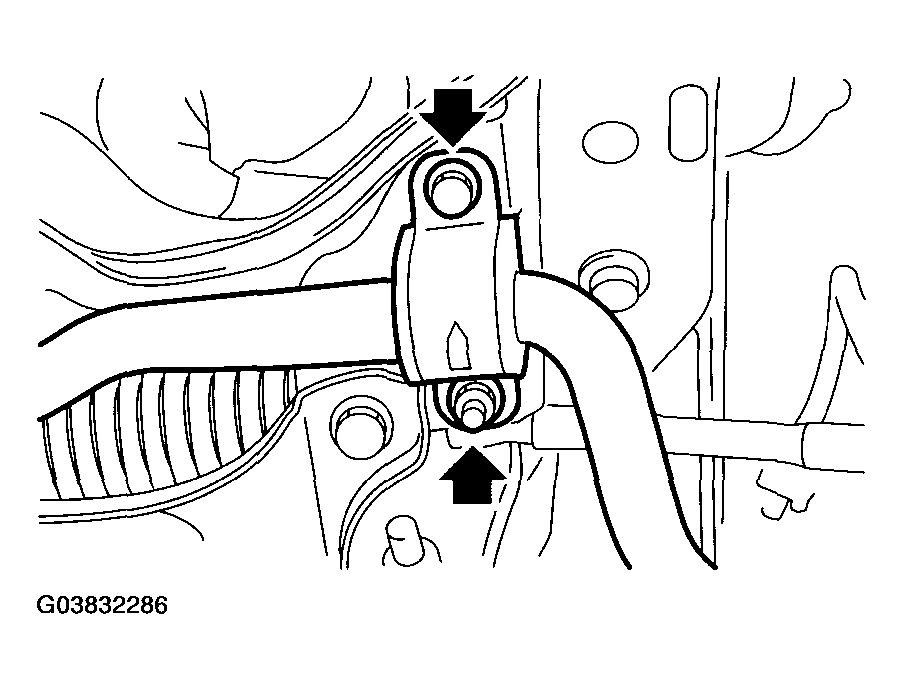

Fig 2: Removing Stabilizer Bracket
G03832286Courtesy of SUBARU OF AMERICA, INC.
