Front Link: Installation

Using a transmission jack, support the rear arm horizontally.
Using new self-locking nuts, install the front link.

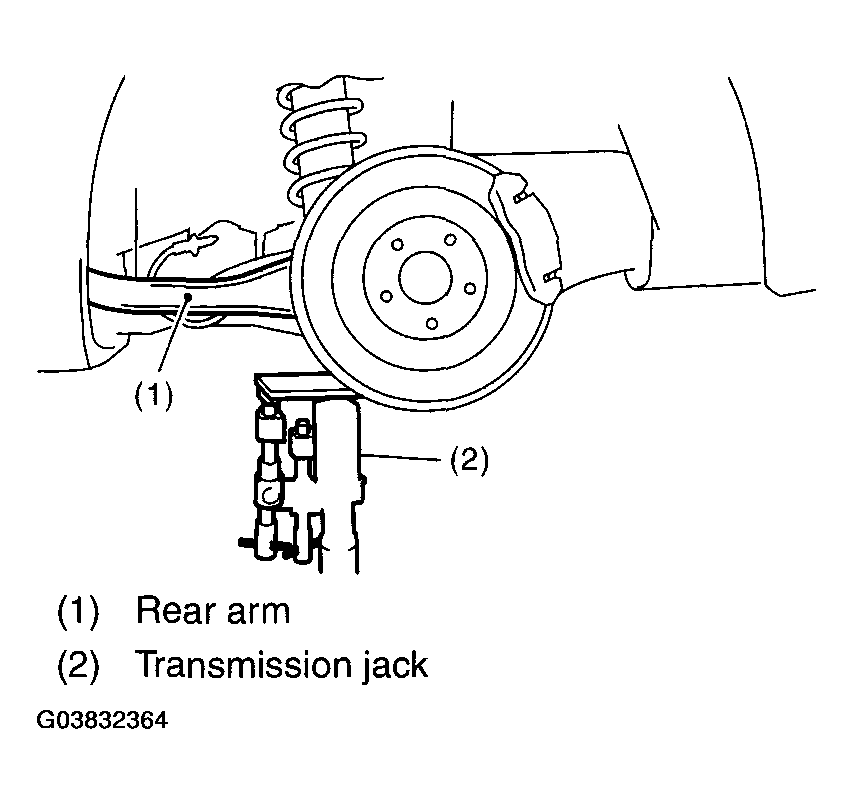

Fig 1: Supporting Rear Arm Horizontally
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Install the front link with the protrusion side faced to the front side of vehicle.

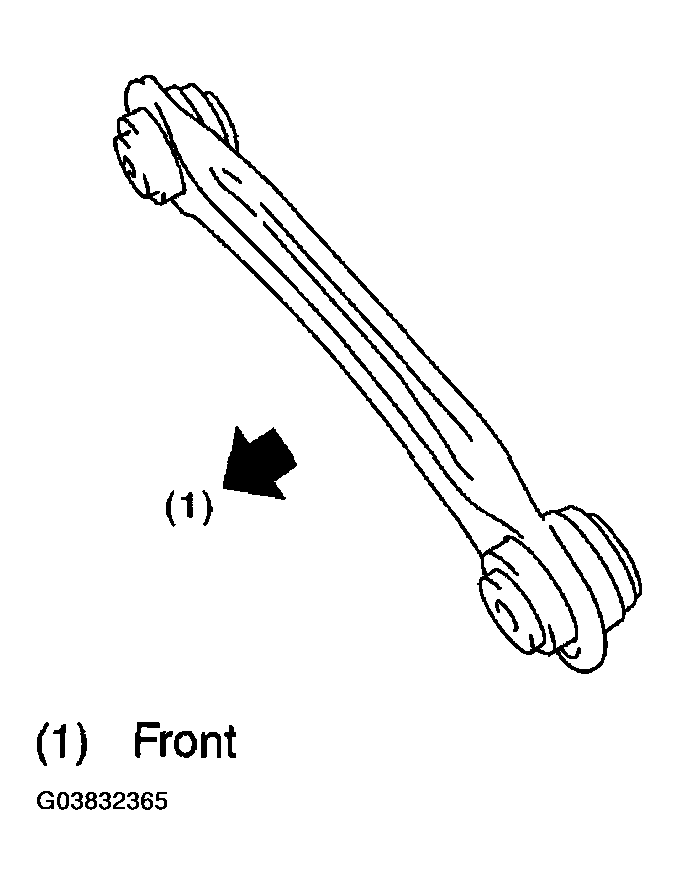

Fig 2: Installing Front Link
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Inspect the wheel alignment and adjust it if necessary.

Tightening torque: 120 N.m (12.2 kgf-m, 89 ft-lb)
