Rear Suspension: General Description: Specification
REAR SUSPENSION GENERAL SPECIFICATION
| Model | Sedan | Wagon | |||||
|---|---|---|---|---|---|---|---|
| 2.5 i | 2.5 GT | OUTBACK | 2.5 i | 2.5 GT | OUTBACK | ||
| Wheel arch height [Tolerance: +12 mm-24 mm (+0 47 in-0 94 in )] | mm (in) | 365 (14.4) | 438 (17.2) | 375 (14.8) | 438 (17.2) | ||
| Camber (Tolerance: +/-°45' Differences between RH and LH: 45' or less) | -0°40' | -0°10' | -0°30' | 0°00' | |||

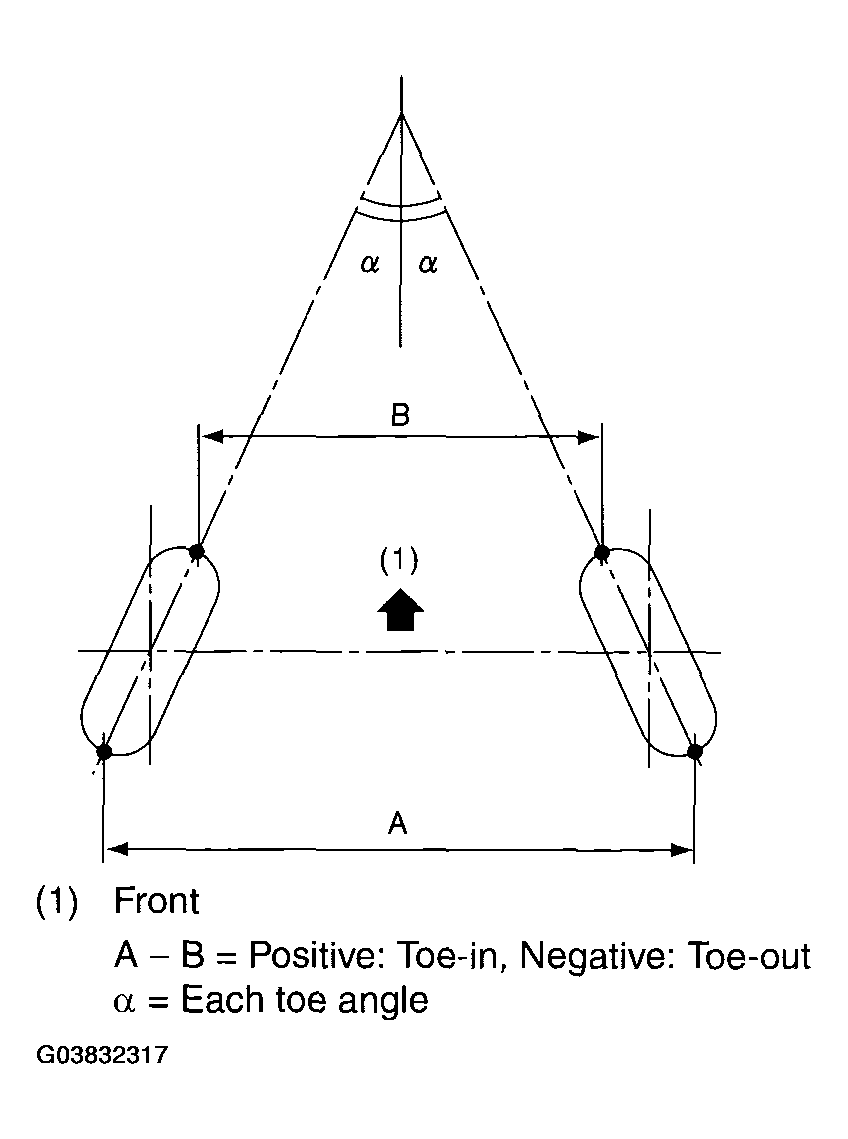

| Toe-in | mm (in) | 0+/-3 (0+/-0.12) Toe angle (sum of both wheels): 0°+/-0°15' | |||||
| Thrust angle (tolerance: +0°30') | 0° | ||||||
| Diameter of stabilizer | mm (in) | 15 (0.59) | 16 (0.63) | 15 (0.59) | 15 (0.59) | 16 (0.63) | 15 (0.59) |
NOTE:
- Front and rear toe-ins and front camber can be adjusted. If the toe-in or camber tolerance exceeds specifications, adjust it.
- Other items indicated in the specification table cannot be adjusted. If other items exceed specifications, check suspension parts and connections for deformation, and replace with new ones as required.
