Rear Sub Frame: Installation

  1. Install in the reverse order of removal.
  2. Follow the procedure below for the rear differential installation and tightening torque.

    T-type

    < Ref. to INSTALLATION , Rear Differential (T-type). >

    VA-type

    < Ref. to INSTALLATION , Rear Differential (VA-type). >

  3. Using a transmission jack, support the rear arm horizontally. Then tighten the nuts and bolts which hold the rear arm, front link, rear link, upper link and shock absorber.

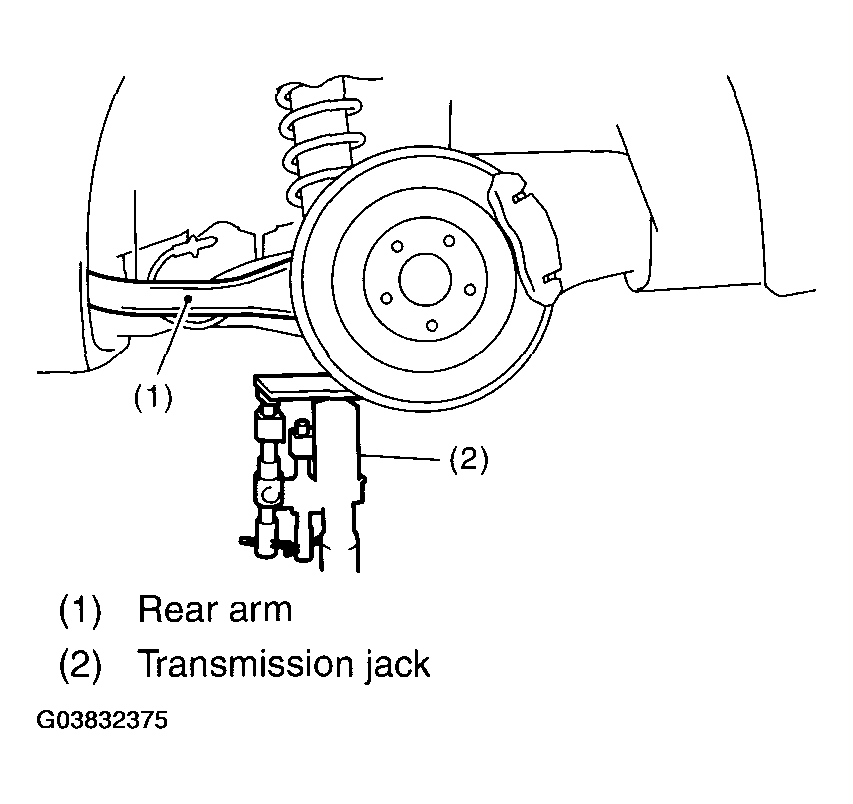

Fig 1: Supporting Rear Arm Horizontally
G03832375Courtesy of SUBARU OF AMERICA, INC.
NOTE: Check the wheel alignment and adjust it if necessary.
