Sub Frame Support Plate: Removal

  1. Lift-up the vehicle, and support the rear sub frame with support stand.
  2. Remove the sub frame support plate.

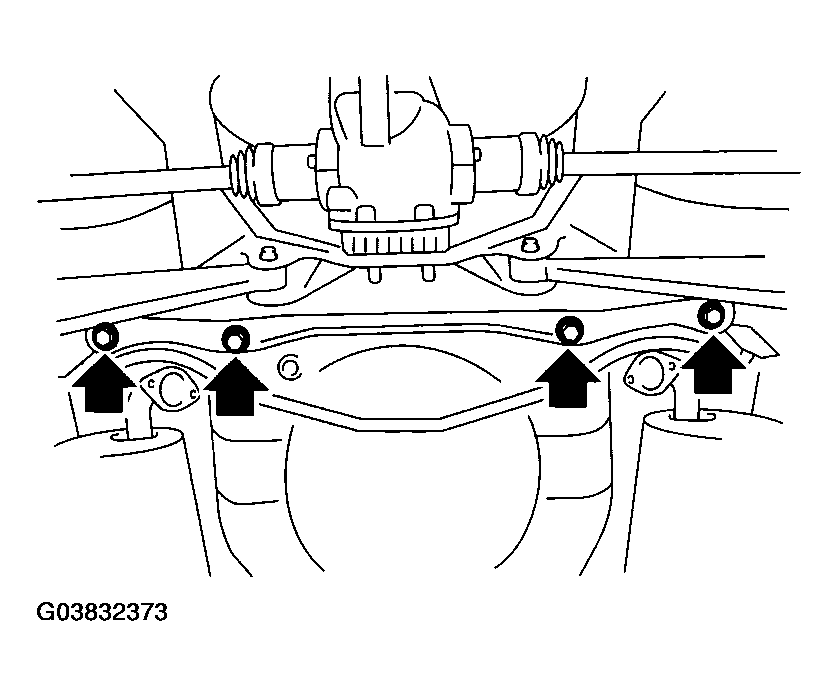

Fig 1: Removing Sub Frame Support Plate
G03832373Courtesy of SUBARU OF AMERICA, INC.
