Front Differential Assembly: Installation

  1. When installing the differential assembly to case, be careful not to damage the inside of case (particularly, the differential side retainer mating surface).

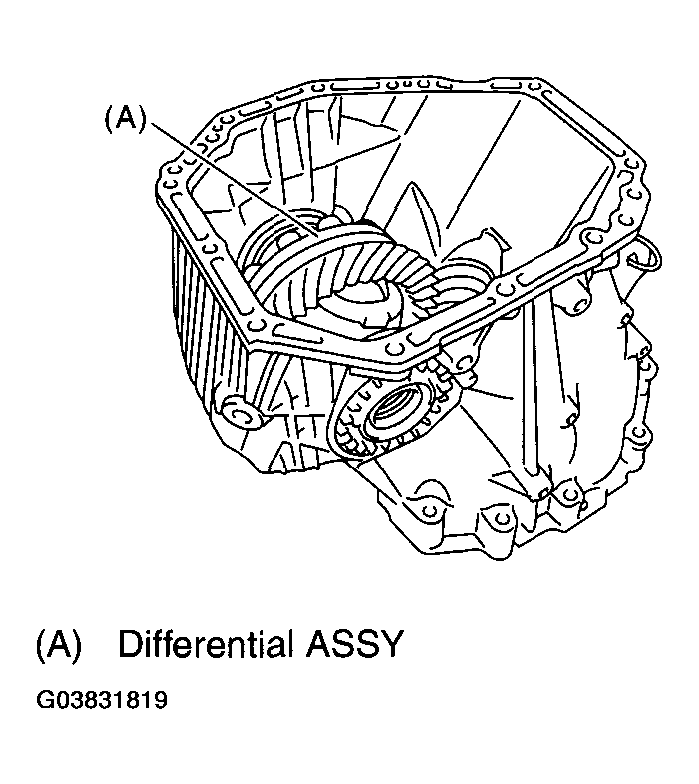

    Fig 1: Installing Differential Assembly To Case
    G03831819Courtesy of SUBARU OF AMERICA, INC.
  2. Install the O-ring to left and right side retainer.
  3. Install the side retainers using ST. < Ref. to , REMOVAL , Front Differential Assembly. >

    ST 18630AA010 WRENCH COMPL RETAINER

  4. Adjust the front differential backlash. < Ref. to , ADJUSTMENT , Front Differential Assembly. >
  5. Install the lock plate.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18 ft-lb)

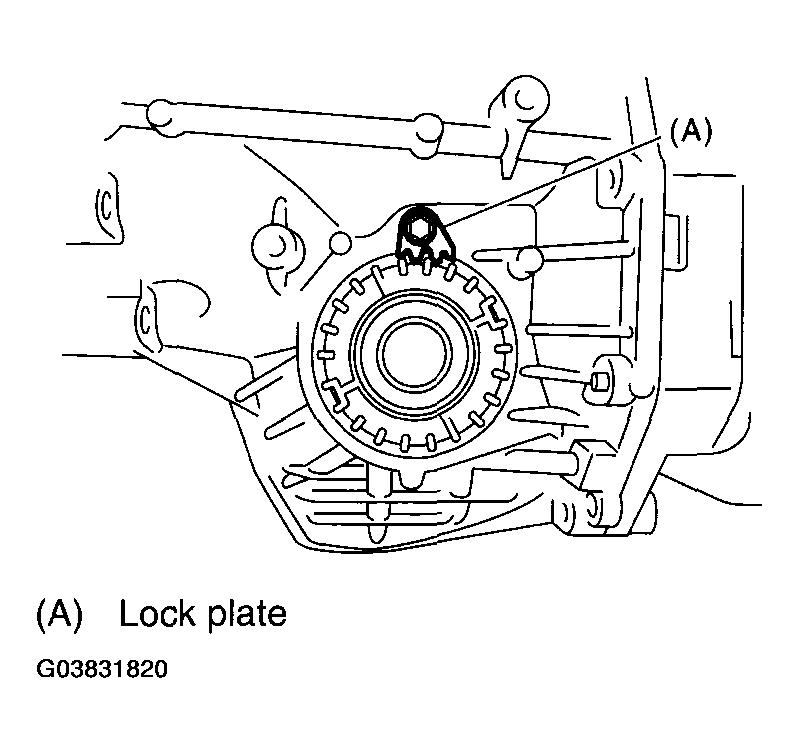

    Fig 2: Installing Lock Plate
    G03831820Courtesy of SUBARU OF AMERICA, INC.
  6. Install the converter case to transmission case. < Ref. to , INSTALLATION , Converter Case. >
  7. Install the transmission harness connector to the stay.
  8. Install the ATF filter pipe. < Ref. to , INSTALLATION , ATF Filter. >
  9. Install the oil charge pipe with a O-ring. < Ref. to , INSTALLATION , Oil Charge Pipe. >
  10. Install the torque converter assembly. < Ref. to , INSTALLATION , Torque Converter Assembly. >
  11. Install the transmission assembly into vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
