Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the lower cover and then disconnect the connector.
  3. Disconnect the connector from TCM.

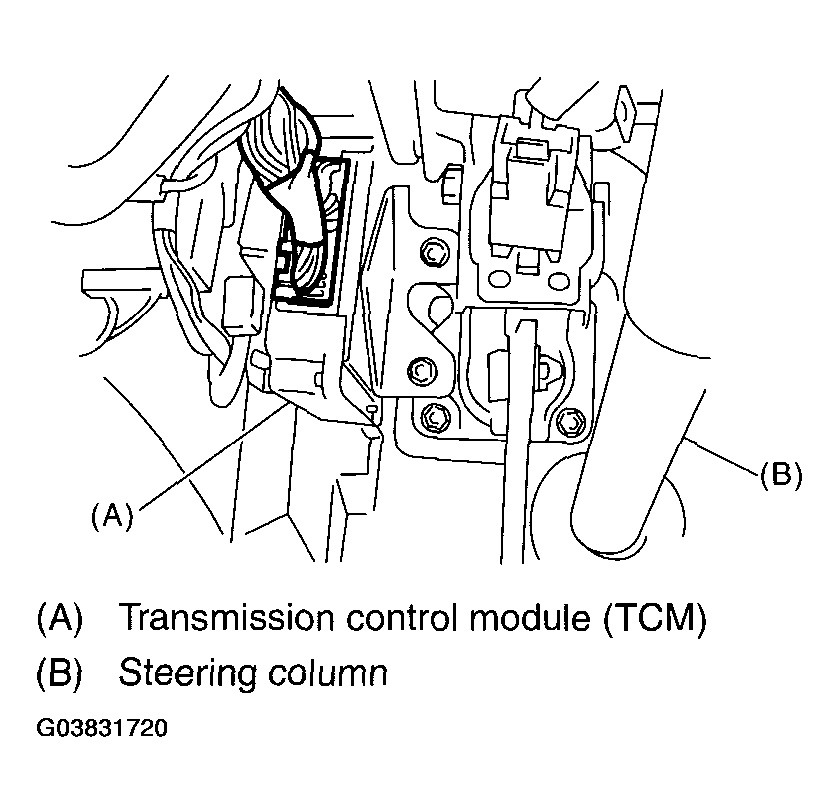

    Fig 1: Disconnecting Connector From TCM
    G03831720Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the relay from TCM body.
  5. Remove the TCM.
